VE24 Series

Catalog

VARISTOR 120V 6.5KA DISC 24MM

Part	Mounting Type	Varistor Voltage (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Maximum DC Volts [Max]	Varistor Voltage (Typ)	Number of Circuits	Package / Case	Package / Case	Energy	Maximum AC Volts [Max]	Capacitance @ Frequency	Varistor Voltage (Max)	Varistor Voltage (Max) [Max]	Current - Surge
KYOCERA AVX VE24M00750K--	Through Hole	108 V	125 °C	-40 °C	100 V	120 V	1	Disc	24 mm	30 J	75 V	4200 pF

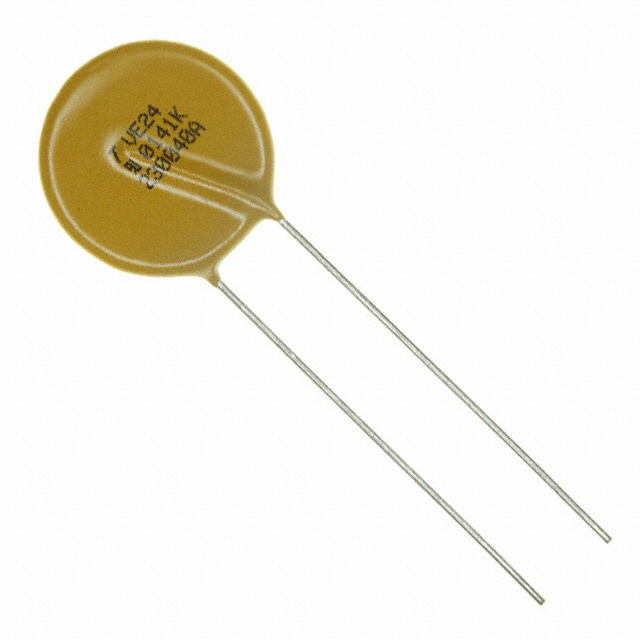

KYOCERA AVX VE24M00141K	Through Hole	198 V	125 °C	-40 °C	180 V	220 V	1	Disc	24 mm	50 J	140 V	1 kHz 2250 pF	242 V
KYOCERA AVX VE24M00511K--	Through Hole	738 V	125 °C	-40 °C	670 V	820 V	1	Disc	24 mm	150 J	510 V	1 kHz 550 pF		902 V
KYOCERA AVX VE24P00301K	Through Hole	423 V	125 °C	-40 °C	385 V	470 V	1	Disc	24 mm	340 J	300 V	1000 pF		517 V	10000 A
KYOCERA AVX VE24P00461K--	Through Hole	675 V	125 °C	-40 °C	615 V	750 V	1	Disc	24 mm	420 J	460 V	600 pF		825 V	8 kA
KYOCERA AVX VE24M05750K--	Through Hole	819 V	125 °C	-40 °C	730 V	910 V	1	Disc	24 mm	160 J	575 V	1 kHz 450 pF		1.001 kV
KYOCERA AVX VE24P00251K	Through Hole	351 V	125 °C	-40 °C	320 V	390 V	1	Disc	24 mm	280 J	250 V	1 kHz 1300 pF		429 V	10000 A

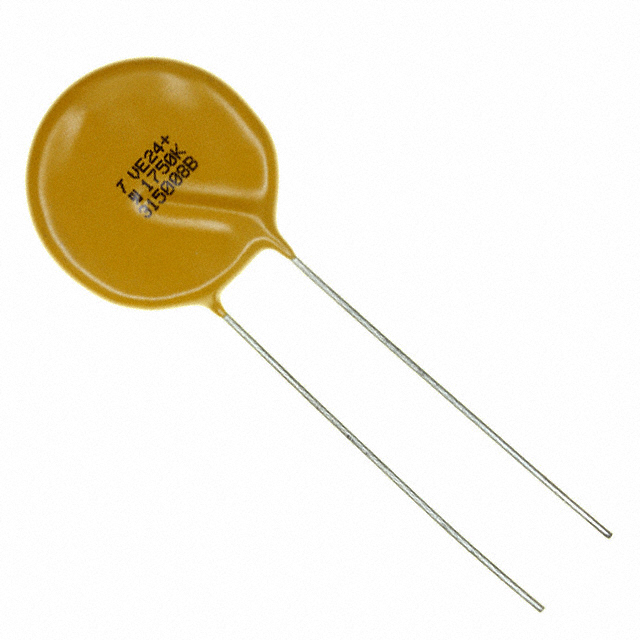

KYOCERA AVX VE24P01750K	Through Hole	243 V	125 °C	-40 °C	225 V	270 V	1	Disc	24 mm	190 J	175 V	1 kHz 2000 pF		297 V	10000 A
KYOCERA AVX VE24M00151K	Through Hole	216 V	125 °C	-40 °C	200 V	240 V	1	Disc	24 mm	56 J	150 V	1 kHz 2000 pF		264 V
KYOCERA AVX VE24P00231K	Through Hole	324 V	125 °C	-40 °C	300 V	360 V	1	Disc	24 mm	250 J	230 V	1 kHz 1500 pF		396 V	10000 A
