8337 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K

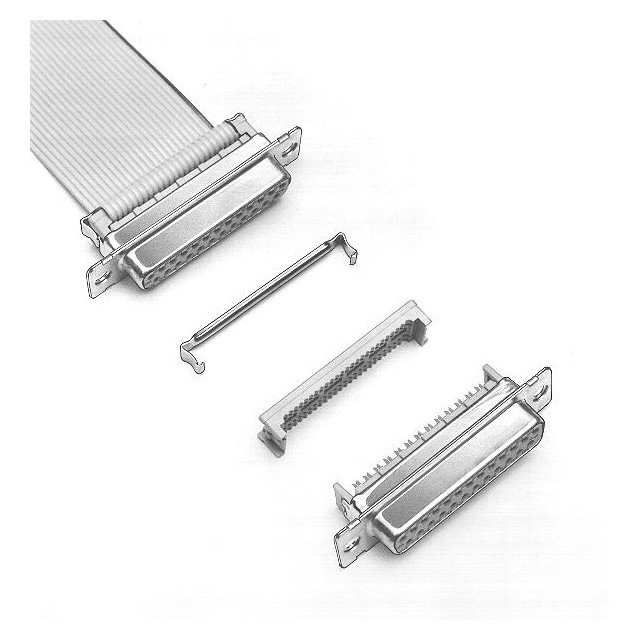

CONN D-SUB RCPT 37P PNL MNT IDC
| Part | Dielectric Material | Color | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Features | Number of Rows [custom] | Contact Type | Contact Finish | Flange Feature | Material Flammability Rating | Connector Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout | Shell Size, Connector Layout | Mounting Type | Connector Style | Primary Material | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Gray | Copper Alloy | -55 C | 105 ░C | 37 | Feed Through | 2 | Signal | Gold | Housing/Shell (Unthreaded) | UL94 V-0 | Receptacle Female Sockets | IDC Ribbon Cable | 30 Áin | 0.76 Ám | 4 | DC C | Panel Mount | D-Sub | ||
 3M Electronic Specialty | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Gray | Copper Alloy | -55 C | 105 ░C | 37 | Feed Through | 2 | Signal | Gold | Housing/Shell (Unthreaded) | UL94 V-0 | Receptacle Female Sockets | IDC Ribbon Cable | 30 Áin | 0.76 Ám | 4 | DC C | Panel Mount | D-Sub | Metal | |
 3M Electronic Specialty | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Gray | Copper Alloy | -55 C | 105 ░C | 37 | 2 | Signal | Gold | Housing/Shell | UL94 V-0 | Receptacle Female Sockets | IDC Ribbon Cable | 30 Áin | 0.76 Ám | 4 | DC C | Panel Mount | D-Sub | 4-40 | ||
 3M Electronic Specialty | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Gray | Copper Alloy | -55 C | 105 ░C | 37 | Feed Through | 2 | Signal | Gold | Housing/Shell | UL94 V-0 | Receptacle Female Sockets | IDC Ribbon Cable | 30 Áin | 0.76 Ám | 4 | DC C | Panel Mount | D-Sub | 4-40 | |
 3M Electronic Specialty | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Gray | Copper Alloy | -55 C | 105 ░C | 37 | Feed Through | 2 | Signal | Gold | Housing/Shell (Unthreaded) | UL94 V-0 | Receptacle Female Sockets | IDC Ribbon Cable | 30 Áin | 0.76 Ám | 4 | DC C | Panel Mount | D-Sub | ||
 3M Electronic Specialty | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Gray | Copper Alloy | -55 C | 105 ░C | 37 | Feed Through | 2 | Signal | Gold | Housing/Shell (Unthreaded) | UL94 V-0 | Receptacle Female Sockets | IDC Ribbon Cable | 30 Áin | 0.76 Ám | 4 | DC C | Panel Mount | D-Sub |
