794130 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

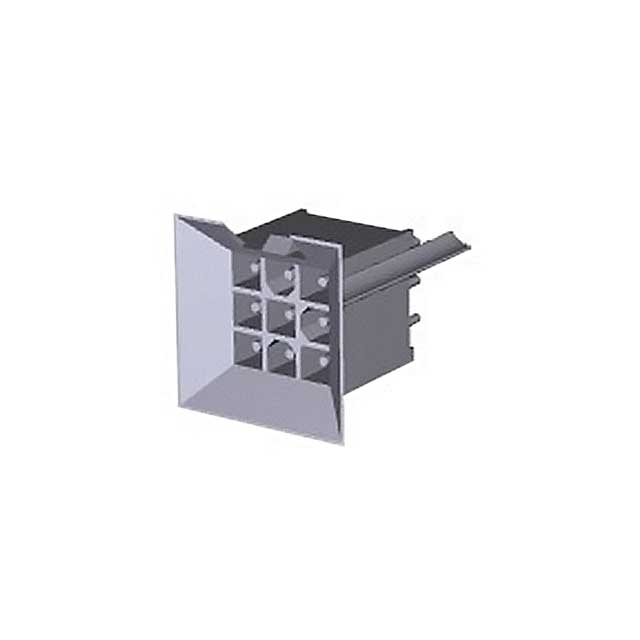

CONN HEADER VERT 9POS 4.14MM
| Part | Applications | Contact Type | Connector Type | Features | Material Flammability Rating | Contact Finish - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Mounting Type | Number of Positions | Style | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Material | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Termination | Shrouding | Current Rating (Amps) | Contact Finish - Post | Number of Rows [custom] | Number of Positions Loaded | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | General Purpose | Male Pin | Header | Board Guide | UL94 V-0 | Gold | 4.14 mm | 0.163 in | Through Hole | 9 | Board to Cable/Wire | 0.163 in | 4.14 mm | 0.76 Ám | 30 Áin | Nylon Polyamide (PA) | White | -55 C | 105 ░C | Locking Ramp | Solder | Shrouded - 4 Wall | 9.5 A | Tin | 3 | All | Circular |
