091 Series

Catalog

LINE FILTER 250VAC 3A CHASSIS

Part	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated AC (Phase to Phase)	Current	Filter Type	Termination Style	Frequency - Operating [Max]	Frequency - Operating [Min]	Applications	Voltage - Rated AC	Approval Agency	Mounting Type
Astrodyne TDI 091.00301.00	Single Stage	85 °C	-25 °C	1.45 kV	3 A	Single Phase	IEC 320-C14 Quick Connect	60 Hz	50 Hz	General Purpose	250 V	CE cURus SEMKO	Chassis Mount
Astrodyne TDI 091.04001.00	Single Stage	85 °C	-25 °C	1.45 kV	40 A	Single Phase	Quick Connect	60 Hz	50 Hz	General Purpose	250 V	CE cURus SEMKO	Chassis Mount
Astrodyne TDI 091.02501.00	Single Stage	85 °C	-25 °C	1.45 kV	25 A	Single Phase	IEC 320-C20 Quick Connect	60 Hz	50 Hz	General Purpose	250 V	CE cURus SEMKO	Chassis Mount
Astrodyne TDI 091.00601.00	Single Stage	85 °C	-25 °C	1.45 kV	6 A	Single Phase	IEC 320-C14 Quick Connect	60 Hz	50 Hz	General Purpose	250 V	CE cURus SEMKO	Chassis Mount
Astrodyne TDI 091.01501.00	Single Stage	85 °C	-25 °C	1.45 kV	15 A	Single Phase	IEC 320-C14 Quick Connect	60 Hz	50 Hz	General Purpose	250 V	CE cURus SEMKO	Chassis Mount
Astrodyne TDI 091.03001.00	Single Stage	85 °C	-25 °C	1.45 kV	30 A	Single Phase	IEC 320-C20 Quick Connect	60 Hz	50 Hz	General Purpose	250 V	CE cURus SEMKO	Chassis Mount

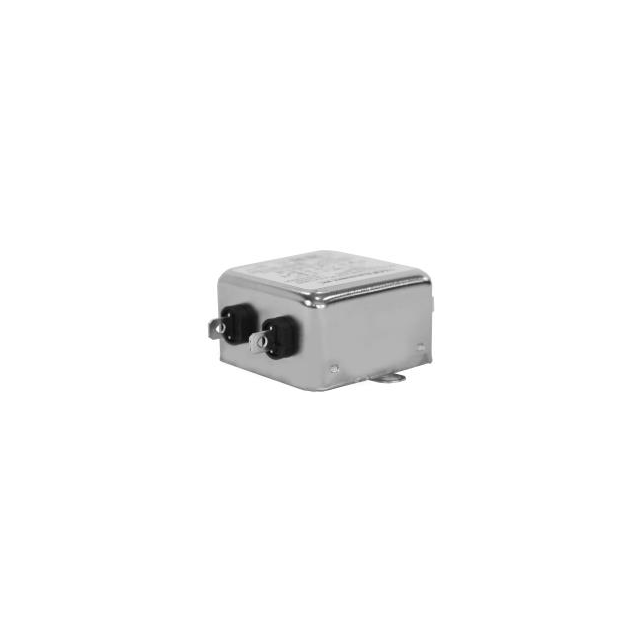

Astrodyne TDI 091.00101.00	Single Stage	85 °C	-25 °C	1.45 kV	1 A	Single Phase	IEC 320-C14 Quick Connect	60 Hz	50 Hz	General Purpose	250 V	CE cURus SEMKO	Chassis Mount
Astrodyne TDI 091.02001.00	Single Stage	85 °C	-25 °C	1.45 kV	20 A	Single Phase	IEC 320-C20 Quick Connect	60 Hz	50 Hz	General Purpose	250 V	CE cURus SEMKO	Chassis Mount
Astrodyne TDI 091.01001.00	Single Stage	85 °C	-25 °C	1.45 kV	10 A	Single Phase	IEC 320-C14 Quick Connect	60 Hz	50 Hz	General Purpose	250 V	CE cURus SEMKO	Chassis Mount
