GST40A15 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

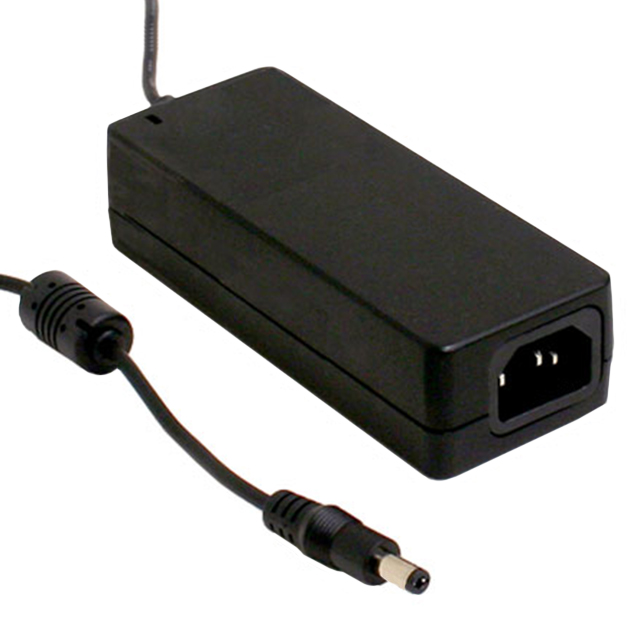

AC/DC DESKTOP ADAPTER 15V 40W
| Part | Power (Watts) | Voltage - Output | Applications | Region Utilized | Output Connector [x] | Output Connector [diameter] | Output Connector | No Load Power Consumption | Current - Output (Max) [Max] | Cord Length | Cord Length | Polarization | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Approval Agency | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Input Connector | Input Type | Voltage - Input [Max] | Voltage - Input [Min] | Form |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 40 W | 15 V | ITE (Commercial) | International | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | 75 mW | 2.67 A | 1 m | 39.4 in | Positive Center | -30 ░C | 70 °C | Level VI | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM | 1.97 in | 1.24 " | 4.92 in | 50 mm | 125 mm | 31.5 mm | IEC 320-C14 | Cord (Sold Separately) | 264 VAC | 90 VAC | Desktop (Class I) |
