C3PES-2 Series

Catalog

IDC CABLE - CPC26S/AE26G/CCE26S

Part	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable	Pitch - Cable	Length [x]	Length [x]	Shielding	Cable Termination	Contact Finish	Usage	Number of Positions	Length	Length	Color	Length

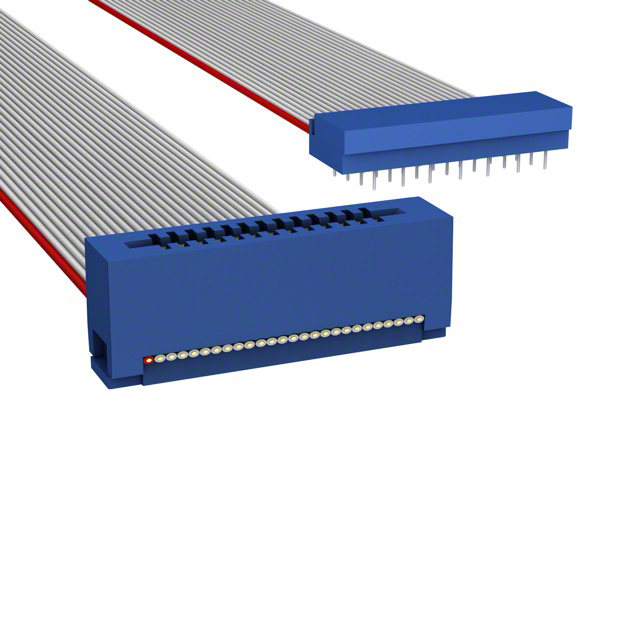

CW Industries C3PES-2618G	0.05 "	1.27 mm	2.54 µm	100 µin	0.05 in	1.27 mm	457.2 mm	1.5 ft	Unshielded	IDC	Tin	Board In	26
CW Industries C3PES-2636G	0.05 "	1.27 mm	2.54 µm	100 µin	0.05 in	1.27 mm			Unshielded	IDC	Tin	Board In	26	91.44 cm	3 ft

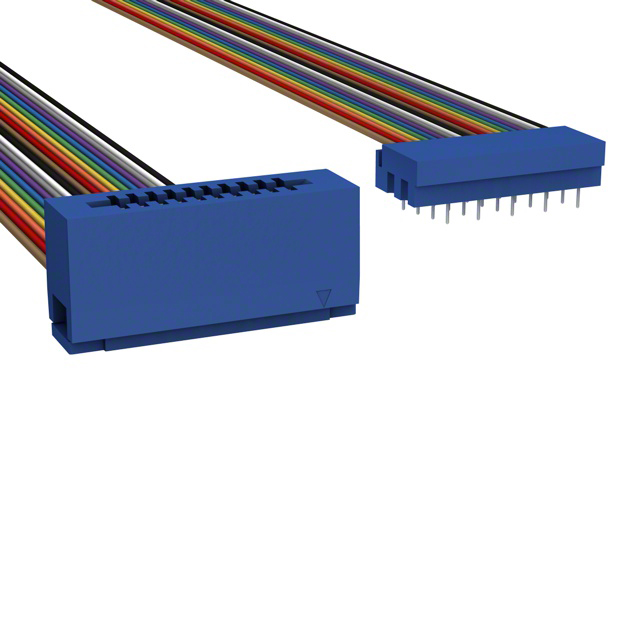

CW Industries C3PES-2036M	0.05 "	1.27 mm	2.54 µm	100 µin	0.05 in	1.27 mm			Unshielded	IDC	Tin	Board In	20	91.44 cm	3 ft	Multiple Ribbon

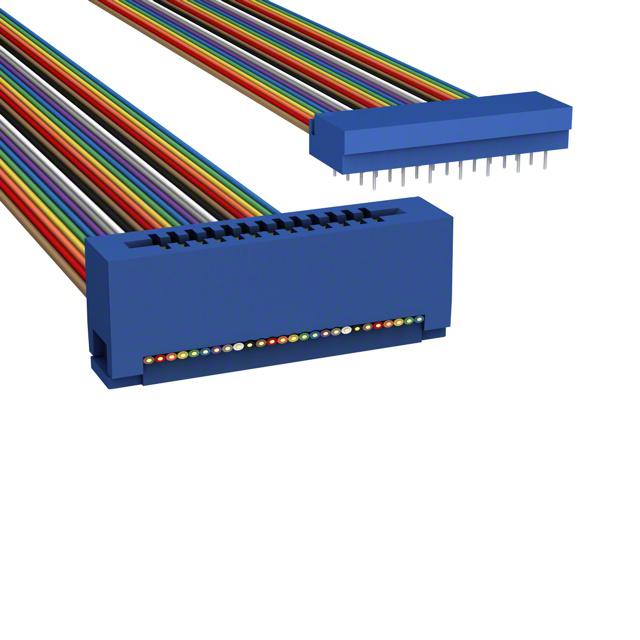

CW Industries C3PES-2606M	0.05 "	1.27 mm	2.54 µm	100 µin	0.05 in	1.27 mm			Unshielded	IDC	Tin	Board In	26	152.4 mm	0.5 '	Multiple Ribbon	6 "
CW Industries C3PES-2018M	0.05 "	1.27 mm	2.54 µm	100 µin	0.05 in	1.27 mm	457.2 mm	1.5 ft	Unshielded	IDC	Tin	Board In	20			Multiple Ribbon
CW Industries C3PES-2618M	0.05 "	1.27 mm	2.54 µm	100 µin	0.05 in	1.27 mm	457.2 mm	1.5 ft	Unshielded	IDC	Tin	Board In	26			Multiple Ribbon

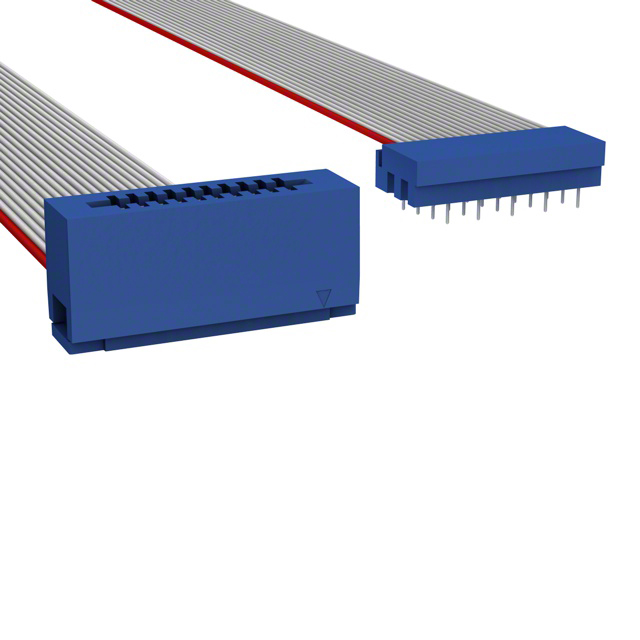

CW Industries C3PES-2006G	0.05 "	1.27 mm	2.54 µm	100 µin	0.05 in	1.27 mm			Unshielded	IDC	Tin	Board In	20	152.4 mm	0.5 '		6 "
CW Industries C3PES-2636M	0.05 "	1.27 mm	2.54 µm	100 µin	0.05 in	1.27 mm			Unshielded	IDC	Tin	Board In	26	91.44 cm	3 ft	Multiple Ribbon
CW Industries C3PES-2018G	0.05 "	1.27 mm	2.54 µm	100 µin	0.05 in	1.27 mm	457.2 mm	1.5 ft	Unshielded	IDC	Tin	Board In	20
