052746 Series

Manufacturer: Molex

Catalog

CONN FFC BOTTOM 9POS 0.5MM R/A

Part	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material	Voltage Rating	Mating Cycles	Locking Feature	Current Rating (Amps)	Flat Flex Type	Actuator Color	Termination	Housing Material	Connector/Contact Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Material	Cable End Type	Pitch [x]	Pitch [x]	Material Flammability Rating	Housing Color	Contact Finish	Height Above Board	Height Above Board	FFC, FCB Thickness	Number of Positions	Features	Number of Positions
Molex 0527460933	85 °C	-40 °C	Polyphenylene Sulfide (PPS) Glass Filled	50 V	20	Slide Lock	0.5 A	FFC FPC	Brown	Solder	Polyamide (PA) Nylon Glass Filled	Contacts Bottom	39.4 Áin	1 Ám	Surface Mount Right Angle	Phosphor Bronze	Straight Tapered	0.5 mm	0.02 in	UL94 V-0	White	Tin Bismuth	0.079 in	2 mm	0.3 mm	9	Solder Retention Zero Insertion Force (ZIF)

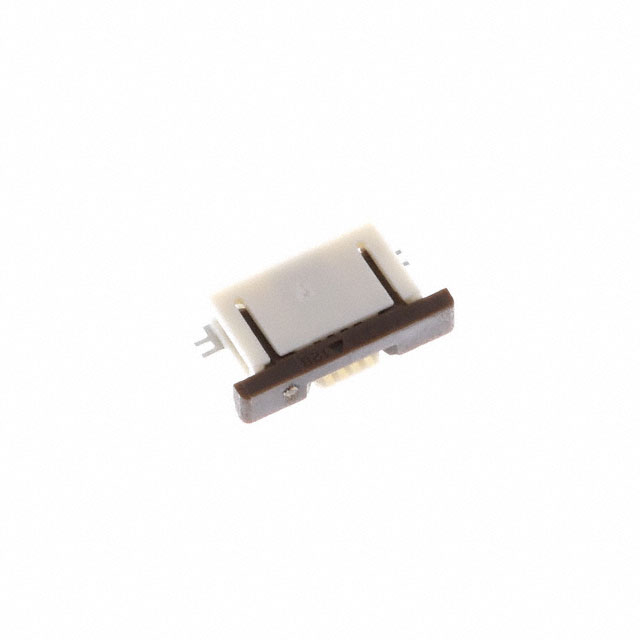

Molex 0527460471	85 °C	-20 C	Polyphenylene Sulfide (PPS) Glass Filled	50 V	20	Slide Lock	0.5 A	FFC FPC	Brown	Solder	Glass Filled Nylon 4/6 Polyamide (PA46)	Contacts Bottom			Surface Mount Right Angle	Phosphor Bronze	Straight Tapered	0.5 mm	0.02 in	UL94 V-0	White	Gold	0.079 in	2 mm	0.3 mm	4	Solder Retention Zero Insertion Force (ZIF)
Molex 0527461090	85 °C	-20 C	Polyphenylene Sulfide (PPS)	50 V		Slide Lock	0.5 A	FFC FPC		Solder	Polyamide (PA46) Nylon 4/6	Contacts Bottom			Surface Mount Right Angle	Phosphor Bronze	Straight Tapered	0.5 mm	0.02 in	UL94 V-0		Tin	0.079 in	2 mm	0.3 mm	10	Solder Retention Zero Insertion Force (ZIF)
Molex 0527460970	85 °C	-20 C	Polyphenylene Sulfide (PPS)	50 V	20	Slide Lock	0.5 A	FFC FPC		Solder	Polyamide (PA46) Nylon 4/6	Contacts Bottom			Surface Mount Right Angle	Phosphor Bronze	Straight	0.5 mm	0.02 in	UL94 V-0		Tin Bismuth	0.079 in	2 mm	0.3 mm	9	Solder Retention Zero Insertion Force (ZIF)

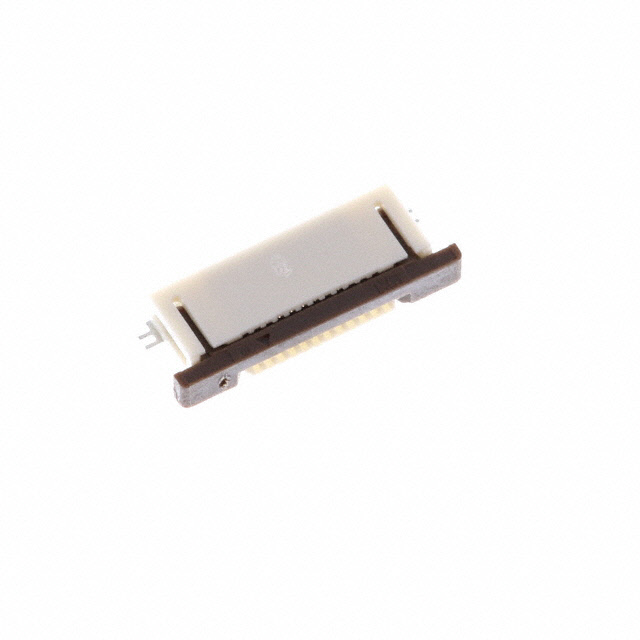

Molex 0527461271	85 °C	-20 C	Polyphenylene Sulfide (PPS) Glass Filled	50 V	20	Slide Lock	0.5 A	FFC FPC	Brown	Solder	Glass Filled Nylon 4/6 Polyamide (PA46)	Contacts Bottom			Surface Mount Right Angle	Phosphor Bronze	Straight Tapered	0.5 mm	0.02 in	UL94 V-0	White	Gold	0.079 in	2 mm	0.3 mm	12	Solder Retention Zero Insertion Force (ZIF)
Molex 0527461970	85 °C	-20 C	Polyphenylene Sulfide (PPS)	50 V	20	Slide Lock	0.5 A	FFC FPC		Solder	Polyamide (PA46) Nylon 4/6	Contacts Bottom			Surface Mount Right Angle	Phosphor Bronze	Straight	0.5 mm	0.02 in	UL94 V-0		Tin Bismuth	0.079 in	2 mm	0.3 mm	19	Solder Retention Zero Insertion Force (ZIF)
Molex 0527460890	85 °C	-20 C	Polyphenylene Sulfide (PPS)	50 V		Slide Lock	0.5 A	FFC FPC		Solder	Polyamide (PA46) Nylon 4/6	Contacts Bottom			Surface Mount Right Angle	Phosphor Bronze	Straight Tapered	0.5 mm	0.02 in	UL94 V-0		Tin	0.079 in	2 mm	0.3 mm	8	Solder Retention Zero Insertion Force (ZIF)
Molex 0527460470	85 °C	-20 C	Polyphenylene Sulfide (PPS)	50 V	20	Slide Lock	0.5 A	FFC FPC		Solder	Polyamide (PA46) Nylon 4/6	Contacts Bottom			Surface Mount Right Angle	Phosphor Bronze	Straight	0.5 mm	0.02 in	UL94 V-0		Tin Bismuth	0.079 in	2 mm	0.3 mm	4	Solder Retention Zero Insertion Force (ZIF)

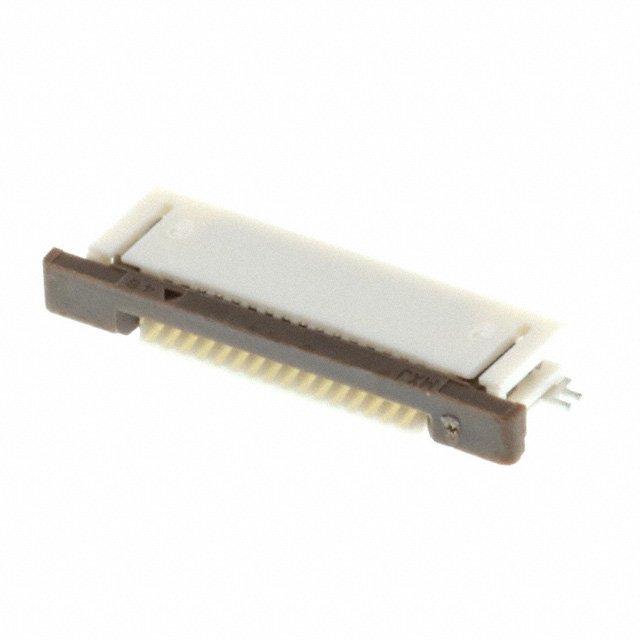

Molex 0527461633	85 °C	-40 °C	Polyphenylene Sulfide (PPS) Glass Filled	50 V	20	Slide Lock	0.5 A	FFC FPC	Brown	Solder	Polyamide (PA) Nylon Glass Filled	Contacts Bottom	39.4 Áin	1 Ám	Surface Mount Right Angle	Phosphor Bronze	Straight Tapered	0.5 mm	0.02 in	UL94 V-0	White	Tin Bismuth	0.079 in	2 mm	0.3 mm		Solder Retention Zero Insertion Force (ZIF)	16
Molex 0527461770	85 °C	-20 C	Polyphenylene Sulfide (PPS)	50 V	20	Slide Lock	0.5 A	FFC FPC		Solder	Polyamide (PA46) Nylon 4/6	Contacts Bottom			Surface Mount Right Angle	Phosphor Bronze	Straight	0.5 mm	0.02 in	UL94 V-0		Tin Bismuth	0.079 in	2 mm	0.3 mm		Solder Retention Zero Insertion Force (ZIF)
