845-042 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 42POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Gender | Number of Positions | Mounting Type | Contact Material | Read Out | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions/Bay/Row [custom] | Card Type | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Color | Pitch | Pitch | Contact Finish | Termination | Number of Rows [custom] | Card Thickness [Max] | Card Thickness [Min] | Termination Rows | Number of Rows | Number of Positions/Bay/Row |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 42 | Through Hole | Copper Alloy | Dual | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 21 | Non Specified - Dual Edge | Cantilever | 125 °C | -40 C | Green | 0.1 " | 2.54 mm | Gold | Solder | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||

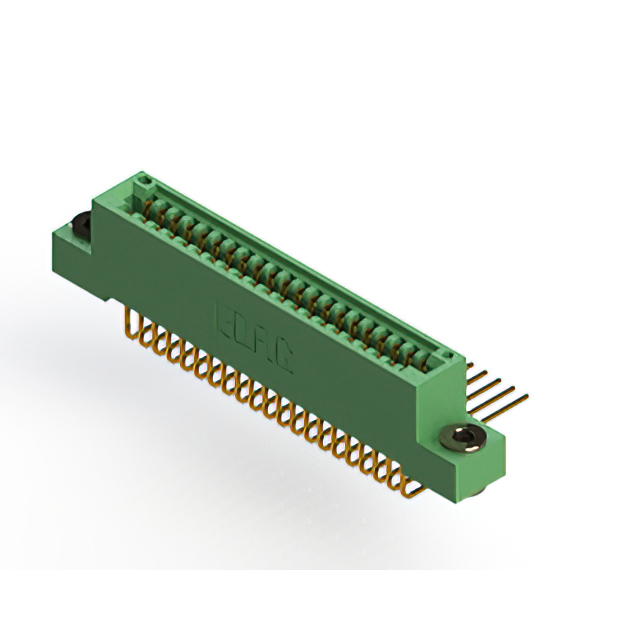

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 42 | Right Angle Through Hole | Copper Alloy | Dual | 0.25 Ám | 10 Áin | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 21 | Non Specified - Dual Edge | Cantilever | 125 °C | -40 C | Green | 0.1 " | 2.54 mm | Gold | Solder | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 42 | Through Hole | Copper Alloy | Dual | 0.25 Ám | 10 Áin | 4-40 Flush Mount Threaded Insert Top Opening | 21 | Non Specified - Dual Edge | Cantilever | 125 °C | -40 C | Green | 0.1 " | 2.54 mm | Gold | Solder | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Female | 42 | Through Hole | Copper Alloy | Single | 0.25 Ám | 10 Áin | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | Cantilever | 125 °C | -40 C | Green | 0.1 " | 2.54 mm | Gold | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 1 | 42 | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Female | 42 | Through Hole | Copper Alloy | Single | 0.25 Ám | 10 Áin | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | Cantilever | 125 °C | -40 C | Green | 0.1 " | 2.54 mm | Gold | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 1 | 42 | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Female | 42 | Through Hole | Copper Alloy | Single | 0.25 Ám | 10 Áin | 0.156 " | 3.96 mm | Non Specified - Single Edge | Cantilever | 125 °C | -40 C | Green | 0.1 " | 2.54 mm | Gold | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 1 | 42 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Female | 42 | Through Hole | Copper Alloy | Single | 0.25 Ám | 10 Áin | 0.156 " | 3.96 mm | Non Specified - Single Edge | Cantilever | 125 °C | -40 C | Green | 0.1 " | 2.54 mm | Gold | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 1 | 42 | ||||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 42 | Through Hole | Copper Alloy | Dual | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 21 | Non Specified - Dual Edge | Cantilever | 125 °C | -40 C | Green | 0.1 " | 2.54 mm | Gold | Wire Wrap | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | Female | 42 | Through Hole | Copper Alloy | Single | 0.25 Ám | 10 Áin | 0.156 " | 3.96 mm | Non Specified - Single Edge | Cantilever | 125 °C | -40 C | Green | 0.1 " | 2.54 mm | Gold | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 1 | 42 | ||||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 42 | Through Hole | Copper Alloy | Dual | 0.25 Ám | 10 Áin | 21 | Non Specified - Dual Edge | Cantilever | 125 °C | -40 C | Green | 0.1 " | 2.54 mm | Gold | Wire Wrap | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
