174912 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

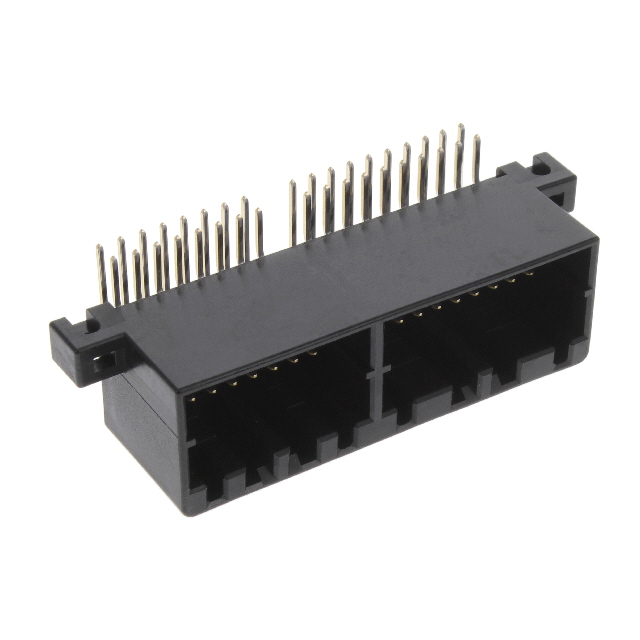

CONN HEADER R/A 36POS 2.5MM
| Part | Number of Positions | Mounting Type | Style | Contact Length - Post [x] | Contact Length - Post [x] | Contact Material | Row Spacing - Mating [x] | Row Spacing - Mating | Fastening Type | Contact Type | Shrouding | Termination | Applications | Features | Number of Positions Loaded | Insulation Material | Insulation Height | Insulation Height | Contact Finish - Mating | Current Rating (Amps) | Number of Rows | Pitch - Mating | Pitch - Mating | Insulation Color | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 36 | Through Hole Right Angle | Board to Cable/Wire | 0.134 in | 3.4 mm | Brass | 0.205 in | 5.2 mm | Latch Holder | Tab | Shrouded - 4 Wall | Solder | Automotive General Purpose | Mounting Flange | All | Polybutylene Terephthalate (PBT) | 16.9 mm | 0.665 in | Gold | Varies by Wire Gauge | 2 | 2.5 mm | 0.098 in | Black | Rectangular | -30 ░C | 105 ░C |
