HCPL-6631 Series
Manufacturer: Broadcom Limited
Beta
⌘K

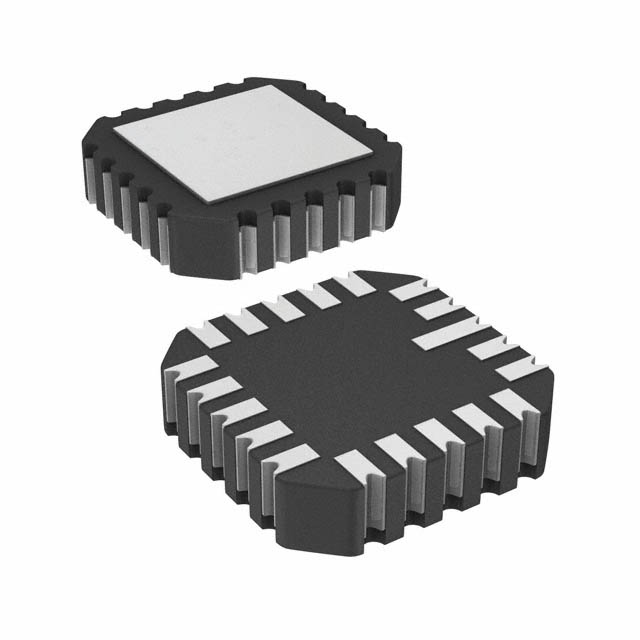

OPTOISO 1.5KV 2CH OPN COL 20LCCC
| Part | Voltage - Isolation | Rise / Fall Time (Typ) [custom] | Rise / Fall Time (Typ) [custom] | Current - Output / Channel | Input Type | Mounting Type | Propagation Delay tpLH / tpHL (Max) [Max] | Data Rate | Current - DC Forward (If) (Max) [Max] | Voltage - Forward (Vf) (Typ) | Output Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Supplier Device Package | Inputs - Side 1/Side 2 [custom] | Inputs - Side 1/Side 2 [custom] | Package / Case | Common Mode Transient Immunity (Min) [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Channels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 1.5 kV | 35 ns | 35 ns | 25 mA | DC | Surface Mount | 100 ns | 10 Mbps | 20 mA | 1.5 V | Open Collector Schottky Clamped | 5.5 V | 4.5 V | 20-LCCC (8.89x8.89) | 2 | 0 | 20-CLCC | 1 kV/µs | -55 C | 125 °C | 2 |
