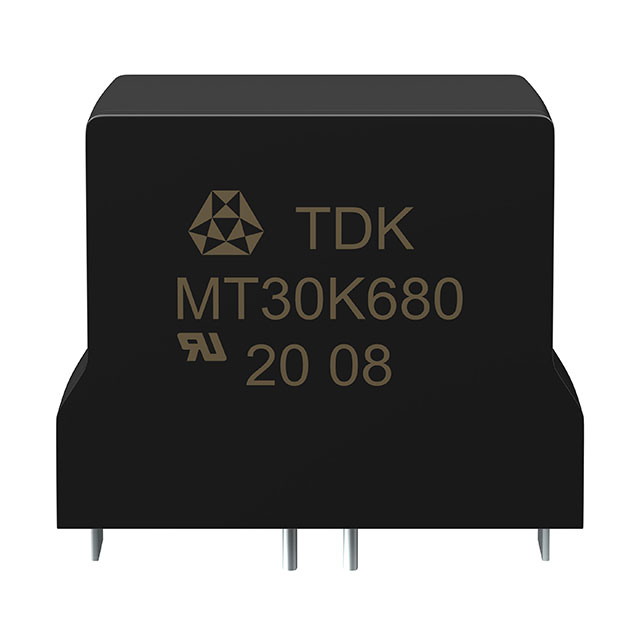

B72230M Series

Catalog

30MM, 550V, 25KA, THERMO FUSE TY

Part	Package / Case	Package / Case	Mounting Type	Varistor Voltage (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Varistor Voltage (Typ)	Capacitance @ Frequency	Number of Circuits	Features	Maximum DC Volts [Max]	Varistor Voltage (Max) [Max]	Energy	Maximum AC Volts [Max]	Maximum AC Volts	Maximum DC Volts
EPCOS - TDK Electronics B72230M0551M401	Box	4 Lead	Through Hole	819 V	85 °C	-40 °C	910 V	900 pF	1	Thermally Protected	750 V	1 kV	750 J	499 V
EPCOS - TDK Electronics B72230M0151M401	Box	4 Lead	Through Hole	228 V	85 °C	-40 °C	240 V	3250 pF	1	Thermally Protected	200 V	270 V	215 J	150 V
EPCOS - TDK Electronics B72230M0381M401	Box	4 Lead	Through Hole	558 V	85 °C	-40 °C	620 V	1250 pF	1	Thermally Protected	505 V		600 J		385 V
EPCOS - TDK Electronics B72230M0511M401	Box	4 Lead	Through Hole	738 V	85 °C	-40 °C	820 V		1	Thermally Protected		902 V	750 J	499 V		670 V
EPCOS - TDK Electronics B72230M0751M401	Box	4 Lead	Through Hole	1.08 kV	85 °C	-40 °C	1.2 kV	500 pF	1	Thermally Protected		1.32 kV	1025 J	750 V
EPCOS - TDK Electronics B72230M0321M401	Box	4 Lead	Through Hole	459 V	85 °C	-40 °C	510 V	1600 pF	1	Thermally Protected	420 V	561 V	445 J	320 V
EPCOS - TDK Electronics B72230M0681M401	Box	4 Lead	Through Hole	990 V	85 °C	-40 °C	1.1 kV		1	Thermally Protected	895 V	1.21 kV	940 J	680 V
