0368-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Length - Overall [x]	Length - Overall [x]	Tail Type	Contact Finish	Termination	Contact Finish Thickness	Contact Finish Thickness	Socket Depth	Socket Depth	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]
Mill-Max Manufacturing Corp. 0368-0-33-80-13-80-10-0	-55 C	125 °C	2.24 mm	0.088 "	1.22 mm	0.064 in	0.048 in	1.63 mm	0.531 in	13.5 mm	Crimp	Tin	Solder	200 Áin	5.08 Ám	4.57 mm	0.18 in	Beryllium Copper	3.58 mm	0.141 in
Mill-Max Manufacturing Corp. 0368-0-33-15-13-14-10-0	-55 C	125 °C	2.24 mm	0.088 "	1.22 mm	0.064 in	0.048 in	1.63 mm	0.531 in	13.5 mm	Crimp	Gold	Solder	10 Áin	0.25 Ám	4.57 mm	0.18 in	Beryllium Copper	3.58 mm	0.141 in

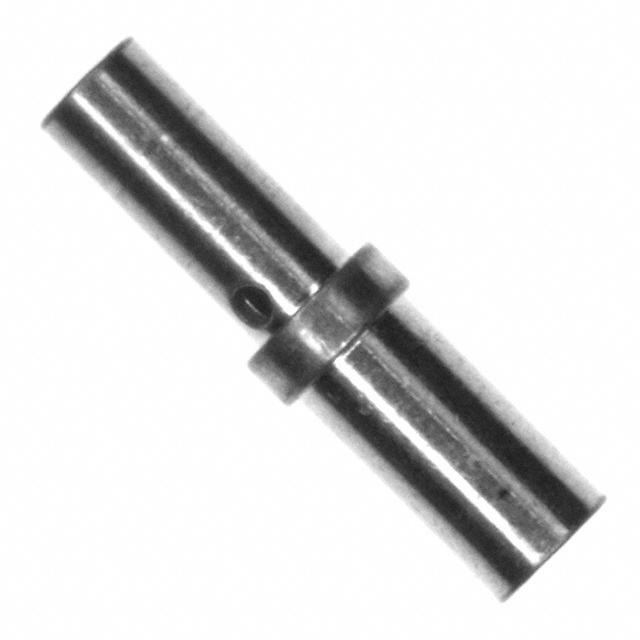

Mill-Max Manufacturing Corp. 0368-0-33-01-13-27-10-0	-55 C	125 °C	2.24 mm	0.088 "	1.22 mm	0.064 in	0.048 in	1.63 mm	0.531 in	13.5 mm	Crimp	Gold	Solder	30 Áin	0.76 Ám	4.57 mm	0.18 in	Beryllium Copper	3.58 mm	0.141 in
Mill-Max Manufacturing Corp. 0368-0-33-80-13-27-10-0	-55 C	125 °C	2.24 mm	0.088 "	1.22 mm	0.064 in	0.048 in	1.63 mm	0.531 in	13.5 mm	Crimp	Gold	Solder	30 Áin	0.76 Ám	4.57 mm	0.18 in	Beryllium Copper	3.58 mm	0.141 in
Mill-Max Manufacturing Corp. 0368-0-33-80-13-14-10-0	-55 C	125 °C	2.24 mm	0.088 "	1.22 mm	0.064 in	0.048 in	1.63 mm	0.531 in	13.5 mm	Crimp	Gold	Solder	10 Áin	0.25 Ám	4.57 mm	0.18 in	Beryllium Copper	3.58 mm	0.141 in
