LNJ406 Series

Catalog

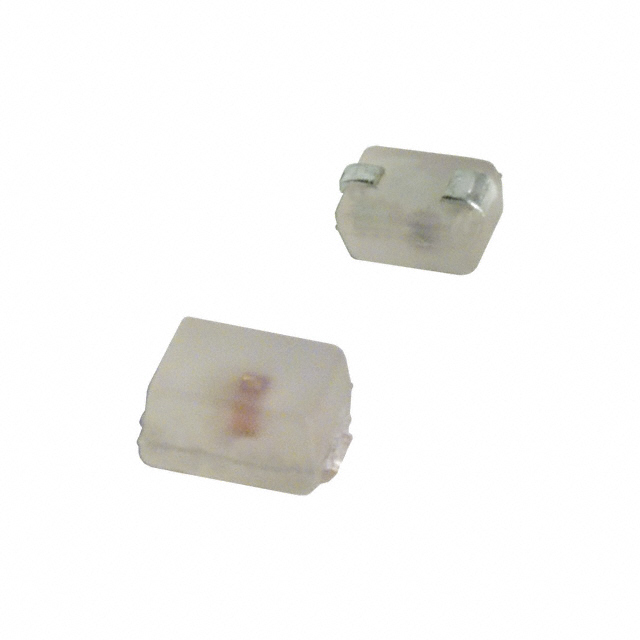

LED AMBER DIFF INGAAIP S-J SMD

Part	Millicandela Rating	Lens Size [y]	Lens Size [x]	Voltage - Forward (Vf) (Typ)	Package / Case	Mounting Type	Color	Wavelength - Peak	Lens Transparency	Current - Test	Lens Color	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Configuration	Height (Max) [Max] [z]	Lens Style
Panasonic Industrial Automation Sales LNJ406K54RX	8.5 mcd	1.25 mm	1.7 mm	2 V	0805	Surface Mount	Amber	595 nm	Diffused	10 mA	Yellow	InGaAIP S-J Type LED	1.25 mm	1.7 mm	Standard	1.1 mm	Rectangle with Flat Top
Panasonic Industrial Automation Sales LNJ406K5YUX	1 mcd	1.25 mm	1.7 mm	2 V	0805	Surface Mount	Amber	590 nm	Diffused	10 mA	Yellow		1.25 mm	1.7 mm	Standard	1.1 mm	Rectangle with Flat Top
