A Series

Catalog

TOGGLE SWITCHES SPDT ON-OFF-ON PCB

Part	Electrical Life	Actuator Material	Termination Style	Voltage Rating - AC	Voltage Rating - DC	Actuator Length [x]	Switch Function	Bushing Thread	Actuator Type	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Illumination	Circuit	Ingress Protection
Electroswitch A121T11TCQ	60000 Cycles	Brass Chrome Plated	PC Pin	125 V	28 V	11.89 mm	On-On	15/32-32	Standard Round	Epoxy Sealed Terminals	Panel Mount	-30 ░C	90 °C	6 A	Non-Illuminated	SPDT
Electroswitch A323M1D9CB	60000 Cycles	Brass Chrome Plated	PC Pin	28 V	28 V	5.08 mm	On-On	Unthreaded	Standard Round	Epoxy Sealed Terminals	Through Hole	-30 ░C	90 °C	0.5 VA	Non-Illuminated	3PDT
Electroswitch A121S1YCQ	60000 Cycles	Brass Chrome Plated	PC Pin	125 V	28 V	10.41 mm	On-On	1/4-40	Standard Round	Epoxy Sealed Terminals	Panel Mount	-30 ░C	90 °C	6 A	Non-Illuminated	SPDT
Electroswitch A433T1TZQ	60000 Cycles	Brass Chrome Plated	Solder Lug	125 V	28 V	17.45 mm	On-On-Mom	15/32-32	Standard Round	Jumper needed to achieve triple throw	Panel Mount	-30 ░C	90 °C	6 A	Non-Illuminated	DP3T

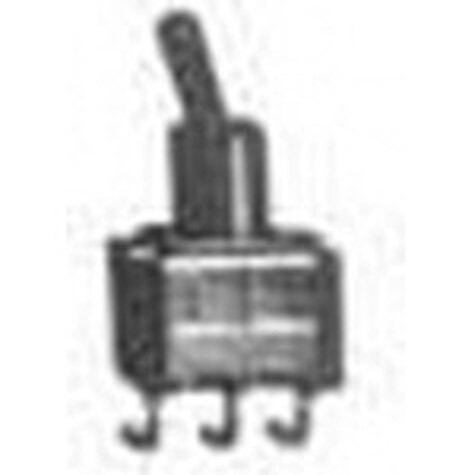

Electroswitch A123P31YW4Q	60000 Cycles	Brass Chrome Plated	Wire Wrap	125 V	28 V	11.38 mm	On-On	1/4-40	Flatted	Epoxy Sealed Terminals	Panel Mount	-30 ░C	90 °C	6 A	Non-Illuminated	SPDT
Electroswitch A233P41DCQ	60000 Cycles	Brass Chrome Plated	PC Pin	125 V	28 V	6.35 mm	On-On-Mom	1/4-40	Flatted	Jumper needed to achieve triple throw	Panel Mount	-30 ░C	90 °C	6 A	Non-Illuminated	SP3T
Electroswitch A126S1YCQ	60000 Cycles	Brass Chrome Plated	PC Pin	125 V	28 V	10.41 mm	On-Mom	1/4-40	Standard Round	Epoxy Sealed Terminals	Panel Mount	-30 ░C	90 °C	6 A	Non-Illuminated	SPDT
Electroswitch A423T1TWZB	60000 Cycles	Brass Chrome Plated	Solder Lug	28 V	28 V	17.45 mm	On-On	15/32-32	Standard Round	Epoxy Sealed Terminals	Panel Mount	-30 ░C	90 °C	0.5 VA	Non-Illuminated	4PDT	Splash Proof
Electroswitch A323L21D9CQ	60000 Cycles	Brass Chrome Plated	PC Pin	125 V	28 V	13.97 mm	On-On	Unthreaded	Standard Round	Epoxy Sealed Terminals	Through Hole	-30 ░C	90 °C	6 A	Non-Illuminated	3PDT
Electroswitch A123S1YZQ			Solder Lug	125 V	28 V	10.41 mm	On-On	1/4-40	Standard Round	Epoxy Sealed Terminals	Panel Mount	-30 ░C	90 °C	6 A	Non-Illuminated	SPDT
