EN3P14 Series

Catalog

CIRCULAR CONNECTOR, EN3 SERIES, PCB MOUNT RECEPTACLE, 14 CONTACTS, PCB PIN, BAYONET

Part	Primary Material	Orientation	Contact Finish - Mating	Current Rating (Amps)	Color	Voltage Rating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Mounting Feature	Fastening Type	Mounting Type	Insert Material	Applications	Shielding	Connector Type	Ingress Protection	Material Flammability Rating	Number of Positions

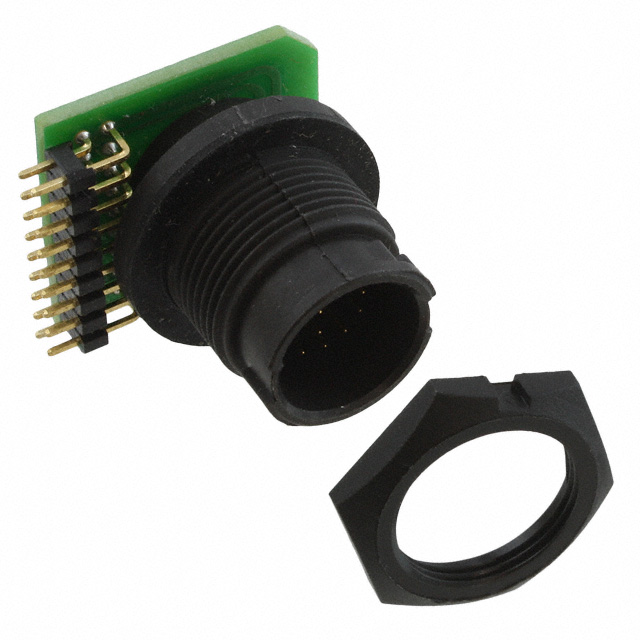

SWITCHCRAFT/CONXALL EN3P14MRAPCBN	Plastic	Keyed	Gold	2 A	Black	250 VAC	Copper Alloy	-40 C	65 °C	Circuit Board Solder	Bulkhead - Front Side Nut	Bayonet Lock	Panel Mount Right Angle Through Hole	Elastomer	General Purpose Instrumentation Marine Medical	Unshielded	Receptacle Male Pins	IP66 IP68	UL94 V-0	14
SWITCHCRAFT/CONXALL EN3P14MRAPCBW	Plastic	Keyed	Gold	2 A	Black	250 VAC	Copper Alloy	-40 C	65 °C	Circuit Board Solder	Bulkhead - Front Side Nut	Bayonet Lock	Panel Mount Right Angle Through Hole	Elastomer	General Purpose Instrumentation Marine Medical	Unshielded	Receptacle Male Pins	IP66 IP68	UL94 V-0	14
SWITCHCRAFT/CONXALL EN3P14M26PX	Plastic	Keyed	Gold	3 A	Black	250 VAC	Copper Alloy	-40 C	65 °C	Solder	Bulkhead - Front Side Nut	Bayonet Lock	Panel Mount Through Hole	Elastomer	General Purpose Instrumentation Marine Medical	Unshielded	Receptacle Male Pins	IP66 IP68	UL94 V-0	14
SWITCHCRAFT/CONXALL EN3P14F26SX	Plastic	Keyed	Gold	3 A	Black	250 VAC	Copper Alloy	-40 C	65 °C		Bulkhead - Front Side Nut	Bayonet Lock	Panel Mount	Elastomer	General Purpose Instrumentation Marine Medical	Unshielded	Receptacle Female Sockets	IP66 IP68	UL94 V-0	14

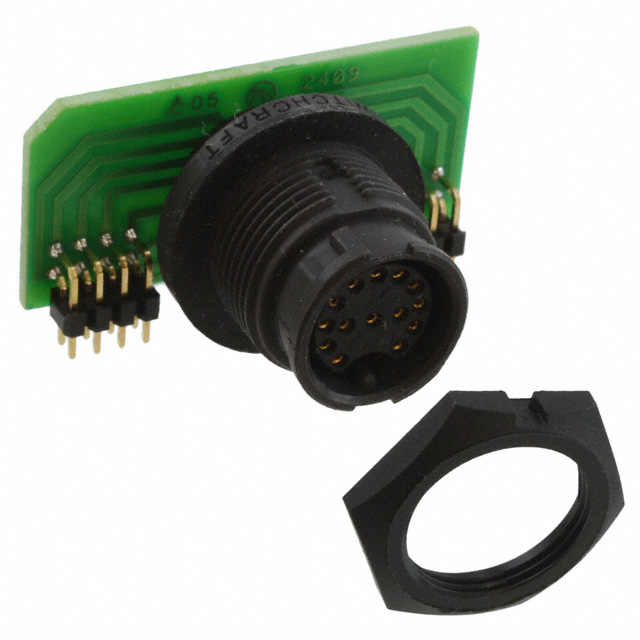

SWITCHCRAFT/CONXALL EN3P14FRAPCBW	Plastic	Keyed	Gold	2 A	Black	250 VAC	Copper Alloy	-40 C	65 °C	Circuit Board Solder	Bulkhead - Front Side Nut	Bayonet Lock	Panel Mount Right Angle Through Hole	Elastomer	General Purpose Instrumentation Marine Medical	Unshielded	Receptacle Female Sockets	IP66 IP68	UL94 V-0	14
SWITCHCRAFT/CONXALL EN3P14FRAPCBN	Plastic	Keyed	Gold	2 A	Black	250 VAC	Copper Alloy	-40 C	65 °C	Circuit Board Solder	Bulkhead - Front Side Nut	Bayonet Lock	Panel Mount Right Angle Through Hole	Elastomer	General Purpose Instrumentation Marine Medical	Unshielded	Receptacle Female Sockets	IP66 IP68	UL94 V-0	14
