TOP261 Series

Catalog

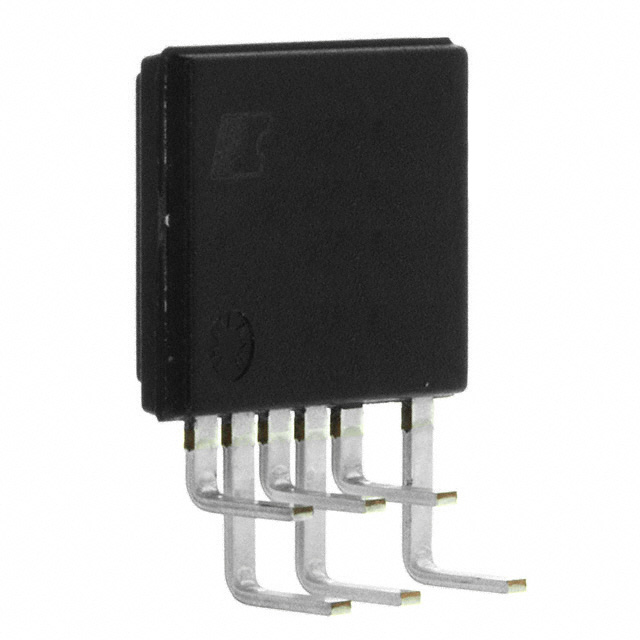

IC OFFLINE SWITCH FLYBACK 7FESIP

Part	Frequency - Switching	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Duty Cycle	Output Isolation	Power (Watts)	Package / Case	Topology	Supplier Device Package	Voltage - Breakdown	Fault Protection
POWER INTEGRATIONS TOP261LG	66 kHz 132 kHz	-40 °C	150 °C	Through Hole	78 %	Isolated	244 W	6 Leads 7-SSIP Exposed Pad Formed Leads	Flyback	eSIP-7F	700 V	Current Limiting Over Temperature Over Voltage
POWER INTEGRATIONS TOP261EN	66 kHz 132 kHz	-40 °C	150 °C	Through Hole	78 %	Isolated	333 W	6 Leads 7-SSIP Exposed Pad Formed Leads	Flyback	eSIP-7C	700 V	Current Limiting Over Temperature Over Voltage
POWER INTEGRATIONS TOP261EG	66 kHz 132 kHz	-40 °C	150 °C	Through Hole	78 %	Isolated	333 W	6 Leads 7-SSIP Exposed Pad Formed Leads	Flyback	eSIP-7C	700 V	Current Limiting Over Temperature Over Voltage
POWER INTEGRATIONS TOP261LN	66 kHz 132 kHz	-40 °C	150 °C	Through Hole	78 %	Isolated	244 W	6 Leads 7-SSIP Exposed Pad Formed Leads	Flyback	eSIP-7F	700 V	Current Limiting Over Temperature Over Voltage
