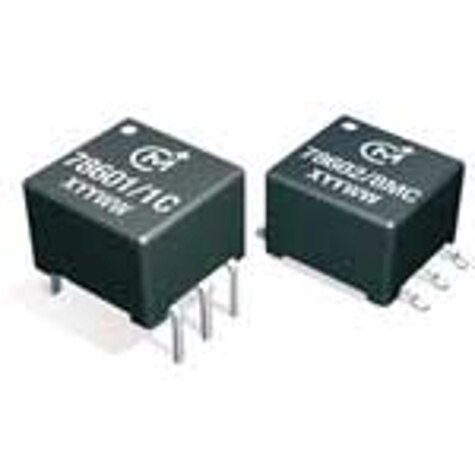

78601 Series

Catalog

PULSE TRANSFORMER 1:1 1000VRMS 1.3OHM PRIM. DCR 121PF 6 TERMINAL PIN THRU-HOLE

Part	Weight	Weight	Inductance	Mounting Type	Turns Ratio - Primary:Secondary	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	ET (Volt-Time)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Transformer Type
Murata Electronics 78601/9C	1.1 g	0.039 oz	10 mH	Through Hole	1:1	6.35 mm	0.25 in	70 °C	56 VµS	9.52 mm	9 mm	0.354 in	0.375 in	General Purpose
Murata Electronics 78601/8MC			1 mH	Surface Mount	1:1	6.35 mm	0.25 in	70 °C	15 VµS	9 mm	9.52 mm	0.375 in	0.354 in	General Purpose
Murata Electronics 78601/3MC-R			200 µH	Surface Mount	1:1	6.35 mm	0.25 in	70 °C	6 VµS	9 mm	9.52 mm	0.375 in	0.354 in	General Purpose
Murata Electronics 78601/4MC			67 µH	Surface Mount	1:1	6.35 mm	0.25 in	70 °C	4 VµS	9 mm	9.52 mm	0.375 in	0.354 in	General Purpose
Murata Electronics 78601/4MC-R			67 µH	Surface Mount	1:1	6.35 mm	0.25 in	70 °C	4 VµS	9 mm	9.52 mm	0.375 in	0.354 in	General Purpose
Murata Electronics 78601/3MC			200 µH	Surface Mount	1:1	6.35 mm	0.25 in	70 °C	6 VµS	9 mm	9.52 mm	0.375 in	0.354 in	General Purpose
Murata Electronics 78601/1MC-R			2 mH	Surface Mount	1:1	6.35 mm	0.25 in	70 °C	20 VµS	9 mm	9.52 mm	0.375 in	0.354 in	General Purpose
Murata Electronics 78601/4JC			58 µH	Surface Mount	1:1	6.35 mm	0.25 in	70 °C	4 VµS	9 mm	9.52 mm	0.375 in	0.354 in	General Purpose
Murata Electronics 78601/16MC			4 mH	Surface Mount	1:1	6.35 mm	0.25 in	70 °C	28 VµS	9 mm	9.52 mm	0.375 in	0.354 in	General Purpose
Murata Electronics 78601/4C			67 µH	Through Hole	1:1	6.35 mm	0.25 in	70 °C	4 VµS	9 mm	9.52 mm	0.375 in	0.354 in	General Purpose
