G-INB-M16 Series
Manufacturer: Phoenix Contact
Beta
⌘K
CABLE MOUNTING & ACCESSORIES G-INB-M16-S68N PEPDS-BK
| Part | Ingress Protection | Outside Cable Diameter (Min) [Min] [diameter] | Outside Cable Diameter (Min) [Min] [diameter] | Type | Operating Temperature [Min] | Operating Temperature [Max] | Material | Color | Outside Cable Diameter (Max) [Max] [diameter] | Outside Cable Diameter (Max) [Max] [diameter] | Thread Length | Thread Length | Thread Size | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

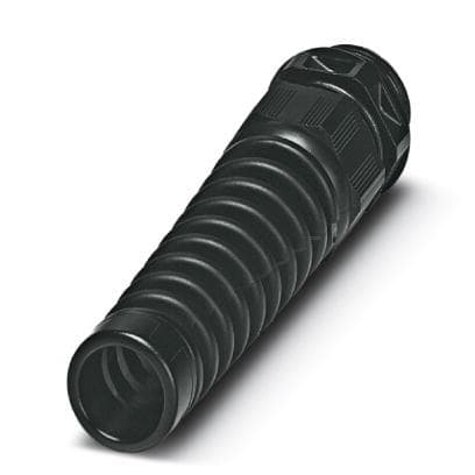

 Phoenix Contact | IP68 IP69 | 4.5 mm | 0.177 in | Cable Gland | -40 C | 100 °C | Polyamide (PA) Nylon | Black | 10 mm | 0.394 in | 0.354 in | 9 mm | M16 | O-Ring Seal Strain Relief |

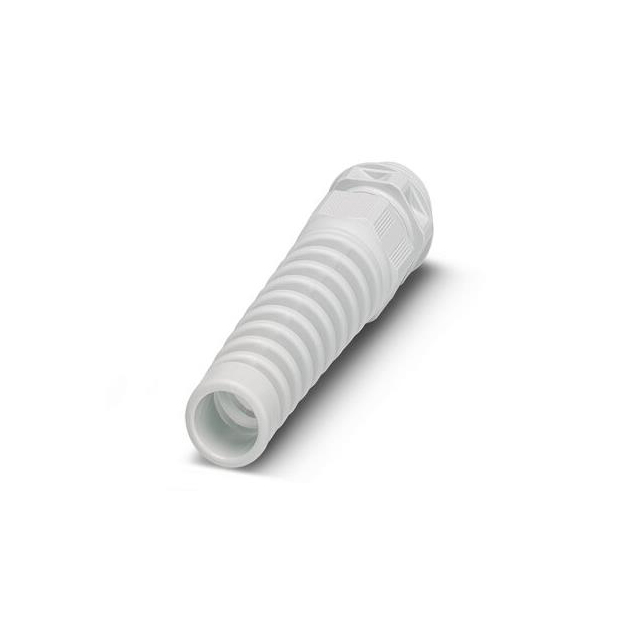

 Phoenix Contact | IP68 IP69 | 4.5 mm | 0.177 in | Cable Gland | -40 C | 100 °C | Polyamide (PA) Nylon | Light Gray | 10 mm | 0.394 in | 0.354 in | 9 mm | M16 | O-Ring Seal Strain Relief |
