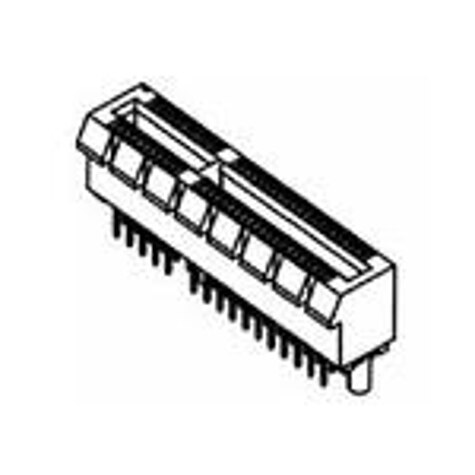

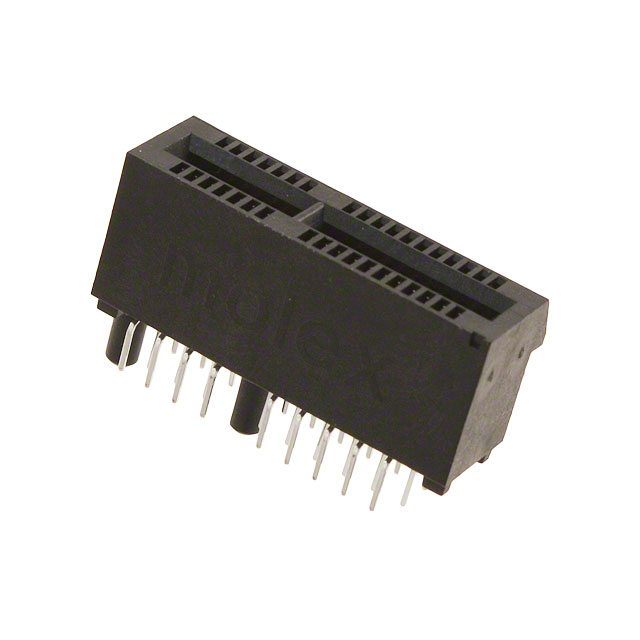

1.00mm Pitch, PCI Express Connector, 36 Circuits, Nylon 4/6 Glass-filled, Black Housing, Phosphor Bronze, 0.38µm Gold Soldertail, Lead-Free
1.00mm Pitch, PCI Express Connector, 36 Circuits, Nylon 4/6 Glass-filled, Black Housing, Phosphor Bronze, 0.38µm Gold Soldertail, Lead-Free
1.00mm Pitch, PCI Express Connector, 36 Circuits, Nylon 4/6 Glass-filled, Black Housing, Phosphor Bronze, 0.38µm Gold Soldertail, Lead-Free
| Part | Read Out | Termination | Number of Positions | Number of Rows | Material - Insulation | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Color | Gender | Card Type | Pitch [x] | Pitch [x] | Card Thickness | Card Thickness | Features | Contact Material | Mounting Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Dual | Solder | 36 | 2 | Nylon 4/6 Polyamide (PA46) | Gold | 85 °C | -55 °C | Black | Female | PCI Express™ | 0.039 in | 1 mm | 0.062 in | 1.57 mm | Board Guide Locking Ramp | Phosphor Bronze | Through Hole | 15 µin | 0.38 µm |
 Molex | Dual | Solder Staggered | 64 | 2 | Nylon 4/6 Polyamide (PA46) | Gold | 85 °C | -55 °C | Black | Female | PCI Express™ | 0.039 in | 1 mm | 0.062 in | 1.57 mm | Board Guide Locking Ramp | Phosphor Bronze | Through Hole | 15 µin | 0.38 µm |
