CTSB Series

Catalog

35 PC. STEEL BARB CABLE TIE ASSORTMENT PACK, NYLON 6.6, NATURAL & UV RESISTANT BLACK, 5 SIZES

Part	Mounting Type	Material	Color	Shelf Life Start	Shelf Life	Wire/Cable Tie Type	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Width [x]	Width [x]	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Length - Approximate	Tensile Strength	Tensile Strength	Features	Length - Actual	Length - Actual	Length - Actual	Length - Approximate [x]	Width [y]	Width [y]
3M Electronic Specialty CTSB-SAMPLE	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66) Stainless Steel 304	Black Natural	Date of Manufacture	60 Months	Locking Standard	10 C	27 °C	10 C	80 °F
3M Electronic Specialty CTSB8BK50-C	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66) Stainless Steel 304	Black	Date of Manufacture	60 Months	Locking Standard	10 C	27 °C	10 C	80 °F	1.77 in	45 mm	0.19 in	4.83 mm	185.42 mm	0.608 ft	7.3 in	7.25 in	22.23 kg	49 lbs	Weather Resistant
3M Electronic Specialty CTSB11NT50-M	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66) Stainless Steel 304	Natural	Date of Manufacture	60 Months	Locking Standard	10 C	27 °C	10 C	80 °F	3.19 in	81.03 mm	0.19 in	4.83 mm	294.64 mm	0.967 ft	11.6 in	11.5 in	22.23 kg	49 lbs
3M Electronic Specialty CTSB4BK18-C	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66) Stainless Steel 304	Black	Date of Manufacture	60 Months	Locking Standard	10 C	27 °C	10 C	80 °F	0.9 "	22.86 mm	0.09 in	2.29 mm					8.16 kg	18 lbs	Weather Resistant	0.333 ft	101.6 mm	4 in	4 in
3M Electronic Specialty CTSB11BK50-M	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66) Stainless Steel 304	Black	Date of Manufacture	60 Months	Locking Standard	10 C	27 °C	10 C	80 °F	3.19 in	81.03 mm	0.19 in	4.83 mm	294.64 mm	0.967 ft	11.6 in	11.5 in	22.23 kg	49 lbs	Weather Resistant

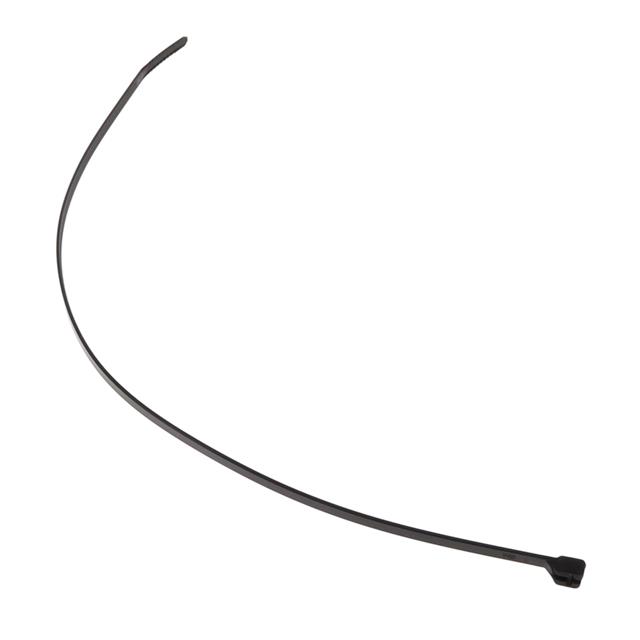

3M Electronic Specialty CTSB15BK50-C	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66) Stainless Steel 304	Black	Date of Manufacture	60 Months	Locking Standard	10 C	27 °C	10 C	80 °F	4.21 in	106.93 mm	0.19 in	4.83 mm	375.92 mm	1.233 ft		14.75 in	22.23 kg	49 lbs	Weather Resistant

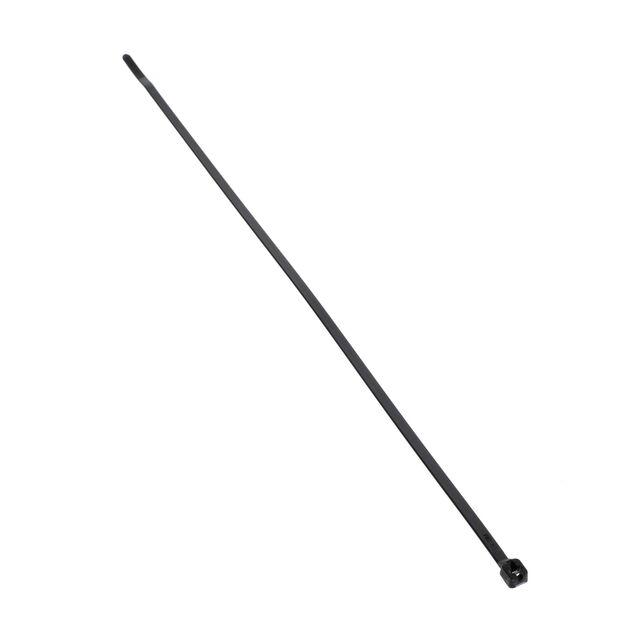

3M Electronic Specialty CTSB15BK50-M	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66) Stainless Steel 304	Black	Date of Manufacture	60 Months	Locking Standard	10 C	27 °C	10 C	80 °F	4.21 in	106.93 mm	0.19 in	4.83 mm	375.92 mm	1.233 ft		14.75 in	22.23 kg	49 lbs	Weather Resistant
3M Electronic Specialty CTSB11BK50-C	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66) Stainless Steel 304	Black	Date of Manufacture	60 Months	Locking Standard	10 C	27 °C	10 C	80 °F	3.19 in	81.03 mm	0.19 in	4.83 mm	294.64 mm	0.967 ft	11.6 in	11.5 in	22.23 kg	49 lbs	Weather Resistant
3M Electronic Specialty CTSB11NT50-C	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66) Stainless Steel 304	Natural	Date of Manufacture	60 Months	Locking Standard	10 C	27 °C	10 C	80 °F	3.19 in	81.03 mm	0.19 in	4.83 mm	294.64 mm	0.967 ft	11.6 in	11.5 in	22.23 kg	49 lbs
3M Electronic Specialty CTSB6NT40-C	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66) Stainless Steel 304	Natural	Date of Manufacture	60 Months	Locking Standard	10 C	27 °C	10 C	80 °F	1.37 in	34.9 mm			154.94 mm	0.508 '	6.1 "	6 in	18.14 kg	40 lbs						3.56 mm	0.14 in
