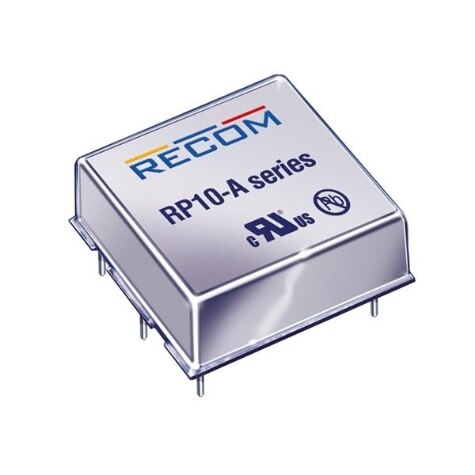

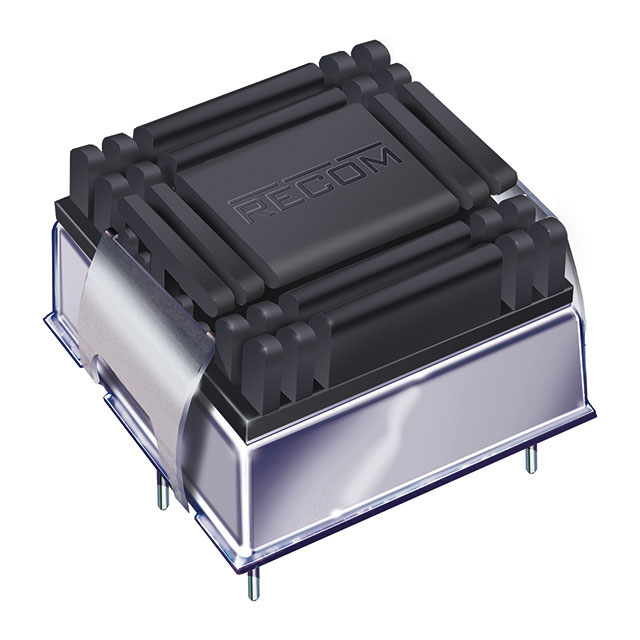

RP10-A Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 10W 9-18VIN 24VOUT 416MA
| Part | Features | Applications | Voltage - Output 1 | Current - Output (Max) [Max] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Power (Watts) | Number of Outputs | Control Features | Type | Package / Case | Voltage - Isolation | Voltage - Input (Min) [Min] | Efficiency | Voltage - Output 2 | Current - Output (Max) | Size / Dimension [z] | Size / Dimension [y] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | OCP OVP Remote On/Off SCP UVLO | ITE (Commercial) | 24 V | 416 mA | 1 in | 0.65 in | 25.4 mm | 25.4 mm | 1 " | 16.5 mm | Through Hole | 80 °C | -40 C | 18 V | 10 W | 1 | Active Low Enable | Isolated Module | 6-DIP Module | 1.6 kV | 9 V | 91 % | |||||
 Recom Power | OCP OVP Remote On/Off SCP UVLO | ITE (Commercial) | 3.3 V | 3 A | 1 in | 0.65 in | 25.4 mm | 25.4 mm | 1 " | 16.5 mm | Through Hole | 80 °C | -40 C | 75 V | 10 W | 1 | Active High Enable | Isolated Module | 6-DIP Module | 1.6 kV | 36 V | 85 % | |||||
Recom Power | OCP OVP Remote On/Off SCP UVLO | ITE (Commercial) | 5 V | 1 in | 0.65 in | 25.4 mm | 25.4 mm | 1 " | 16.5 mm | Through Hole | 80 °C | -40 C | 36 V | 10 W | 2 | Isolated Module | 6-DIP Module 5 Leads | 1.6 kV | 18 V | 86 % | -5 V | 1 A | |||||
Recom Power | OCP OVP Remote On/Off SCP UVLO | ITE (Commercial) | 12 V | 416 mA | 1 in | 0.39 " | 25.4 mm | 1 " | Through Hole | 80 °C | -40 C | 75 V | 10 W | 2 | Active Low Enable | Isolated Module | 6-DIP Module | 1.6 kV | 36 V | 91 % | -12 V | 9.9 mm | 25.4 mm | 416 mA | |||
 Recom Power | OCP OVP Remote On/Off SCP UVLO | ITE (Commercial) | 12 V | 416 mA | 1 in | 0.65 in | 25.4 mm | 25.4 mm | 1 " | 16.5 mm | Through Hole | 80 °C | -40 C | 36 V | 10 W | 2 | Isolated Module | 6-DIP Module 5 Leads | 1.6 kV | 18 V | 90 % | -12 V | 416 mA | ||||
Recom Power | OCP OVP Remote On/Off SCP UVLO | ITE (Commercial) | 15 V | 670 mA | 1 in | 0.65 in | 25.4 mm | 25.4 mm | 1 " | 16.5 mm | Through Hole | 80 °C | -40 C | 36 V | 10 W | 1 | Active Low Enable | Isolated Module | 6-DIP Module | 1.6 kV | 18 V | 90 % | |||||
Recom Power | OCP OVP Remote On/Off SCP UVLO | ITE (Commercial) | 24 V | 416 mA | 1 in | 0.39 " | 25.4 mm | 1 " | Through Hole | 80 °C | -40 C | 18 V | 10 W | 1 | Active High Enable | Isolated Module | 6-DIP Module | 1.6 kV | 9 V | 91 % | 9.9 mm | 25.4 mm | |||||
Recom Power | OCP OVP Remote On/Off SCP UVLO | ITE (Commercial) | 12 V | 830 mA | 1 in | 0.65 in | 25.4 mm | 25.4 mm | 1 " | 16.5 mm | Through Hole | 80 °C | -40 C | 18 V | 10 W | 1 | Isolated Module | 6-DIP Module 5 Leads | 1.6 kV | 9 V | 89 % | ||||||
Recom Power | OCP OVP Remote On/Off SCP UVLO | ITE (Commercial) | 12 V | 416 mA | 1 in | 0.65 in | 25.4 mm | 25.4 mm | 1 " | 16.5 mm | Through Hole | 80 °C | -40 C | 36 V | 10 W | 2 | Active Low Enable | Isolated Module | 6-DIP Module | 1.6 kV | 18 V | 89 % | -12 V | 416 mA | |||
 Recom Power | OCP OVP Remote On/Off SCP UVLO | ITE (Commercial) | 12 V | 416 mA | 1 in | 0.65 in | 25.4 mm | 25.4 mm | 1 " | 16.5 mm | Through Hole | 80 °C | -40 C | 18 V | 10 W | 2 | Isolated Module | 6-DIP Module 5 Leads | 1.6 kV | 9 V | 89 % | -12 V | 416 mA |
