S15B-PH Series

Catalog

CONN HEADER SMD R/A 15POS 2MM

Part	Features	Contact Type	Contact Material	Number of Rows	Contact Length - Mating	Contact Length - Mating	Insulation Material	Voltage Rating	Number of Positions Loaded	Current Rating (Amps)	Shrouding	Termination	Mounting Type	Fastening Type	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Number of Positions	Contact Shape	Connector Type	Style	Insulation Height	Insulation Height	Insulation Color	Contact Length - Post [x]	Contact Length - Post
JST Sales America Inc. S15B-PH-SM4-GW-TB	Solder Retention	Male Pin	Copper Alloy	1	0.13 in	3.3 mm	Nylon 6T Polyamide (PA6T)	100 V	All	2 A	Shrouded - 4 Wall	Solder	Right Angle Surface Mount	Detent Lock	Tin	85 °C	-25 °C	0.079 "	2 mm	UL94 V-0	15	Square	Header	Board to Cable/Wire	0.217 in	5.51 mm
JST Sales America Inc. S15B-PH-SM4-TB	Solder Retention	Male Pin	Copper Alloy	1	0.13 in	3.3 mm	Nylon 6T Polyamide (PA6T)	100 V	All	2 A	Shrouded - 4 Wall	Solder	Right Angle Surface Mount	Detent Lock	Tin	85 °C	-25 °C	0.079 "	2 mm	UL94 V-0	15	Square	Header	Board to Cable/Wire	0.217 in	5.51 mm	Natural

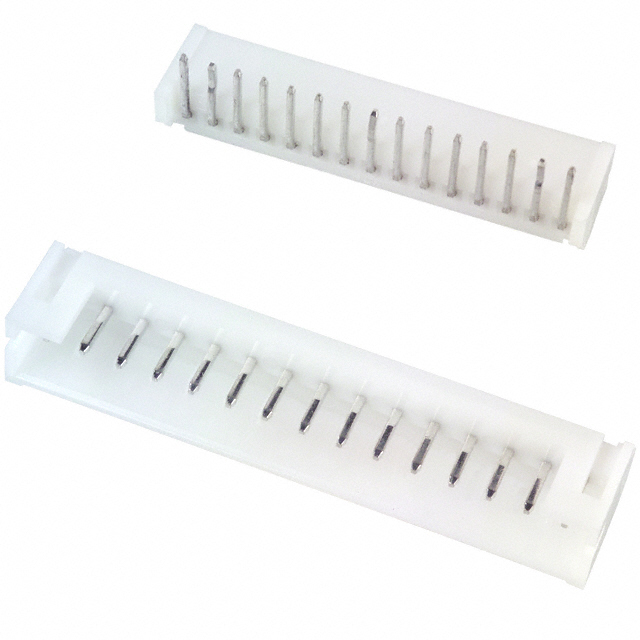

JST Sales America Inc. S15B-PH-K-S		Male Pin	Brass	1	0.13 in	3.3 mm	Nylon 6/6 Polyamide (PA66)	100 V	All	2 A	Shrouded - 4 Wall	Press-Fit Solder	Right Angle Through Hole	Detent Lock	Tin	85 °C	-25 °C	0.079 "	2 mm	UL94 V-0	15	Square	Header	Board to Cable/Wire	0.189 in	4.8 mm	Natural	0.134 "	3.4 mm
