TBP01P1 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

TERMINAL BLOCK, PLUGGABLE, 5.08

Part	Screw Size	Positions Per Level	Number of Levels	Pitch	Pitch	Mounting Type	Wire Gauge or Range - mm²	Voltage - UL	Contact Mating Finish	Plug Wire Entry	Wire Strip Length	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Current - UL	Type	Voltage - IEC	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Current - IEC	Material Flammability Rating	Number of Positions	Color	Contact Material	Insulation Height [custom]	Insulation Height [custom]	Torque - Screw	Torque - Screw	Wire Gauge or Range - mm˛	Features

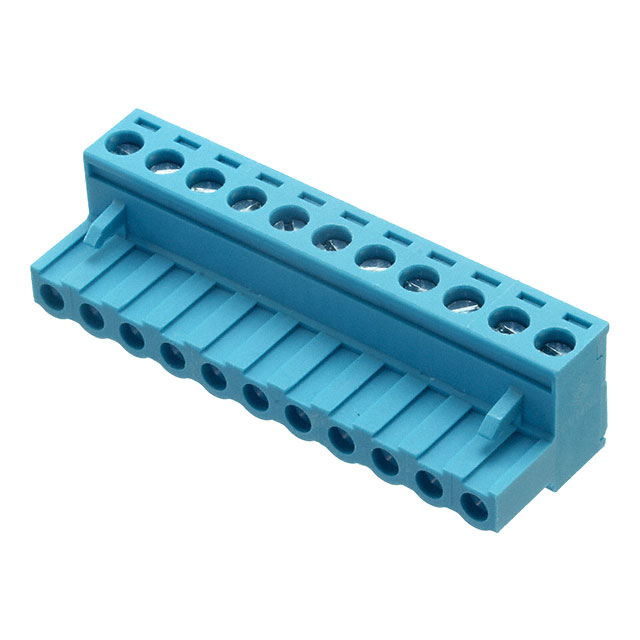

Same Sky (Formerly CUI Devices) TBP01P1-508-11BE	M3	11	1	5.08 mm	0.2 in	Free Hanging (In-Line)	2.5 mm²	300 V	Nickel	180 °	7 mm	Screw - Rising Cage Clamp	-40 C	105 ░C	16 A	Plug Female Sockets	320 V	28 AWG	12 AWG	20 A	UL94 V-0	11	Blue	Copper Alloy	0.591 in	15 mm	4.4 Lb-In	0.5 Nm

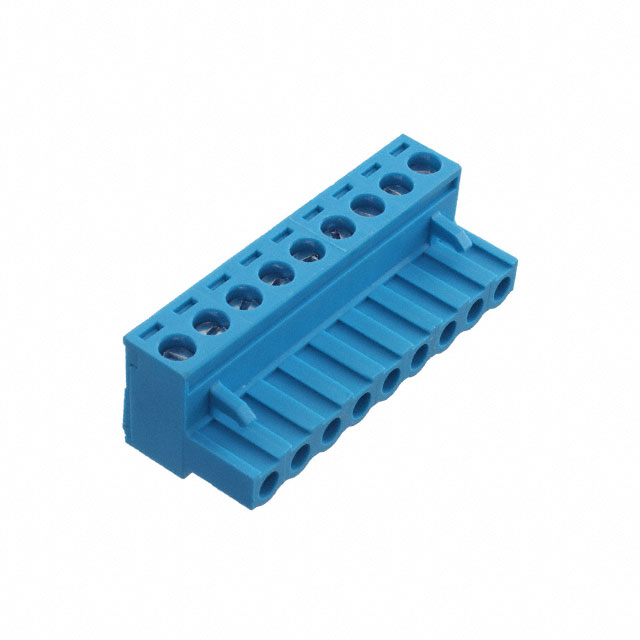

Same Sky (Formerly CUI Devices) TBP01P1-508-09BE		9	1	5.08 mm	0.2 in	Free Hanging (In-Line)	2.5 mm²	300 V	Nickel	180 °		Screw - Rising Cage Clamp	-40 C	105 ░C	16 A	Plug Female Sockets	320 V	28 AWG	12 AWG	20 A		9	Blue
Same Sky (Formerly CUI Devices) TBP01P1-508-14BE	M3	14	1	5.08 mm	0.2 in	Free Hanging (In-Line)	2.5 mm²	300 V	Nickel	180 °	7 mm	Screw - Rising Cage Clamp	-40 C	105 ░C	16 A	Plug Female Sockets	320 V	28 AWG	12 AWG	20 A	UL94 V-0	14	Blue	Copper Alloy	0.591 in	15 mm	4.4 Lb-In	0.5 Nm
Same Sky (Formerly CUI Devices) TBP01P1-508-02BE		2	1	5.08 mm	0.2 in	Free Hanging (In-Line)	2.5 mm²	300 V	Nickel	180 °		Screw - Rising Cage Clamp	-40 C	105 ░C	16 A	Plug Female Sockets	320 V	28 AWG	12 AWG	20 A		2	Blue
Same Sky (Formerly CUI Devices) TBP01P1-508-02BE	M3	2	1	5.08 mm	0.2 in	Free Hanging (In-Line)	2.5 mm²	300 V	Nickel	180 °	7 mm	Screw - Rising Cage Clamp	-40 C	105 ░C	16 A	Plug Female Sockets	320 V	28 AWG	12 AWG	20 A	UL94 V-0	2	Blue	Copper Alloy	0.591 in	15 mm	4.4 Lb-In	0.5 Nm
Same Sky (Formerly CUI Devices) TBP01P1W-508-02BE	M3	2	1	5.08 mm	0.2 in	Free Hanging (In-Line)		300 V	Nickel	180 °	7 mm	Screw - Rising Cage Clamp	-40 C	105 ░C	16 A	Plug Female Sockets	320 V	28 AWG	12 AWG	20 A	UL94 V-0	2	Blue	Copper Alloy	0.591 in	15 mm	4.4 Lb-In	0.5 Nm	2.5 mm˛	Mating Flange Retention Latches (Non-Wire Side)
Same Sky (Formerly CUI Devices) TBP01P1W-508-16BE	M3	16	1	5.08 mm	0.2 in	Free Hanging (In-Line)	2.5 mm²	300 V	Nickel	180 °	7 mm	Screw - Rising Cage Clamp	-40 C	105 ░C	16 A	Plug Female Sockets	320 V	28 AWG	12 AWG	20 A	UL94 V-0	16	Blue	Copper Alloy	0.591 in	15 mm	4.4 Lb-In	0.5 Nm		Mating Flange Retention Latches (Non-Wire Side)

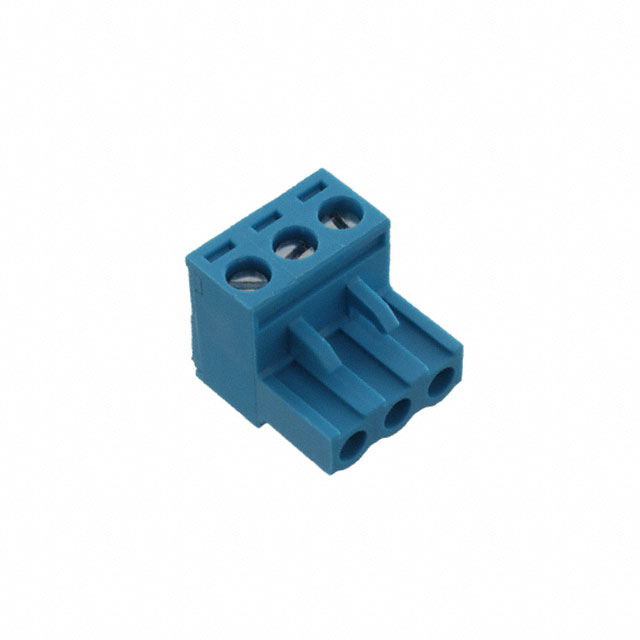

Same Sky (Formerly CUI Devices) TBP01P1-508-03BE		3	1	5.08 mm	0.2 in	Free Hanging (In-Line)	2.5 mm²	300 V	Nickel	180 °		Screw - Rising Cage Clamp	-40 C	105 ░C	16 A	Plug Female Sockets	320 V	28 AWG	12 AWG	20 A			Blue
Same Sky (Formerly CUI Devices) TBP01P1W-508-05BE	M3	5	1	5.08 mm	0.2 in	Free Hanging (In-Line)		300 V	Nickel	180 °	7 mm	Screw - Rising Cage Clamp	-40 C	105 ░C	16 A	Plug Female Sockets	320 V	28 AWG	12 AWG	20 A	UL94 V-0	5	Blue	Copper Alloy	0.591 in	15 mm	4.4 Lb-In	0.5 Nm	2.5 mm˛	Mating Flange Retention Latches (Non-Wire Side)
Same Sky (Formerly CUI Devices) TBP01P1W-508-05BE		5	1	5.08 mm	0.2 in	Free Hanging (In-Line)	2.5 mm²	300 V	Nickel	180 °		Screw - Rising Cage Clamp	-40 C	105 ░C	16 A	Plug Female Sockets	320 V	28 AWG	12 AWG	20 A		5	Blue							Mating Flange Retention Latches (Non-Wire Side)
