MA912 Series

Catalog

ANTENNA MIMO -5.97DBI GAIN 803MHZ/894MHZ/960MHZ/1880MHZ/1900MHZ/2170MHZ/2690MHZ/3600MHZ BOX

Part	Frequency (Center/Band)	Frequency Group	Mounting Type	Frequency Range [Max]	Frequency Range [Min]	VSWR	Number of Bands	Features	Ingress Protection	Height (Max) [Max] [z]	Height (Max)	Gain	Antenna Type	RF Family/Standard	Applications
Taoglas Limited MA912.W.A.BI.001	1.795 GHz 1.92 GHz 2.045 GHz 2.59 GHz 3.45 GHz 750.5 MHz 859 MHz 920 MHz	Wide Band	Adhesive	2.17 GHz 2.69 GHz 3.6 GHz 960 MHz	1.71 GHz 2.49 GHz 3.3 GHz 698 MHz	3	8	Cable - 3m	IP67	0.787 in	20 mm	1.44 dBi 2.4 dBi 2.48 dBi 2.9 dBi 2.98 dBi 2.99 dBi 3.27 dBi	Module	Cellular General ISM WiFi	DCS GSM LTE PCS UMTS Wi-Fi

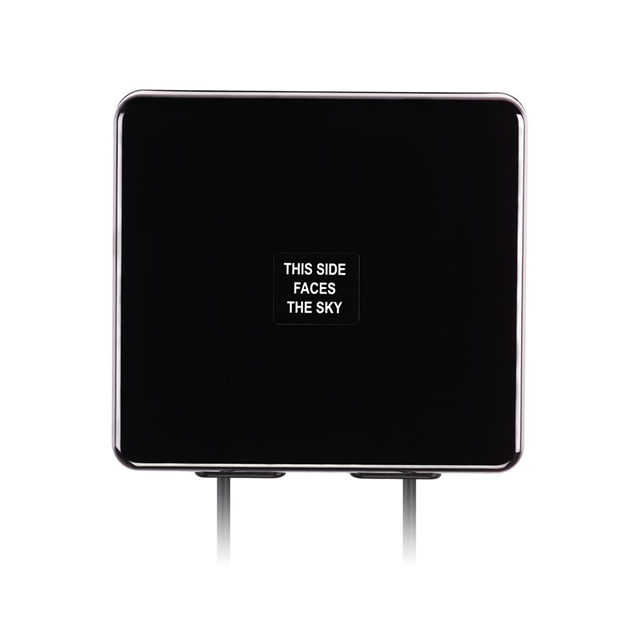

Taoglas Limited MA912.A.BI.001	1.795 GHz 1.92 GHz 2.045 GHz 2.59 GHz 3.45 GHz 750.5 MHz 859 MHz 920 MHz	Wide Band	Adhesive	2.17 GHz 2.69 GHz 3.6 GHz 960 MHz	1.71 GHz 2.49 GHz 3.3 GHz 698 MHz	3	8	Cable - 3m	IP67	0.787 in	20 mm	1.44 dBi 2.4 dBi 2.48 dBi 2.9 dBi 2.98 dBi 2.99 dBi 3.27 dBi	Module	Cellular General ISM	DCS GSM LTE PCS UMTS
