726-024 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 24POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Mounting Type	Number of Positions	Number of Positions/Bay/Row	Contact Finish	Card Thickness [Max]	Card Thickness [Min]	Gender	Card Type	Pitch	Pitch	Color	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Termination	Contact Material	Read Out	Termination Rows	Number of Rows

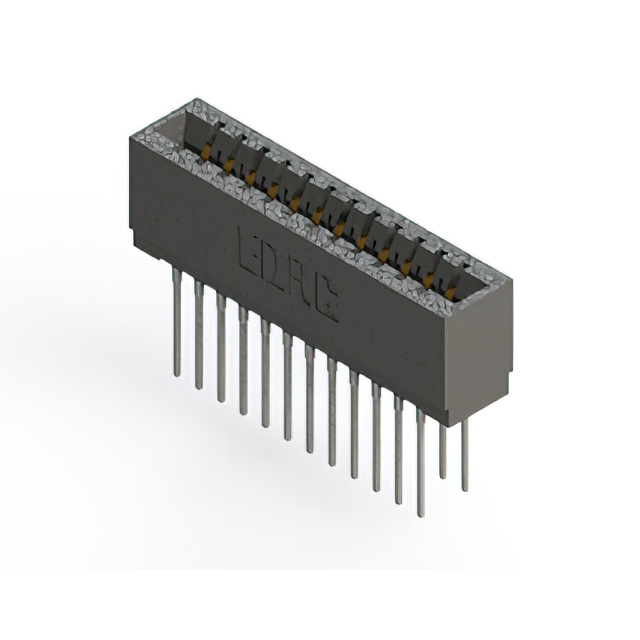

EDAC Inc. 726-024-540-201	Polyester Thermoplastic	2	Through Hole	24	12	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Non Specified - Dual Edge	3.18 mm	0.125 in	Black	2	30 Áin	0.76 Ám	-40 C	105 ░C	Cantilever	Press-Fit Wire Wrap	Copper Alloy	Dual
EDAC Inc. 726-024-527-101	Polyester Thermoplastic		Through Hole	24	24	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Non Specified - Single Edge	3.18 mm	0.125 in	Black		30 Áin	0.76 Ám	-40 C	105 ░C	Cantilever	Press-Fit	Copper Alloy	Single	1	1

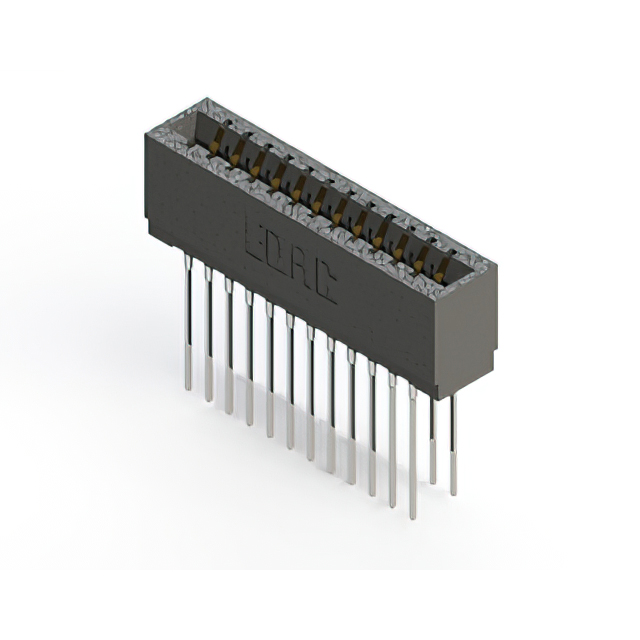

EDAC Inc. 726-024-541-201	Polyester Thermoplastic	2	Through Hole	24	12	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Non Specified - Dual Edge	3.18 mm	0.125 in	Black	2	30 Áin	0.76 Ám	-40 C	105 ░C	Cantilever	Press-Fit Wire Wrap	Copper Alloy	Dual

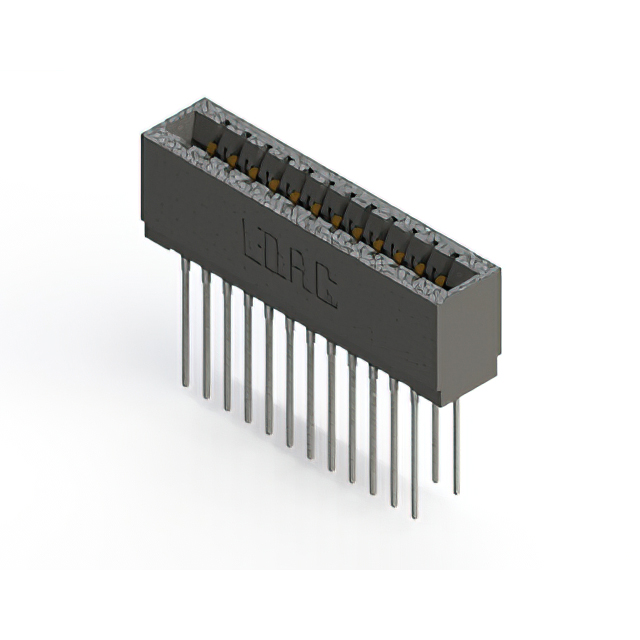

EDAC Inc. 726-024-553-201	Polyester Thermoplastic	2	Through Hole	24	12	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Non Specified - Dual Edge	3.18 mm	0.125 in	Black	2	30 Áin	0.76 Ám	-40 C	105 ░C	Cantilever	Press-Fit Wire Wrap	Copper Alloy	Dual
EDAC Inc. 726-024-520-201	Polyester Thermoplastic	2	Through Hole	24	12	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Non Specified - Dual Edge	3.18 mm	0.125 in	Black	2	30 Áin	0.76 Ám	-40 C	105 ░C	Cantilever	Press-Fit	Copper Alloy	Dual
EDAC Inc. 726-024-541-101	Polyester Thermoplastic		Through Hole	24	24	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Non Specified - Single Edge	3.18 mm	0.125 in	Black		30 Áin	0.76 Ám	-40 C	105 ░C	Cantilever	Press-Fit Wire Wrap	Copper Alloy	Single	1	1

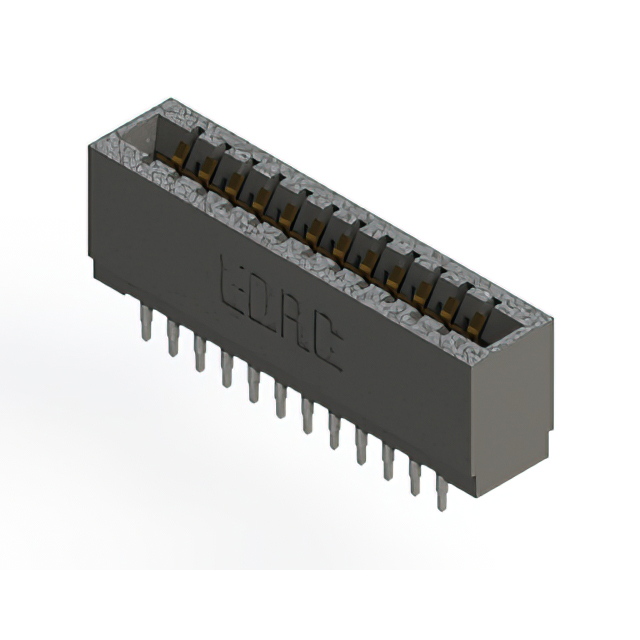

EDAC Inc. 726-024-525-201	Polyester Thermoplastic	2	Through Hole	24	12	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Non Specified - Dual Edge	3.18 mm	0.125 in	Black	2	30 Áin	0.76 Ám	-40 C	105 ░C	Cantilever	Press-Fit	Copper Alloy	Dual
EDAC Inc. 726-024-545-101	Polyester Thermoplastic		Through Hole	24	24	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Non Specified - Single Edge	3.18 mm	0.125 in	Black		30 Áin	0.76 Ám	-40 C	105 ░C	Cantilever	Press-Fit Wire Wrap	Copper Alloy	Single	1	1
EDAC Inc. 726-024-540-101	Polyester Thermoplastic		Through Hole	24	24	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Non Specified - Single Edge	3.18 mm	0.125 in	Black		30 Áin	0.76 Ám	-40 C	105 ░C	Cantilever	Press-Fit Wire Wrap	Copper Alloy	Single	1	1
EDAC Inc. 726-024-525-101	Polyester Thermoplastic		Through Hole	24	24	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Non Specified - Single Edge	3.18 mm	0.125 in	Black		30 Áin	0.76 Ám	-40 C	105 ░C	Cantilever	Press-Fit	Copper Alloy	Single	1	1
