HC-M Series
Manufacturer: Phoenix Contact
Beta
⌘K
HEAVY DUTY POWER CONNECTORS HC-M-04-KT-M
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Number of Positions | Contact Type | Termination Style | Gender | Current Rating (Amps) | Connector Type | Housing Material | Contact Material | Material Flammability Rating | Color | Contact Finish | For Use With/Related Products | Accessory Type | Specifications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 125 °C | -40 C | 50 V | 4 | Coax | Crimp | Male | 1.5 A | Module without Contacts | ||||||||

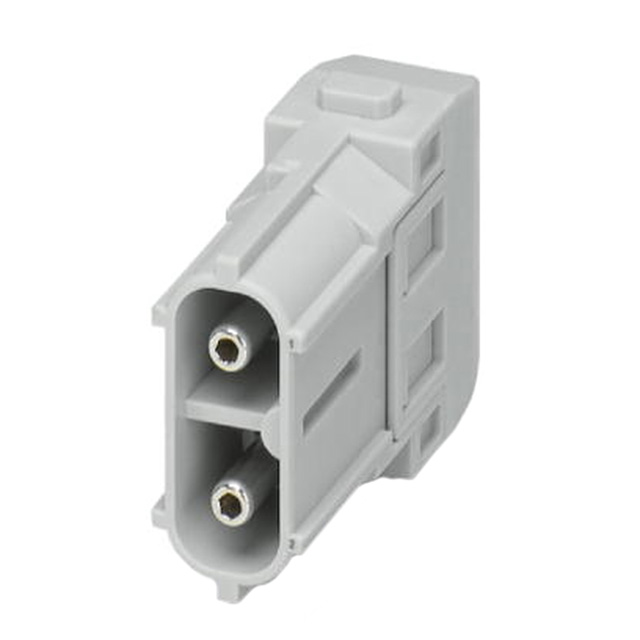

 Phoenix Contact | 125 °C | -40 C | 600 V | 2 | Screw | Female | 127 A | Module | |||||||||
 Phoenix Contact | 125 °C | -40 C | 500 V | 20 | Crimp | Male | 17.5 A | Module without Contacts | |||||||||

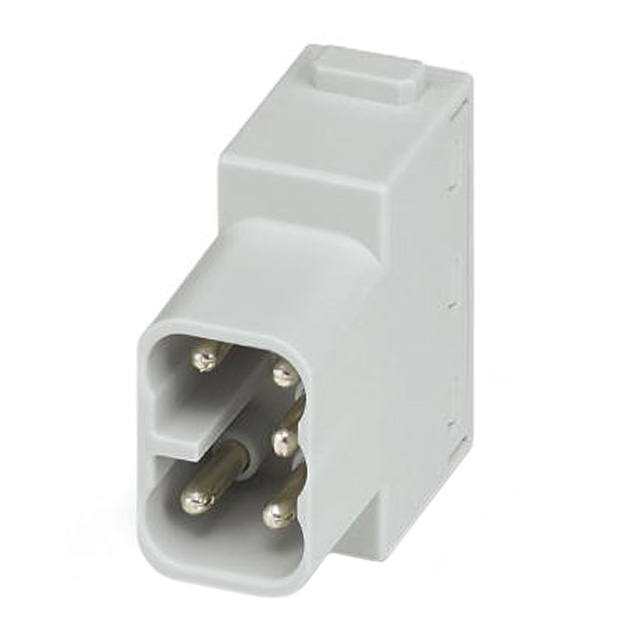

 Phoenix Contact | 125 °C | -40 C | 600 V | 5 | Push In | Male | 19 A | Module | Polycarbonate (PC) | Copper Alloy | UL94 V-0 | Gray | Silver | ||||
 Phoenix Contact | 125 °C | -40 C | 600 V | 2 | Screw | Male | 55 A | Module | Polycarbonate (PC) | Copper Alloy | UL94 V-0 | Gray | Silver | ||||
 Phoenix Contact | Heavycon® Frames | Dummy Module | Gray |
