S02B-XAS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

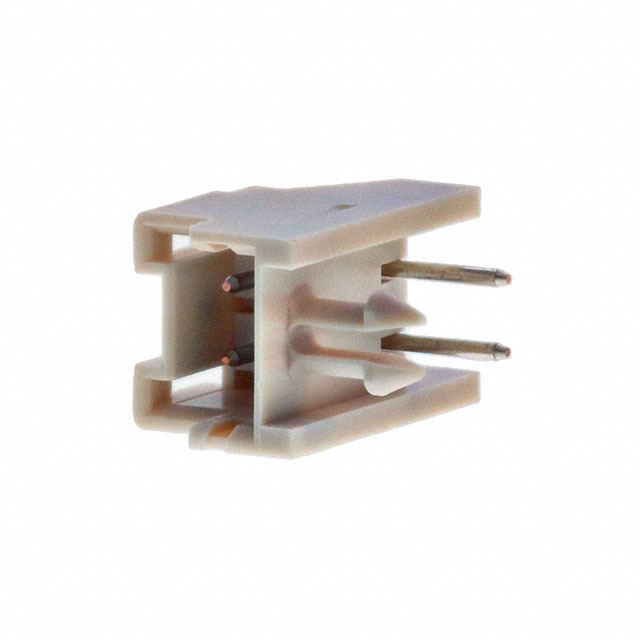

CONN HEADER R/A 2POS 2.5MM
| Part | Style | Contact Finish - Post | Insulation Material | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Color | Shrouding | Mounting Type | Voltage Rating | Pitch - Mating | Pitch - Mating | Contact Type | Contact Material | Contact Shape | Current Rating (Amps) | Number of Positions | Contact Length - Post [x] | Contact Length - Post [x] | Material Flammability Rating | Connector Type | Features | Number of Positions Loaded | Fastening Type | Number of Rows | Insulation Height [z] | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Board to Cable/Wire | Tin | Glass Filled Nylon 6/6 Polyamide (PA66) | Kinked Pin Solder | 85 °C | -25 °C | Natural | Shrouded - 4 Wall | Right Angle Through Hole | 250 V | 2.5 mm | 0.098 in | Male Pin | Copper Alloy | Circular | 3 A | 2 | 0.126 " | 3.2 mm | UL94 V-0 | Header | Board Lock | All | Locking Ramp | 1 | 0.299 " | 7.6 mm |
 JST Sales America Inc. | Board to Cable/Wire | Tin | Glass Filled Nylon 6/6 Polyamide (PA66) | Solder | 85 °C | -25 °C | Natural | Shrouded - 4 Wall | Right Angle Through Hole | 250 V | 2.5 mm | 0.098 in | Male Pin | Copper Alloy | Circular | 3 A | 2 | 0.126 " | 3.2 mm | UL94 V-0 | Header | All | Locking Ramp | 1 | 0.299 " | 7.6 mm |
