ANR-10 Series
Manufacturer: OptiFuse
Beta
⌘K

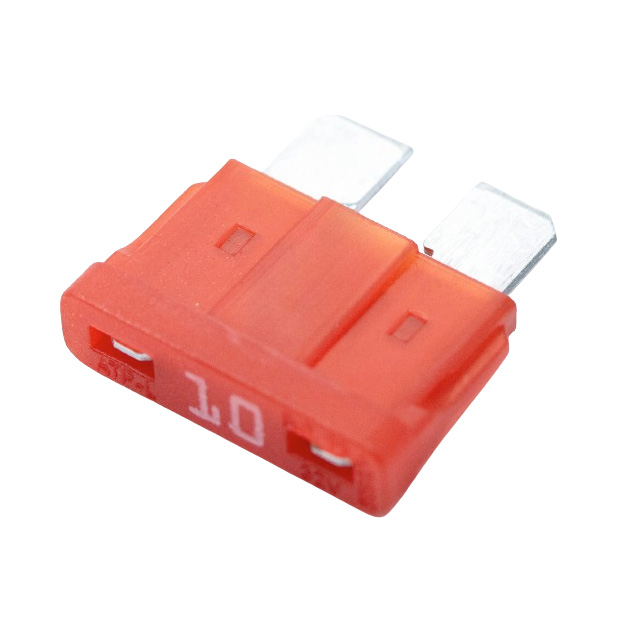

FUSE AUTO 10A 32VDC BLADE ATO
| Part | Fuse Type | Mounting Type | Package / Case | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Approval Agency | Voltage Rating - DC | Operating Temperature [Min] | Operating Temperature [Max] | Color | Breaking Capacity @ Rated Voltage | Current Rating (Amps) | Response Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OptiFuse | Automotive | Requires Holder | Blade ATO/ATC | 0.494 " | 5 mm | 19.3 mm | 12.54 mm | 0.197 " | 0.76 " | ISO SAE | 32 V | -40 C | 105 ░C | Red | 1 kA | 10 A | Fast Blow |
