11072M Series
Manufacturer: CNC Tech
Beta
⌘K
CONN RCPT MALE 5POS SOLDER CUP
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Current Rating (Amps) | Shell Finish | Insert Material | Shell Material | Connector Type | Color | Shell Size - Insert | Shielding | Number of Positions | Orientation | Contact Finish - Mating | Mounting Type | Contact Material | Ingress Protection | Material Flammability Rating | Primary Material | Voltage Rating | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

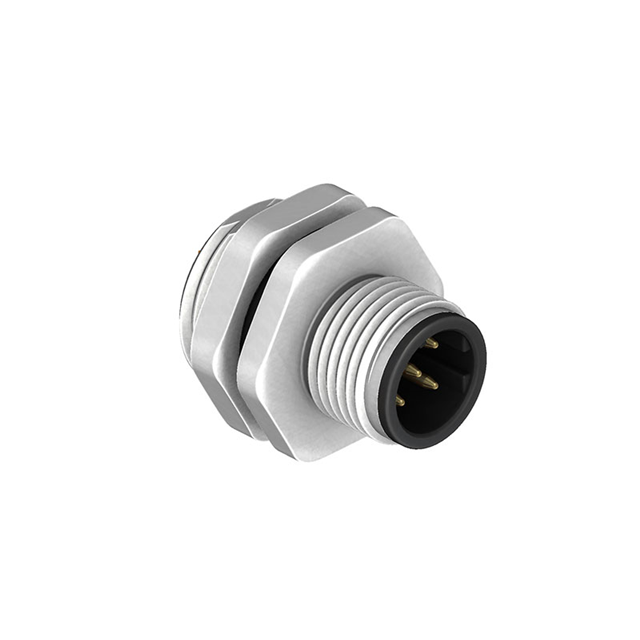

 CNC Tech | 0.076 µm | 3 µin | -40 C | 100 °C | Threaded | 5 A | Nickel | Nylon 6/6 Polyamide (PA66) | Copper Alloy | Receptacle Male Pins | Silver | M12-5 | Unshielded | 5 | D | Gold | Panel Mount | Copper Alloy | IP67 - Dust Tight Waterproof | UL94 V-0 | Metal | 60 VDC | Bulkhead - Front Side Nut |
 CNC Tech | 0.076 µm | 3 µin | -40 C | 100 °C | Threaded | 5 A | Nickel | Nylon 6/6 Polyamide (PA66) | Copper Alloy | Receptacle Male Pins | Silver | M12-5 | Unshielded | 5 | A | Gold | Panel Mount | Copper Alloy | IP67 - Dust Tight Waterproof | UL94 V-0 | Metal | 60 VDC | Bulkhead - Front Side Nut |

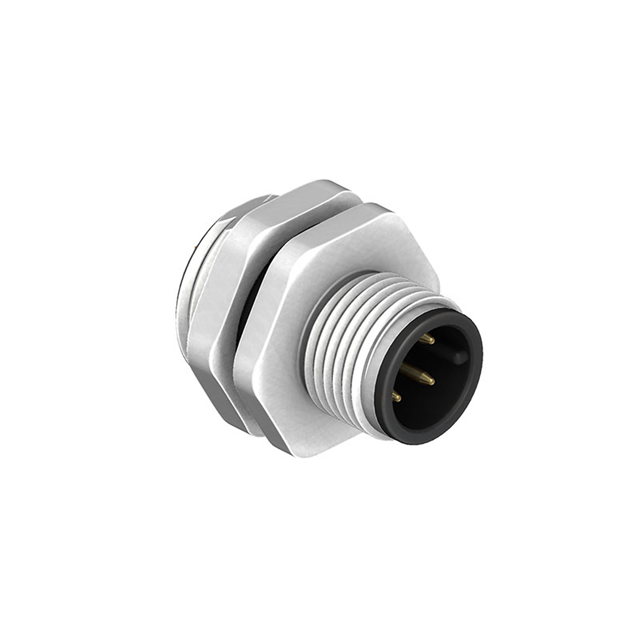

 CNC Tech | 0.076 µm | 3 µin | -40 C | 100 °C | Threaded | 5 A | Nickel | Nylon 6/6 Polyamide (PA66) | Copper Alloy | Receptacle Male Pins | Silver | M12-4 | Unshielded | 4 | D | Gold | Panel Mount | Copper Alloy | IP67 - Dust Tight Waterproof | UL94 V-0 | Metal | 60 VDC | Bulkhead - Front Side Nut |

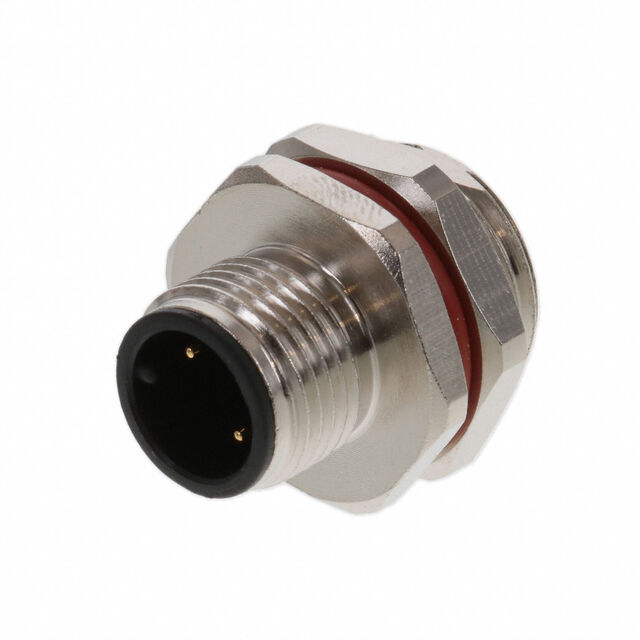

 CNC Tech | 0.076 µm | 3 µin | -40 C | 100 °C | Threaded | 5 A | Nickel | Nylon 6/6 Polyamide (PA66) | Copper Alloy | Receptacle Male Pins | Silver | M12-3 | Unshielded | D | Gold | Panel Mount | Copper Alloy | IP67 - Dust Tight Waterproof | UL94 V-0 | Metal | 60 VDC | Bulkhead - Front Side Nut | |
 CNC Tech | 0.076 µm | 3 µin | -40 C | 100 °C | Threaded | 5 A | Nickel | Nylon 6/6 Polyamide (PA66) | Copper Alloy | Receptacle Male Pins | Silver | M12-4 | Unshielded | 4 | A | Gold | Panel Mount | Copper Alloy | IP67 - Dust Tight Waterproof | UL94 V-0 | Metal | 60 VDC | Bulkhead - Front Side Nut |
 CNC Tech | 0.076 µm | 3 µin | -40 C | 100 °C | Threaded | 5 A | Nickel | Nylon 6/6 Polyamide (PA66) | Copper Alloy | Receptacle Male Pins | Silver | M12-3 | Unshielded | A | Gold | Panel Mount | Copper Alloy | IP67 - Dust Tight Waterproof | UL94 V-0 | Metal | 60 VDC | Bulkhead - Front Side Nut | |

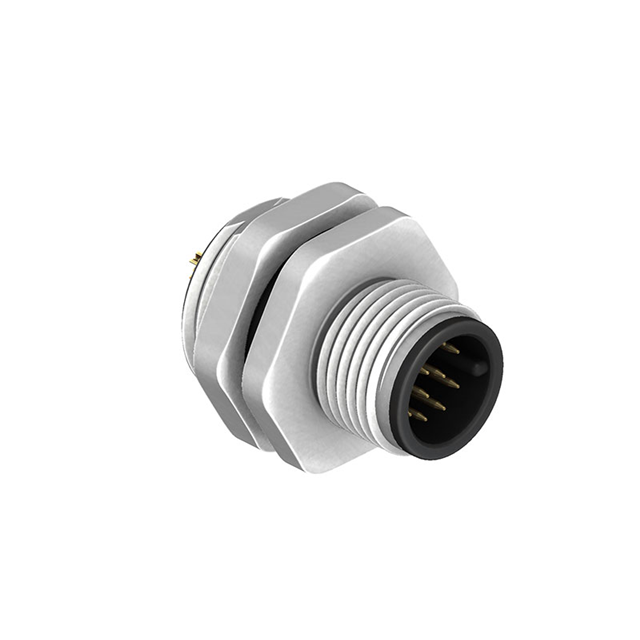

 CNC Tech | 0.076 µm | 3 µin | -40 C | 100 °C | Threaded | 1.5 A | Nickel | Nylon 6/6 Polyamide (PA66) | Copper Alloy | Receptacle Male Pins | Silver | M12-12 | Unshielded | 12 | A | Gold | Panel Mount | Copper Alloy | IP67 - Dust Tight Waterproof | UL94 V-0 | Metal | 30 VDC | Bulkhead - Front Side Nut |

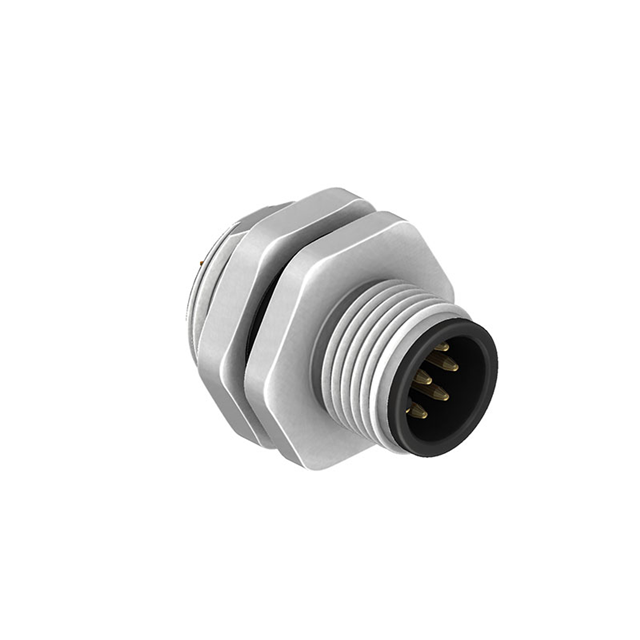

 CNC Tech | 0.076 µm | 3 µin | -40 C | 100 °C | Threaded | 2 A | Nickel | Nylon 6/6 Polyamide (PA66) | Copper Alloy | Receptacle Male Pins | Silver | M12-8 | Unshielded | 8 | A | Gold | Panel Mount | Copper Alloy | IP67 - Dust Tight Waterproof | UL94 V-0 | Metal | 60 VDC | Bulkhead - Front Side Nut |
