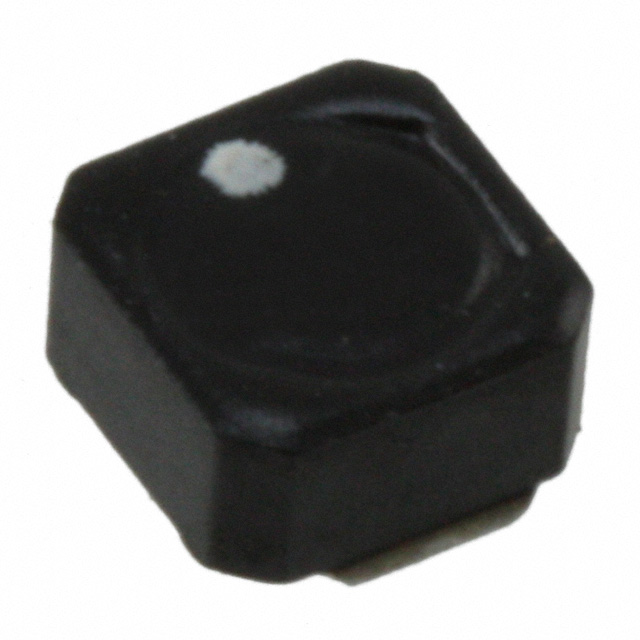

VLCF Series

Catalog

POWER INDUCTORS - SMD 6.8UH 1.15A 101MOHMS 30%

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current Rating (Amps)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Saturation (Isat)	Tolerance	Inductance Frequency - Test	Shielding	DC Resistance (DCR)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Material - Core	Inductance	Package / Case	Type	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
TDK Corporation VLCF4024T-6R8N1R1-2	0.157 "	4 mm	0.157 in	4 mm	1.15 A	2.4 mm	0.094 in	1.15 A	30 %	100 kHz	Shielded	116 mOhm	Surface Mount	-40 C	105 ░C	Ferrite	6.8 µH	Nonstandard	Drum Core Wirewound
TDK Corporation VLCF5024T-470MR40-2	0.197 "	5 mm	0.197 in	5 mm	400 mA	2.4 mm	0.094 in	400 mA	20 %	100 kHz	Shielded		Surface Mount	-40 C	105 ░C	Ferrite	47 µH	Nonstandard	Drum Core Wirewound	383 mOhm
TDK Corporation VLCF5020T-470MR51-1	0.197 "	5 mm	0.197 in	5 mm	0.51 A			510 mA	20 %	100 kHz	Shielded		Surface Mount	-40 C	105 ░C	Ferrite	47 µH	Nonstandard	Drum Core Wirewound	1.05 Ohm	0.079 in	2 mm

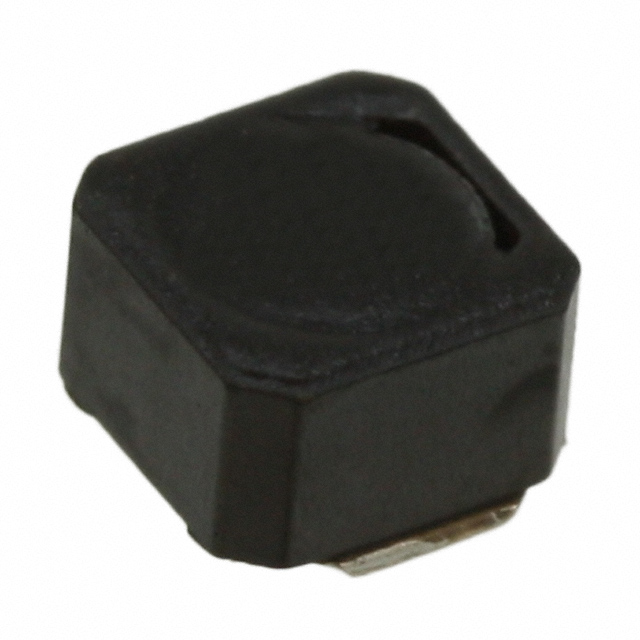

TDK Corporation VLCF4028T-1R6N2R3-2	0.157 "	4 mm	0.157 in	4 mm	2.31 A			2.31 A	30 %	100 kHz	Shielded	38 mOhm	Surface Mount	-40 C	105 ░C	Ferrite	1.6 µH	Nonstandard	Drum Core Wirewound
TDK Corporation VLCF5028T-1R8N2R2-2	0.197 "	5 mm	0.197 in	5 mm	2.22 A			2.22 A	30 %	100 kHz	Shielded	28 mOhm	Surface Mount	-40 C	105 ░C	Ferrite	1.8 µH	Nonstandard	Drum Core Wirewound
TDK Corporation VLCF4028T-471MR14-2	0.157 "	4 mm	0.157 in	4 mm	140 mA			140 mA	20 %	100 kHz	Shielded		Surface Mount	-40 C	105 ░C	Ferrite	470 µH	Nonstandard	Drum Core Wirewound	4.58 Ohm
TDK Corporation VLCF4024T-470MR44-2	0.157 "	4 mm	0.157 in	4 mm	0.44 A	2.4 mm	0.094 in	440 mA	20 %	100 kHz	Shielded		Surface Mount	-40 C	105 ░C	Ferrite	47 µH	Nonstandard	Drum Core Wirewound	644 mOhm
TDK Corporation VLCF5020T-150MR90-1	0.197 "	5 mm	0.197 in	5 mm	900 mA			900 mA	20 %	100 kHz	Shielded		Surface Mount	-40 C	105 ░C	Ferrite	15 µH	Nonstandard	Drum Core Wirewound	350 mOhm	0.079 in	2 mm
