LNK6769 Series
Manufacturer: POWER INTEGRATIONS
Beta
⌘K
AC/DC CONVERTER, FLYBACK, 85 VAC TO 265 VAC IN, 39 W, EDIP-11
| Part | Fault Protection | Topology | Internal Switch(s) | Duty Cycle | Package / Case | Frequency - Switching [Min] | Frequency - Switching [Max] | Output Isolation | Supplier Device Package | Mounting Type | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Breakdown |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

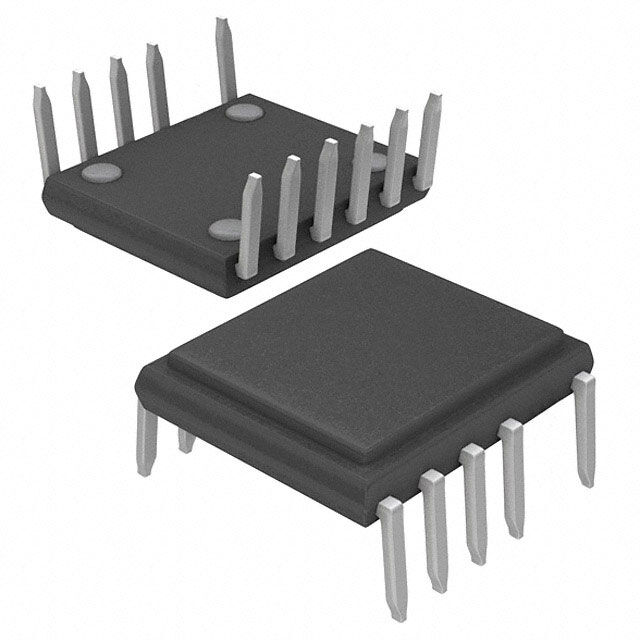

 POWER INTEGRATIONS | Current Limiting Over Load Over Temperature Over Voltage Short Circuit | Flyback | 64 % | 12-SDIP (0.412" 10.46mm) 11 Leads Exposed Pad | 120 kHz | 136 kHz | Isolated | eDIP-12 | Through Hole | 54 W | -40 °C | 150 °C | 650 V | |
 POWER INTEGRATIONS | Current Limiting Over Load Over Temperature Over Voltage Short Circuit | Flyback | 64 % | 12-BESOP (0.350" 8.89mm Width) 11 Leads Exposed Pad | 120 kHz | 136 kHz | Isolated | 12-ESOP | Surface Mount | 77 W | -40 °C | 150 °C | 650 V |
