SMS6G Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT 6POS 0.2 PCB R/A

Part	Contact Shape	Insulation Material	Contact Material	Connector Type	Row Spacing - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Contact Length - Post	Number of Positions Loaded	Number of Rows	Termination	Current Rating	Insulation Color	Material Flammability Rating	Features	Contact Type	Style	Mounting Type	Pitch - Mating	Number of Positions	Ingress Protection	Fastening Type	Contact Finish - Mating	Shrouding	Contact Length - Mating	Contact Finish Thickness - Mating	Insulation Height	Contact Finish Thickness - Post	Overall Contact Length	Contact Finish - Post	Contact Finish Thickness - Mating

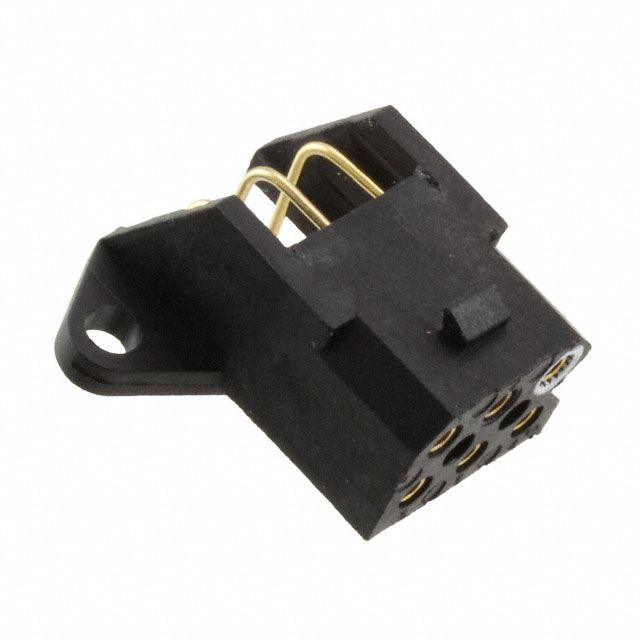

Amphenol Aerospace Operations SMS6GE53	Circular	Glass Filled Thermoplastic	Copper Alloy	Receptacle	0.2 in	-55 °C	105 °C	0.177 in	All	2	Solder	7.5 A	Black	UL94 V-0	Mounting Flange	Female Socket	Board Board or Cable	Right Angle Through Hole	0.2 in	6	IP40	Locking Ramp

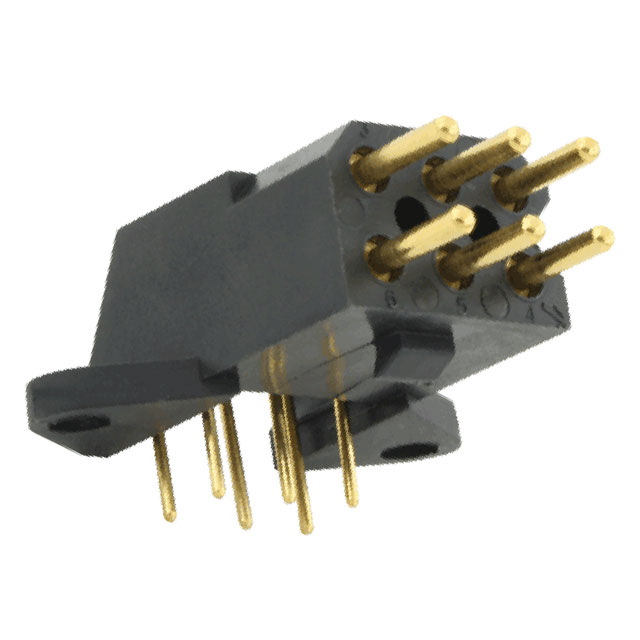

Amphenol Aerospace Operations SMS6GE6	Circular	Glass Filled Polyester	Brass	Header	0.2 in	-55 °C	105 °C	0.177 in	All	2	Solder	7.5 A	Black	UL94 V-0	Mounting Flange	Male Pin	Board Cable/Wire	Right Angle Through Hole	0.2 in	6	IP40	Locking Ramp	Gold	Unshrouded	0.28 in	16 µin	0.469 in

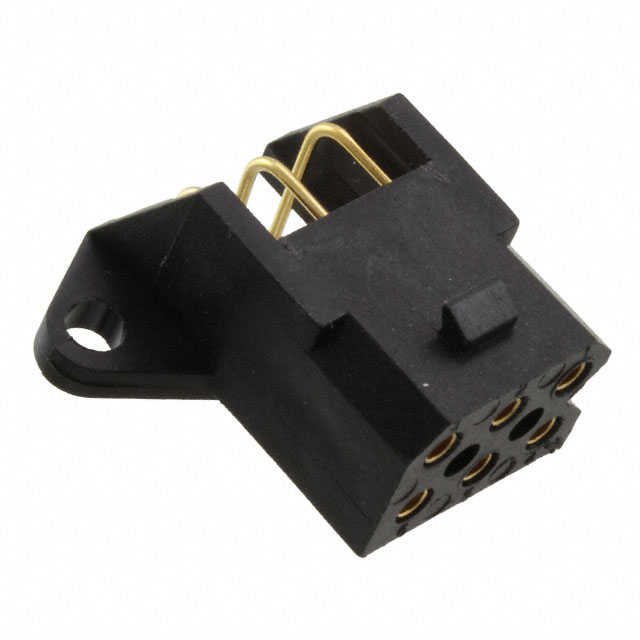

Amphenol Aerospace Operations SMS6GE5	Circular	Glass Filled Thermoplastic	Copper Alloy	Receptacle	0.2 in	-55 °C	105 °C	0.177 in	All	2	Solder	7.5 A	Black	UL94 V-0	Mounting Flange	Female Socket	Board Board or Cable	Right Angle Through Hole	0.2 in	6	IP40	Locking Ramp	Gold			16 µin
Amphenol Aerospace Operations SMS6GE4T	Circular	Glass Filled Polyester	Brass	Header	0.2 in	-55 °C	105 °C	0.138 in	All	2	Solder	7.5 A	Black	UL94 V-0	Mounting Flange	Male Pin	Board Cable/Wire	Through Hole	0.2 in	6	IP40	Locking Ramp	Tin	Unshrouded	0.28 in	118.1 µin	0.526 in	118.1 µin	0.939 in	Tin
Amphenol Aerospace Operations SMS6GE3	Circular	Glass Filled Thermoplastic	Copper Alloy	Receptacle	0.2 in	-55 °C	105 °C	0.134 in	All	2	Solder	7.5 A	Black	UL94 V-0	Mounting Flange	Female Socket	Board Board or Cable	Through Hole	0.2 in	6	IP40	Locking Ramp	Gold			16 µin	0.528 in
Amphenol Aerospace Operations SMS6GE5T	Circular	Glass Filled Thermoplastic	Copper Alloy	Receptacle	0.2 in	-55 °C	105 °C	0.177 in	All	2	Solder	7.5 A	Black	UL94 V-0	Mounting Flange	Female Socket	Board Board or Cable	Right Angle Through Hole	0.2 in	6	IP40	Locking Ramp	Tin			118.1 µin		118.1 µin		Tin
Amphenol Aerospace Operations SMS6GE6T	Circular	Glass Filled Polyester	Brass	Header	0.2 in	-55 °C	125 °C	0.177 in	All	2	Solder	7.5 A	Black	UL94 V-0	Mounting Flange	Male Pin	Board Cable/Wire	Right Angle Through Hole	0.2 in	6	IP40	Locking Ramp	Tin	Unshrouded	0.28 in	118.1 µin	0.469 in	118.1 µin		Tin
Amphenol Aerospace Operations SMS6GE3J	Circular	Glass Filled Thermoplastic	Copper Alloy	Receptacle	0.2 in	-55 °C	105 °C	0.134 in	All	2	Solder	7.5 A	Black	UL94 V-0	Mounting Flange	Female Socket	Board Board or Cable	Through Hole	0.2 in	6	IP40	Locking Ramp	Gold				0.528 in				Flash
