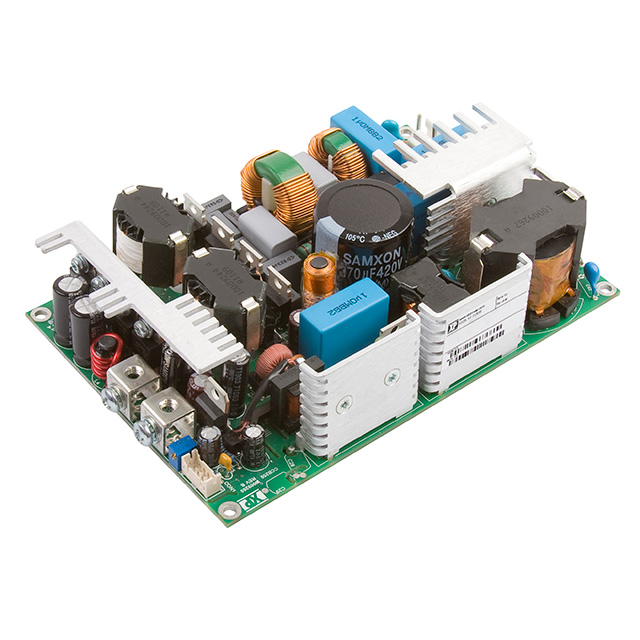

CCB250 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC CONVERTER 28V 249W
| Part | Minimum Load Required | Efficiency | Standard Number | Features | Mounting Type | Voltage - Output 1 | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Type | Number of Outputs | Current - Output 1 | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Applications | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | 95 % | 62368-1 | Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input | Chassis Mount | 28 V | 38.1 mm | 152.4 mm | 4 " | 1.5 in | 101.6 mm | 6 " | Open Frame | 1 | 8.9 A | 249 W | 70 °C | -20 °C | CB TUV UL | ITE (Commercial) Medical | 80 VAC | 275 VAC | 4000 V | |
 XP Power | 95 % | 62368-1 | Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input | Chassis Mount | 24 V | 38.1 mm | 152.4 mm | 4 " | 1.5 in | 101.6 mm | 6 " | Open Frame | 1 | 10.4 A | 250 W | 70 °C | -20 °C | CB TUV UL | ITE (Commercial) Medical | 80 VAC | 275 VAC | 4000 V | |
XP Power | 95 % | 62368-1 | Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input | Chassis Mount | 12 V | 38.1 mm | 152.4 mm | 4 " | 1.5 in | 101.6 mm | 6 " | Open Frame | 1 | 20.8 A | 250 W | 70 °C | -20 °C | CB TUV UL | ITE (Commercial) Medical | 80 VAC | 275 VAC | 4000 V |
