XW5T Series

Catalog

DIN RAIL TERMINAL BLOCKS TERMBLK SCREW 35MM 1:1 1TIER

Part	Material Flammability Rating	Material - Insulation	Stripping Length [custom]	Number of Positions	Termination Style	Number of Levels	Current - UL	Type	Current - IEC	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Voltage - UL	Color	Terminal - Width [y]	Voltage - IEC	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - AWG [Min]	Stripping Length

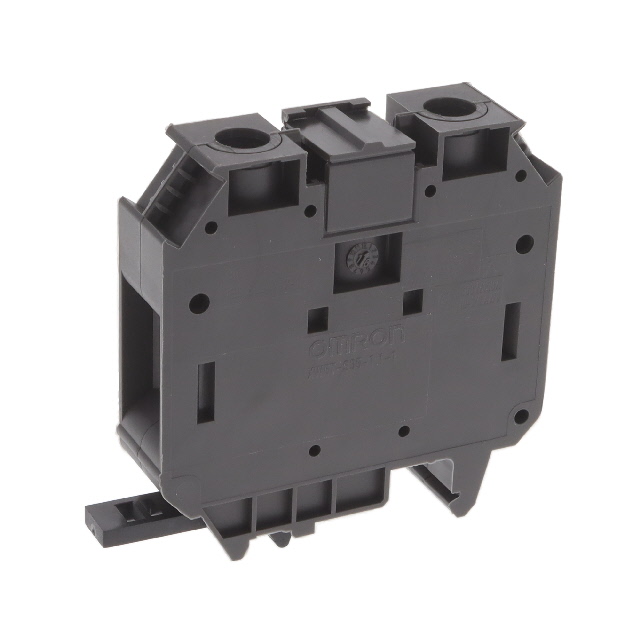

Omron Automation and Safety XW5T-S35-1.1-1	UL94 V-0	Nylon Polyamide (PA)	18 mm	2	Screw	1	150 A	Feed Through	124 A	10 AWG	1/0	600 V	Gray	16 mm	800 V	35 mm²	10 mm²
Omron Automation and Safety XW5T-P2.5-1.1-2				4	Push In	2	20 A	Feed Through	22 A	26 AWG		600 V	Gray	5.2 mm	500 V	4 mm²	0.14 mm²	12 AWG
Omron Automation and Safety XW5T-P1.5-1.2-1					Push In	1		Feed Through	17.5 A	26 AWG			Gray	3.5 mm	500 V	1.5 mm²	0.14 mm²	14 AWG
Omron Automation and Safety XW5T-S2.5-1.1-1				2	Screw	1	20 A	Feed Through	24 A	26 AWG		600 V	Gray	5 mm	1 kV	4 mm²	0.14 mm²	12 AWG
Omron Automation and Safety XW5T-S16-1.1-1	UL94 V-0	Nylon Polyamide (PA)		2	Screw	1	85 A	Feed Through	76 A	14 AWG		600 V	Gray	12 mm	1 kV	16 mm²	1.5 mm²	4 AWG	15 mm
