AKM65 Series

Manufacturer: XP Power

Catalog

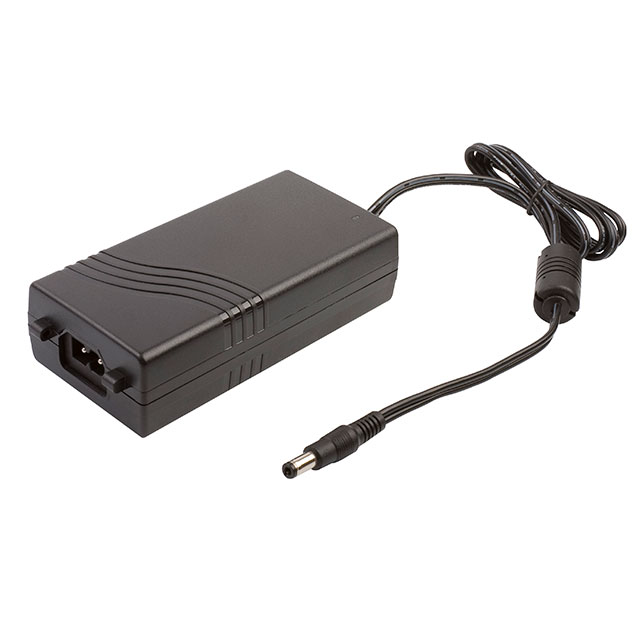

AC/DC POWER SUPPLY, ITE & MEDICAL, 1 OUTPUT, 65 W, 24 V, 2.7 A

Part	Current - Output (Max) [Max]	Operating Temperature [Max]	Input Type	Voltage - Input [Max]	Voltage - Input [Min]	Input Connector	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	Form	No Load Power Consumption	Power (Watts)	Standard Number	Voltage - Output	Cord Length	Cord Length	Efficiency	Output Connector [diameter]	Output Connector	Output Connector [x]	Region Utilized
XP Power AKM65US24C2	2.7 A	60 °C	Cord (Sold Separately)	264 VAC	90 VAC	IEC 320-C8	ITE (Commercial) Medical	62.2 mm	1.33 in	2.45 in	125 mm	4.92 in	33.8 mm	CB CE CSA TUV UL	Desktop (Class II)	150 mW	65 W	60601-1; 62368-1	24 V	1 m	39.4 in	CoC Tier 2 Level VI	2.5 mm 5.5 mm	Barrel Plug	11 mm	International
XP Power AKM65US15	4.3 A	60 °C	Cord (Sold Separately)	264 VAC	90 VAC	IEC 320-C14	ITE (Commercial) Medical	62.2 mm	1.33 in	2.45 in	125 mm	4.92 in	33.8 mm	CB CE CSA TUV UL	Desktop (Class I)	150 mW	65 W	60601-1; 62368-1	15 V	1 m	39.4 in	CoC Tier 2 Level VI	2.5 mm 5.5 mm	Barrel Plug	11 mm	International
XP Power AKM65US48	1.35 A	60 °C	Cord (Sold Separately)	264 VAC	90 VAC	IEC 320-C14	ITE (Commercial) Medical	62.2 mm	1.33 in	2.45 in	125 mm	4.92 in	33.8 mm	CB CE CSA TUV UL	Desktop (Class I)	150 mW	65 W	60601-1; 62368-1	48 V	1 m	39.4 in	CoC Tier 2 Level VI	2.5 mm 5.5 mm	Barrel Plug	11 mm	International
XP Power AKM65US18	3.6 A	60 °C	Cord (Sold Separately)	264 VAC	90 VAC	IEC 320-C14	ITE (Commercial) Medical	62.2 mm	1.33 in	2.45 in	125 mm	4.92 in	33.8 mm	CB CE CSA TUV UL	Desktop (Class I)	150 mW	65 W	60601-1; 62368-1	18 V	1 m	39.4 in	CoC Tier 2 Level VI	2.5 mm 5.5 mm	Barrel Plug	11 mm	International
XP Power AKM65US48C2	1.35 A	60 °C	Cord (Sold Separately)	264 VAC	90 VAC	IEC 320-C8	ITE (Commercial) Medical	62.2 mm	1.33 in	2.45 in	125 mm	4.92 in	33.8 mm	CB CE CSA TUV UL	Desktop (Class II)	150 mW	65 W	60601-1; 62368-1	48 V	1 m	39.4 in	CoC Tier 2 Level VI	2.5 mm 5.5 mm	Barrel Plug	11 mm	International
XP Power AKM65US12C2	5.42 A	60 °C	Cord (Sold Separately)	264 VAC	90 VAC	IEC 320-C8	ITE (Commercial) Medical	62.2 mm	1.33 in	2.45 in	125 mm	4.92 in	33.8 mm	CB CE CSA TUV UL	Desktop (Class II)	150 mW	65 W	60601-1; 62368-1	12 V	1 m	39.4 in	CoC Tier 2 Level VI	2.5 mm 5.5 mm	Barrel Plug	11 mm	International
XP Power AKM65US24	2.7 A	60 °C	Cord (Sold Separately)	264 VAC	90 VAC	IEC 320-C14	ITE (Commercial) Medical	62.2 mm	1.33 in	2.45 in	125 mm	4.92 in	33.8 mm	CB CE CSA TUV UL	Desktop (Class I)	150 mW	65 W	60601-1; 62368-1	24 V	1 m	39.4 in	CoC Tier 2 Level VI	2.5 mm 5.5 mm	Barrel Plug	11 mm	International
