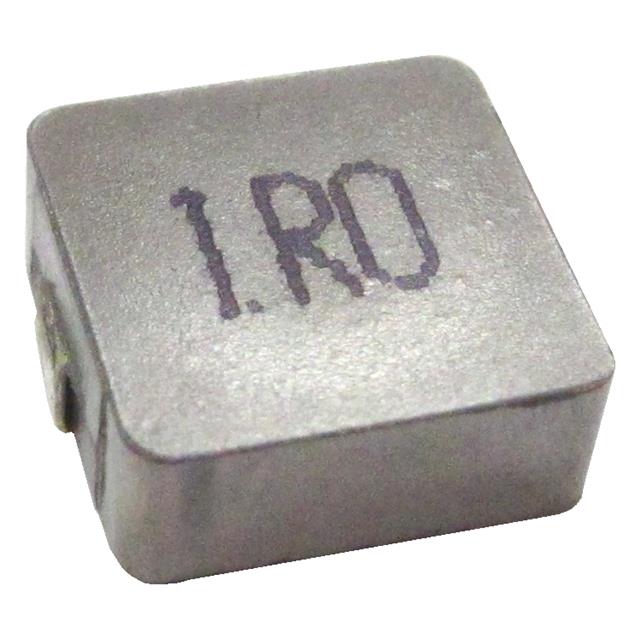

BMMA Series

Catalog

POWER INDUCTORS - SMD CHILISIN POWER - INDUCTOR (IND) CLOSED MAGNETIC CIRCUIT TYPEMOLDING PROCESSING & FOR ULTRA HIGH CURRENT

Part	Height - Seated (Max)	Height - Seated (Max) [Max]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Inductance	DC Resistance (DCR) [Max]	Tolerance	Inductance Frequency - Test	Current - Saturation (Isat)	Shielding	Type	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	DC Resistance (DCR)	Height - Seated (Max) [Max]
Pulse Electronics BMMA001010402R2MI8	4 mm	0.157 in	Nonstandard	-55 C	125 °C	Surface Mount	2.2 µH	5.5 mOhm	20 %	100 kHz	20 A	Shielded	Molded	15 A	10 mm	11.5 mm	0.453 "	0.394 in
Pulse Electronics BMMA00050530R10MV1			Nonstandard	-55 C	125 °C	Surface Mount	100 nH	3.16 mOhm	20 %	100 kHz	27 A	Shielded	Molded	23 A	5.18 mm	5.49 mm	0.216 in	0.204 in	0.118 "	3 mm
Pulse Electronics BMMA001010405R6MV1	4 mm	0.157 in	Nonstandard	-55 C	125 °C	Surface Mount	5.6 µH	19.3 mOhm	20 %	100 kHz	16 A	Shielded	Molded	8.5 A	10 mm	11.5 mm	0.453 "	0.394 in
Pulse Electronics BMMA000606503R3MV1		0.197 in	Nonstandard	-55 C	125 °C	Surface Mount	3.3 µH	20.9 mOhm	20 %	100 kHz	8 A	Shielded	Molded	8 A	6.47 mm	6.86 mm	0.27 in	0.255 in			5 mm
Pulse Electronics BMMA001313504R7MV1		0.197 in	Nonstandard	-55 C	125 °C	Surface Mount	4.7 ÁH	15 mOhm	20 %	100 kHz	27 A	Shielded	Molded	12 Amps	12.9 mm	13.2 mm	0.52 in	0.508 in			5 mm
Pulse Electronics BMMA00060630R10MX1			Nonstandard	-55 C	125 °C	Surface Mount	100 nH		20 %	100 kHz	60 A	Shielded	Molded	32.5 A	6.6 mm	6.95 mm	0.274 in	0.26 in	0.118 "	3 mm		1.7 mOhm
Pulse Electronics BMMA00101040100MX1	4 mm	0.157 in	Nonstandard	-55 C	125 °C	Surface Mount	10 µH	30 mOhm	20 %	100 kHz	6 A	Shielded	Molded	6 A	10 mm	11.5 mm	0.453 "	0.394 in
Pulse Electronics BMMA000404201R0MX2			Nonstandard	-55 C	125 °C	Surface Mount	1 µH		20 %	100 kHz	7 A	Shielded	Molded	4.5 A	4.06 mm	4.45 mm	0.175 in	0.16 in			0.079 in	27 mOhm	2 mm
Pulse Electronics BMMA000606183R3MV1		0.071 in	Nonstandard	-55 C	125 °C	Surface Mount	3.3 µH	60.1 mOhm	20 %	100 kHz	10 A	Shielded	Molded	3.25 A	6.47 mm	6.86 mm	0.27 in	0.255 in			1.8 mm
Pulse Electronics BMMA000808301R0MV1			Nonstandard	-55 C	125 °C	Surface Mount	1 µH	8.35 mOhm	20 %	100 kHz	29 A	Shielded	Molded	13.7 A	8.1 mm	8.3 mm	0.327 in	0.319 "	0.118 "	3 mm
