2372484 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

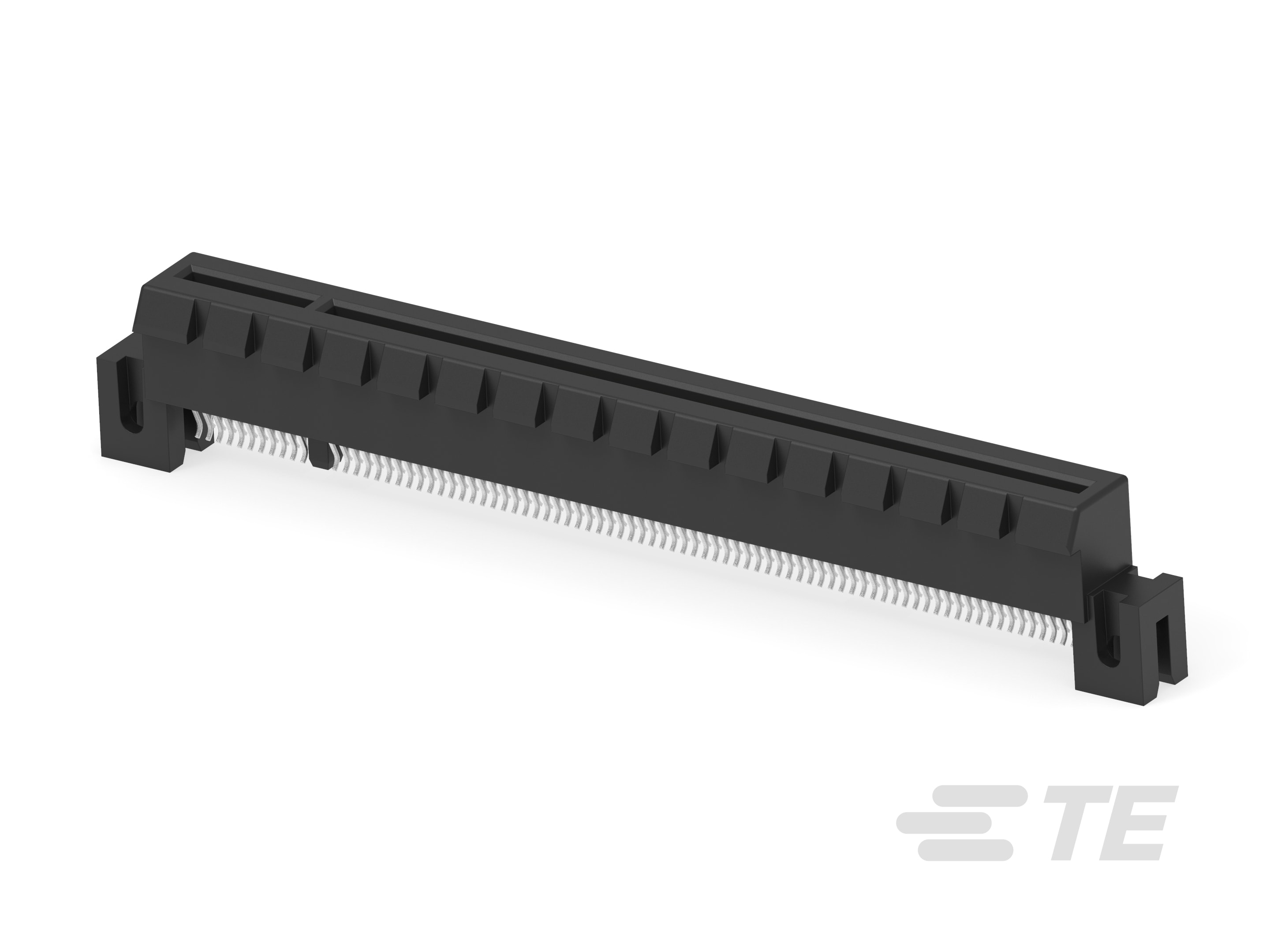

PCIEG4,SMT,STRADDLE,164POS,G/F

Part	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Flange Feature	Flange Feature	Flange Feature	Material - Insulation	Number of Positions	Features	Read Out	Card Thickness	Card Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Color	Gender	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Pitch [x]	Pitch [x]	Card Type	Contact Finish	Number of Rows	Contact Material	Mounting Type	Termination	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]
TE Connectivity Raychem Cable Protection 4-2372484-4	Cantilever	15 µin	0.38 µm	2	Straddle Mount Opening Unthreaded	2.2 mm	0.087 in	Glass Filled Nylon 9T Polyamide (PA9T)	164	Locking Ramp	Dual	0.062 in	1.57 mm	85 °C	-40 °C	Black	Female	71	11	0.039 in	1 mm	PCI Express™	Gold	2	Phosphor Bronze	Board Edge Straddle Mount	Solder
TE Connectivity Raychem Cable Protection 1-2372484-4	Cantilever	15 µin	0.38 µm	2	Straddle Mount Opening Unthreaded	2.2 mm	0.087 in	Glass Filled Nylon 9T Polyamide (PA9T)	164	Locking Ramp	Dual	0.062 in	1.57 mm	85 °C	-40 °C	Black	Female	71	11	0.039 in	1 mm	PCI Express™	Gold	2	Phosphor Bronze	Board Edge Straddle Mount	Solder
TE Connectivity Raychem Cable Protection 2372484-4	Cantilever	1 µin	0.025 µm	2	Straddle Mount Opening Unthreaded	2.2 mm	0.087 in	Glass Filled Nylon 9T Polyamide (PA9T)	164	Locking Ramp	Dual	0.062 in	1.57 mm	85 °C	-40 °C	Black	Female	71	11	0.039 in	1 mm	PCI Express™	Gold	2	Phosphor Bronze	Board Edge Straddle Mount	Solder

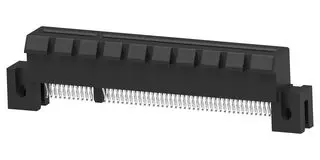

TE Connectivity Raychem Cable Protection 1-2372484-3	Cantilever	15 µin	0.38 µm	2	Straddle Mount Opening Unthreaded	2.2 mm	0.087 in	Glass Filled Nylon 9T Polyamide (PA9T)	98	Locking Ramp	Dual	0.062 in	1.57 mm	85 °C	-40 °C	Black	Female			0.039 in	1 mm	PCI Express™	Gold	2	Phosphor Bronze	Board Edge Straddle Mount	Solder	38	11
TE Connectivity Raychem Cable Protection 2372484-3	Cantilever	1 µin	0.025 µm	2	Straddle Mount Opening Unthreaded	2.2 mm	0.087 in	Glass Filled Nylon 9T Polyamide (PA9T)	98	Locking Ramp	Dual	0.062 in	1.57 mm	85 °C	-40 °C	Black	Female			0.039 in	1 mm	PCI Express™	Gold	2	Phosphor Bronze	Board Edge Straddle Mount	Solder	38	11
TE Connectivity Raychem Cable Protection 3-2372484-4
TE Connectivity Raychem Cable Protection 2372484-2

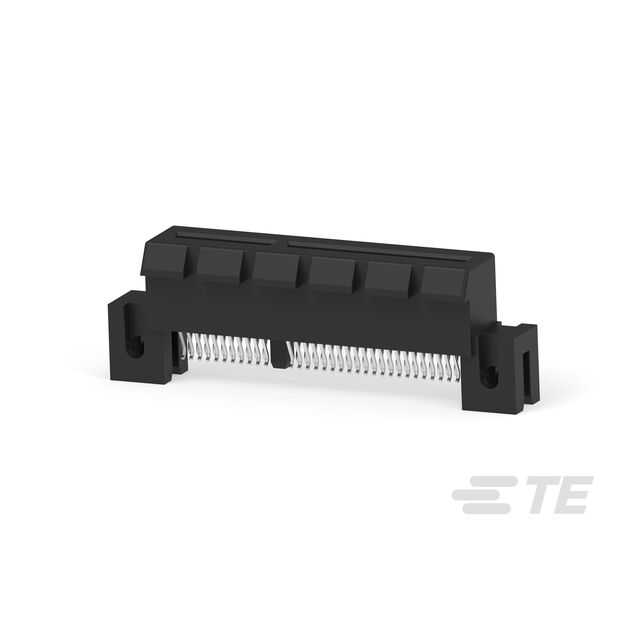

TE Connectivity Raychem Cable Protection 1-2372484-2	Cantilever	15 µin	0.38 µm	2	Straddle Mount Opening Unthreaded	2.2 mm	0.087 in	Glass Filled Nylon 9T Polyamide (PA9T)	64	Locking Ramp	Dual	0.062 in	1.57 mm	85 °C	-40 °C	Black	Female			0.039 in	1 mm	PCI Express™	Gold	2	Phosphor Bronze	Board Edge Straddle Mount	Solder	21	11
TE Connectivity Raychem Cable Protection 2372484-1
