SSL-LX2579 Series

Catalog

LED GRN/RED DIFF RECT 2X5MM T/H

Part	Viewing Angle	Height (Max) [Max] [z]	Millicandela Rating	Lens Transparency	Voltage - Forward (Vf) (Typ)	Current - Test [custom]	Current - Test [custom]	Wavelength - Peak	Package / Case	Lens Color	Configuration	Lens Size [y]	Lens Size [x]	Mounting Type	Supplier Device Package	Color	Lens Style	Millicandela Rating [custom]	Millicandela Rating [custom]
Lumex Opto/Components Inc. SSL-LX2579IGW-CA	110 °	10.5 mm	3 mcd 3 mcd	Diffused	2.1 V 2.1 V	20 mA	20 mA	565 nm 635 nm	Radial - 3 Leads	White	Common Anode	2 mm	5 mm	Through Hole	Rectangular 2mmx5mm	Green Red	Rectangle with Flat Top
Lumex Opto/Components Inc. SSL-LX2579GIW	110 °	10.5 mm		Diffused	2.1 V 2.1 V	20 mA	20 mA	565 nm 635 nm	Radial - 3 Leads	White	Common Cathode	2 mm	5 mm	Through Hole	Rectangular 2mmx5mm	Green Red	Rectangle with Flat Top	14 mcd	8 mcd
Lumex Opto/Components Inc. SSL-LX2579YGW

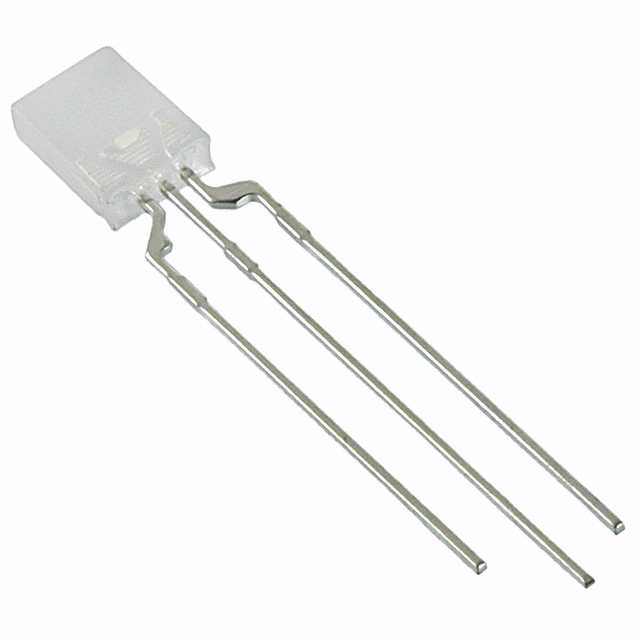

Lumex Opto/Components Inc. SSL-LX2579IGW	110 °	10.5 mm		Diffused	2.1 V 2.1 V	20 mA	20 mA	565 nm 635 nm	Radial - 3 Leads	White	Common Cathode	2 mm	5 mm	Through Hole	Rectangular 2mmx5mm	Green Red	Rectangle with Flat Top	14 mcd	8 mcd
