ESD7424 Series

30kV Capable Ultra-Low Capacitance 24V ESD Protection

Catalog

30kV Capable Ultra-Low Capacitance 24V ESD Protection

Part	Voltage - Breakdown (Min) [Min]	Power Line Protection	Current - Peak Pulse (10/1000µs)	Capacitance @ Frequency	Supplier Device Package	Type	Bidirectional Channels [custom]	Applications	Qualification	Mounting Type	Grade	Package / Case	Voltage - Clamping (Max) @ Ipp	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Reverse Standoff (Typ)

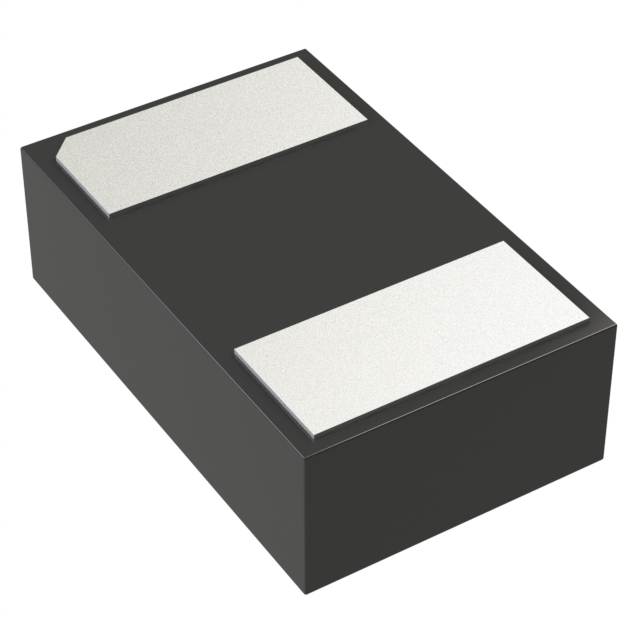

ON Semiconductor SZESD7424MUT5G	26 V		16 A	0.6 pF	2-UDFN (1.6x1)	Zener	1	Telecom USB	AEC-Q101	Surface Mount	Automotive	2-UDFN	45 V	-55 °C	150 °C	24 V

Catalog

30kV Capable Ultra-Low Capacitance 24V ESD Protection

Key Features

• IEC 61000-4-2 (ESD) Level 4 +/-30kV Contact

• Industry Leading Capacitance Linearity Over Voltage

• Ultra-Low Capacitance < 1.0pF Max

• Low Leakage < 1uA

• ISO 10605 (ESD) 330pF/330Ω +/-30kV Contact

Description

The ESD7424 is designed to protect voltage sensitive components that require ultra−low capacitance from ESD and transient voltage events. It has industry leading capacitance linearity over voltage making it ideal for RF applications. This capacitance linearity combined with the extremely small package and low insertion loss makes this part well suited for use in antenna line applications for wireless handsets and terminals.
