9221 Series
Manufacturer: Belden Inc.
Beta
⌘K

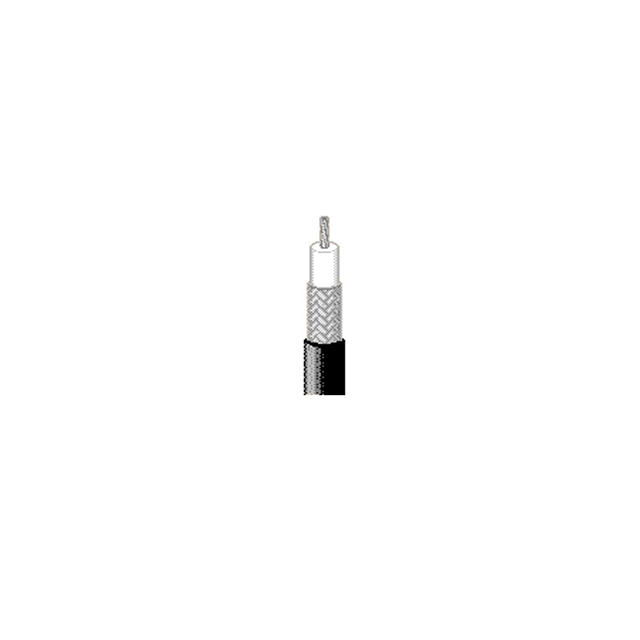

75 OHM MINIATURE COAX
| Part | VoP, Velocity of Propagation | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Coverage | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Jacket (Insulation) Material | Jacket Color | Shield Type | Usage | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Length [x] | Length [x] | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 78 | 1.47 mm | 0.058 in | 90 % | Copper Tinned | 75 ░C | -30 ░C | Copper Tinned | Poly-Vinyl Chloride (PVC) | Black | Braid | Video | 30 AWG | 38 AWG | 7 Strands | 0.097 in | 2.46 mm | Coaxial | 152.4 m | 500 ft | 75 Ohms |
