YA-2RB Series

Catalog

SWITCH SNAP ACT SPST-NO 20A 125V

Part	Switch Function	Voltage Rating - DC	Current Rating (Amps)	Mounting Type	Termination Style	Circuit	Release Force	Voltage Rating - AC	Pretravel	Pretravel	Operating Force [Max]	Operating Force [Min]	Actuator Type	Operating Position	Operating Position	Differential Travel	Differential Travel	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Overtravel [custom]	Overtravel [custom]

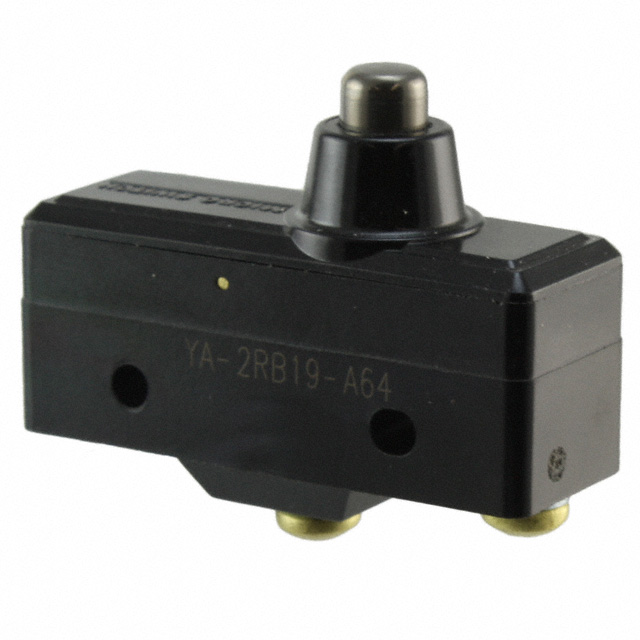

Honeywell Sensing and Productivity Solutions YA-2RB19-A64	Off-Mom	125 VDC	20 A 500 mA	Chassis Mount	Screw Terminal	SPST-NO	283 gf	125 V	0.05 in	1.27 mm	624 gf	397 gf	Round (Pin Plunger)	1.03 "	26.2 mm	0.007 in	0.18 mm	-55 C	85 °C	20000000 Cycles	2.4 mm	0.094 "
Honeywell Sensing and Productivity Solutions YA-2RB-A64	Off-Mom	125 VDC	20 A 500 mA	Chassis Mount	Screw Terminal	SPST-NO	283 gf	125 V	0.05 in	1.27 mm	624 gf	397 gf	Round (Pin Plunger)	1.03 "	26.2 mm	0.007 in	0.18 mm	-55 C	85 °C	20000000 Cycles	2.4 mm	0.094 "
