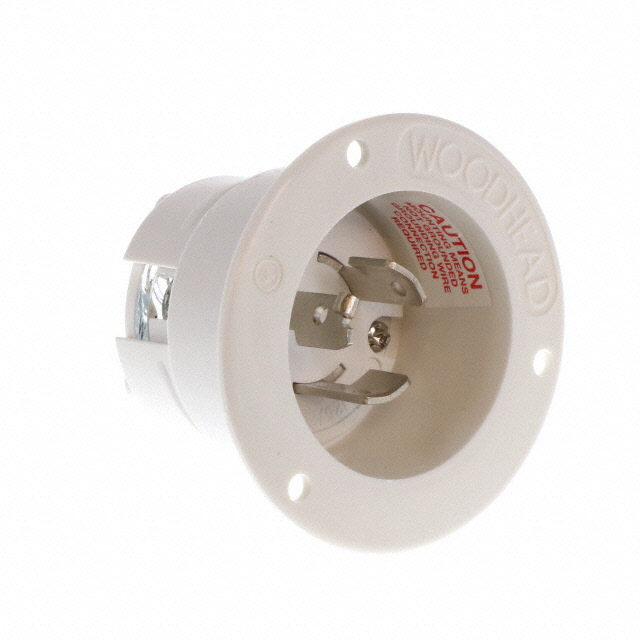

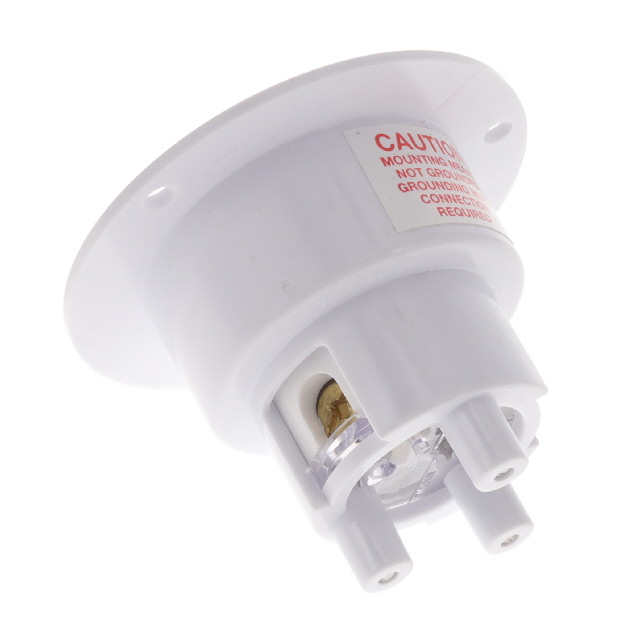

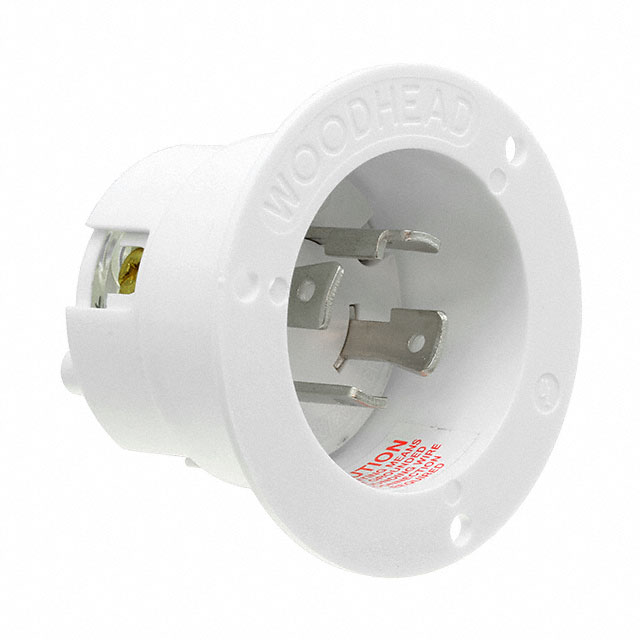

130149 Series
Safeway Flanged Receptacle with Locking Blade, 2 Pole/3 Wire, NEMA L6-15, 250V
Manufacturer: Molex
Catalog
Safeway Flanged Receptacle with Locking Blade, 2 Pole/3 Wire, NEMA L6-15, 250V
Beta
⌘K
Safeway Flanged Receptacle with Locking Blade, 2 Pole/3 Wire, NEMA L6-15, 250V
Safeway Flanged Receptacle with Locking Blade, 2 Pole/3 Wire, NEMA L6-15, 250V
Safeway Flanged Receptacle with Locking Blade, 2 Pole/3 Wire, NEMA L6-15, 250V
| Part | Voltage Rating | Voltage Rating | Number of Positions | Approval Agency | Connector Style | Mounting Type | Connector Type | Termination | Features | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Voltage Rating [Min] | Voltage Rating [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 3 Phase | 250 VAC | 4 | CSA UL | NEMA L15-30P | Flange Panel Mount | Male Blades Receptacle | Screw | Cord-Clamp Strain Relief Locking Blade | 30 A | 50 mm | ||
 Molex | CSA UL | NON-NEMA (3P3W) | Free Hanging (In-Line) | Male Blades Receptacle | Screw | Locking Blade | 20 A | 125 VAC | 250 VAC | ||||
 Molex | 4 | CSA UL | NEMA L14-30P | Flange Panel Mount | Male Blades Receptacle | Screw | Cord-Clamp Strain Relief Locking Blade | 30 A | 50 mm | 125 VAC | 250 VAC | ||
 Molex | 125 VDC | 2 | CSA UL | NEMA 1-15P | Flange Panel Mount | Male Blades Receptacle | Screw | 15 A | 50 mm | ||||
 Molex | 125 VDC | CSA UL | NEMA 5-15R | Outlet Box | Receptacle Female Sockets | Screw | 15 A | ||||||
Molex | |||||||||||||
 Molex | 125 VDC | CSA UL | NEMA 5-15R | Flange Panel Mount | Receptacle Female Sockets | Screw | 15 A | 50 mm | |||||
 Molex | 3 Phase | 480 VAC | 4 | UL | NEMA L16-30R | Outlet Box | Receptacle Female Sockets | Screw | Cord-Clamp Strain Relief Locking Blade | 30 A | |||
 Molex | 125 VDC | NEMA 5-20R | Flange Panel Mount | Receptacle Female Sockets | Screw | 20 A | |||||||
 Molex | 250 VDC | CSA UL | NEMA L6-20R | Outlet Box | Receptacle Female Sockets | Screw | Locking Blade | 20 A |
