323758 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

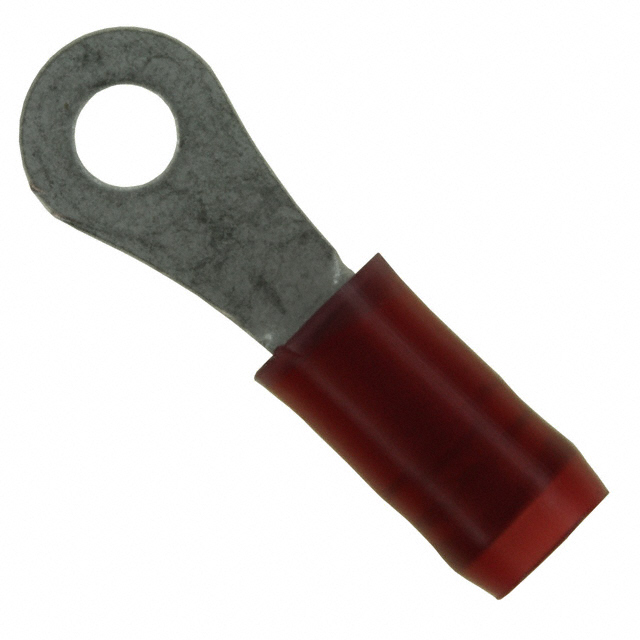

PIDG R 22-16 COMM 22-18 MIL 4 ROHS COMPLIANT: YES
| Part | Thickness | Thickness | Wire Gauge [Max] | Wire Gauge [Min] | Length - Overall [x] | Length - Overall [x] | Material - Insulation | Terminal Type | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Stud/Tab Size | Width - Outer Edges [y] | Width - Outer Edges [y] | Contact Finish | Contact Material | Insulation | Mounting Type | Color | Features | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.031 in | 0.79 mm | 22 AWG | 16 AWG | 0.844 " | 21.44 mm | Nylon Polyamide (PA) | Circular | 2.03 mm | 3.18 mm | 0.125 " | 0.08 in | 4 Stud | 0.25 " | 6.35 mm | Tin | Copper | Insulated | Free Hanging (In-Line) | Red | Serrated Termination | Crimp |
