6240 Series

Catalog

FFC & FPC CONNECTORS 54P ZIF RIGHT ANGLE SMT

Part	Current Rating (Amps)	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Flat Flex Type	FFC, FCB Thickness	Termination	Pitch	Pitch	Locking Feature	Cable End Type	Height Above Board	Height Above Board	Contact Finish	Mounting Type	Number of Positions	Connector/Contact Type	Contact Material	Features

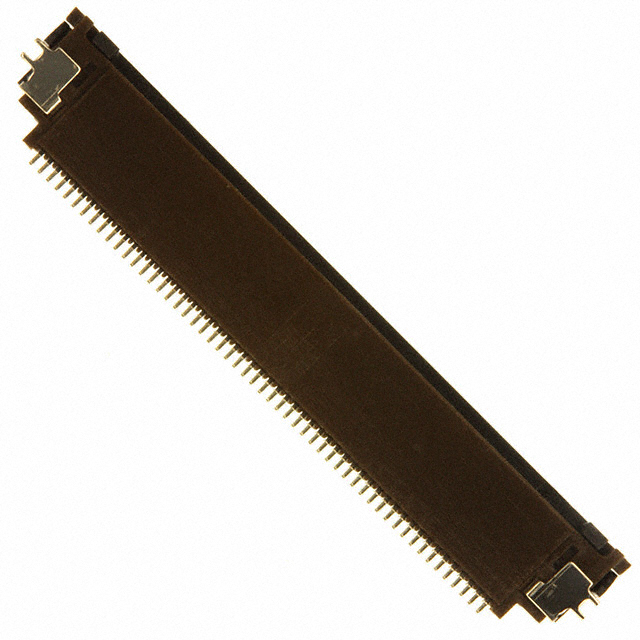

KYOCERA AVX 046240054005800+	400 mA	50 V	85 °C	-40 C	Plastic	FFC FPC	0.3 mm	Solder	0.02 "	0.5 mm	Flip Lock	Tapered	2 mm	0.079 in	Tin Copper	Right Angle Surface Mount	54	Contacts Bottom	Copper Alloy	Solder Retention Zero Insertion Force (ZIF)
KYOCERA AVX 046240050023846+	400 mA	50 V	85 °C	-40 C	Thermoplastic	FFC FPC	0.3 mm	Solder	0.02 "	0.5 mm	Flip Lock	Tapered	2 mm	0.079 in	Gold	Right Angle Surface Mount	50	Contacts Bottom	Copper Alloy	Solder Retention Zero Insertion Force (ZIF)
KYOCERA AVX 046240020026846+	400 mA	50 V	85 °C	-40 C	Thermoplastic	FFC FPC	0.3 mm	Solder	0.02 "	0.5 mm	Flip Lock	Tapered	2 mm	0.079 in	Gold	Right Angle Surface Mount	20	Contacts Bottom	Copper Alloy	Solder Retention Zero Insertion Force (ZIF)
KYOCERA AVX 046240006006800+	400 mA	50 V	85 °C	-40 C	Thermoplastic	FFC FPC	0.3 mm	Solder	0.02 "	0.5 mm	Flip Lock	Tapered	2 mm	0.079 in	Tin Copper	Right Angle Surface Mount	6	Contacts Bottom	Copper Alloy	Solder Retention Zero Insertion Force (ZIF)

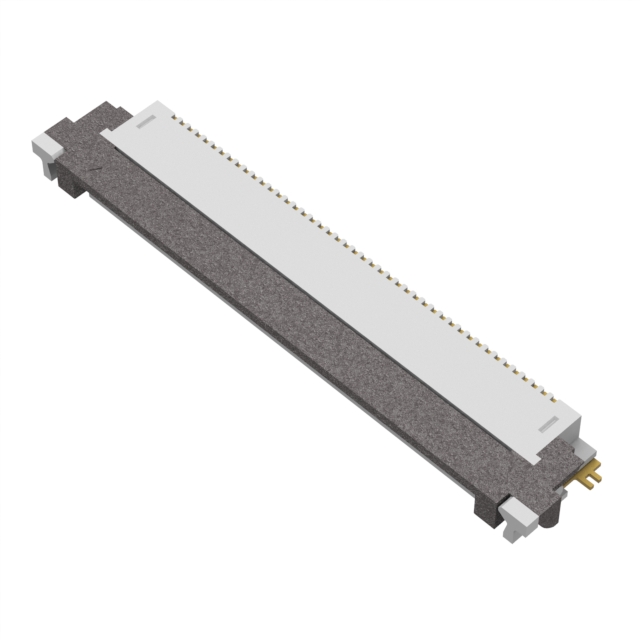

KYOCERA AVX 046240045023846+	400 mA	50 V	85 °C	-40 C	Thermoplastic	FFC FPC	0.3 mm	Solder	0.02 "	0.5 mm	Flip Lock	Tapered	2 mm	0.079 in	Gold	Right Angle Surface Mount	45	Contacts Bottom	Copper Alloy	Solder Retention Zero Insertion Force (ZIF)
KYOCERA AVX 046240030026846+	400 mA	50 V	85 °C	-40 C	Thermoplastic	FFC FPC	0.3 mm	Solder	0.02 "	0.5 mm	Flip Lock	Tapered	2 mm	0.079 in	Gold	Right Angle Surface Mount	30	Contacts Bottom	Copper Alloy	Solder Retention Zero Insertion Force (ZIF)
