10SVPS Series

Catalog

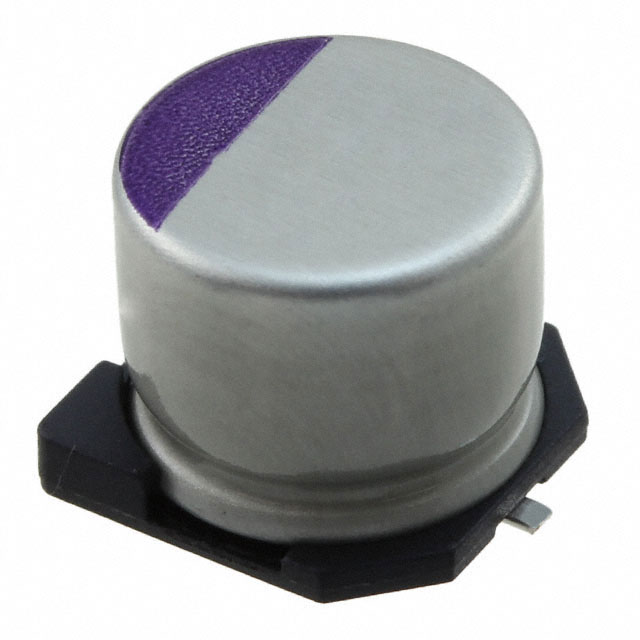

OS-CON, SVPS SERIES ROHS COMPLIANT: YES

Part	ESR (Equivalent Series Resistance)	Mounting Type	Ripple Current @ High Frequency	Lifetime @ Temp.	Voltage - Rated	Package / Case	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Applications	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Type	Tolerance	Height - Seated (Max)
Panasonic Electronic Components 10SVPS15M	200 mOhm	Surface Mount	740 mA	5000 Hrs	10 V	Radial Can - SMD	4.3 mm	0.169 "	0.169 in	4.3 mm	General Purpose	37 mA	0.217 "	5.5 mm	-55 C	105 ░C	4 mm	0.157 in	15 µF	Polymer	20 %
Panasonic Electronic Components 10SVPS150M	30 mOhms	Surface Mount	2.76 A	5000 Hrs	10 V	Radial Can - SMD	8.3 mm	0.327 in	0.327 in	8.3 mm	General Purpose	138 mA	0.276 in	7 mm	-55 C	105 ░C	8 mm	0.315 in	150 µF	Polymer	20 %
Panasonic Electronic Components 10SVPS330M	24 mOhms	Surface Mount	3.77 A	5000 Hrs	10 V	Radial Can - SMD	10.3 mm	0.406 in	0.406 "	10.3 mm	General Purpose	188.5 mA	0.315 in	8 mm	-55 C	105 ░C	10 mm	0.394 in	330 µF	Polymer	20 %
Panasonic Electronic Components 10SVPS68M	30 mOhms	Surface Mount	2.2 A	5000 Hrs	10 V	Radial Can - SMD	6.6 mm	0.26 in	0.26 in	6.6 mm	General Purpose	110 mA	0.236 "		-55 C	105 ░C	6.3 mm	0.248 "	68 µF	Polymer	20 %	6 mm
