b3f Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

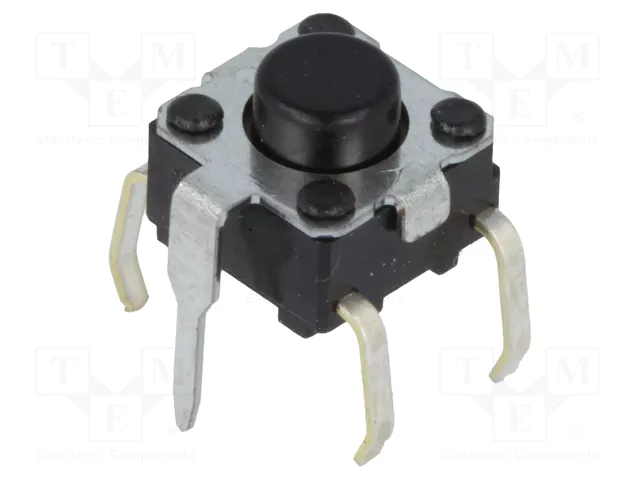

MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/24VDC; THT; NONE; 1.76N
| Part | Actuator Orientation | Actuator Type | Termination Style | Operating Force | Illumination | Outline [x] | Outline [y] | Contact Rating @ Voltage | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Height off PCB, Vertical [z] | Switch Function | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | Top Actuated | Plunger for Cap | PC Pin | 180 gf | Non-Illuminated | 6 mm | 6 mm | 0.05 A 24 VDC | SPST-NO | -25 °C | 70 °C | 7.3 mm | Off-Mom | Through Hole | |
 Omron Electronics Inc-EMC Div | Top Actuated | Standard | PC Pin | 100 gf | Non-Illuminated | 6 mm | 6 mm | 0.05 A 24 VDC | SPST-NO | -25 °C | 70 °C | 5 mm | Off-Mom | Through Hole | Grounding Pin |
