Axicom HF6 Series

Catalog

HF6 95 = 50OHM 140MW 9V BIST 2COIL

Part	Contact Material	Coil Resistance	Contact Rating (Current)	Release Time	Coil Current	Operate Time	Switching Voltage [Max]	Coil Type	Mounting Type	Must Operate Voltage	Coil Voltage	Termination Style	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Must Release Voltage	Coil Power
TE Connectivity AMP Connectors 1-1462052-9

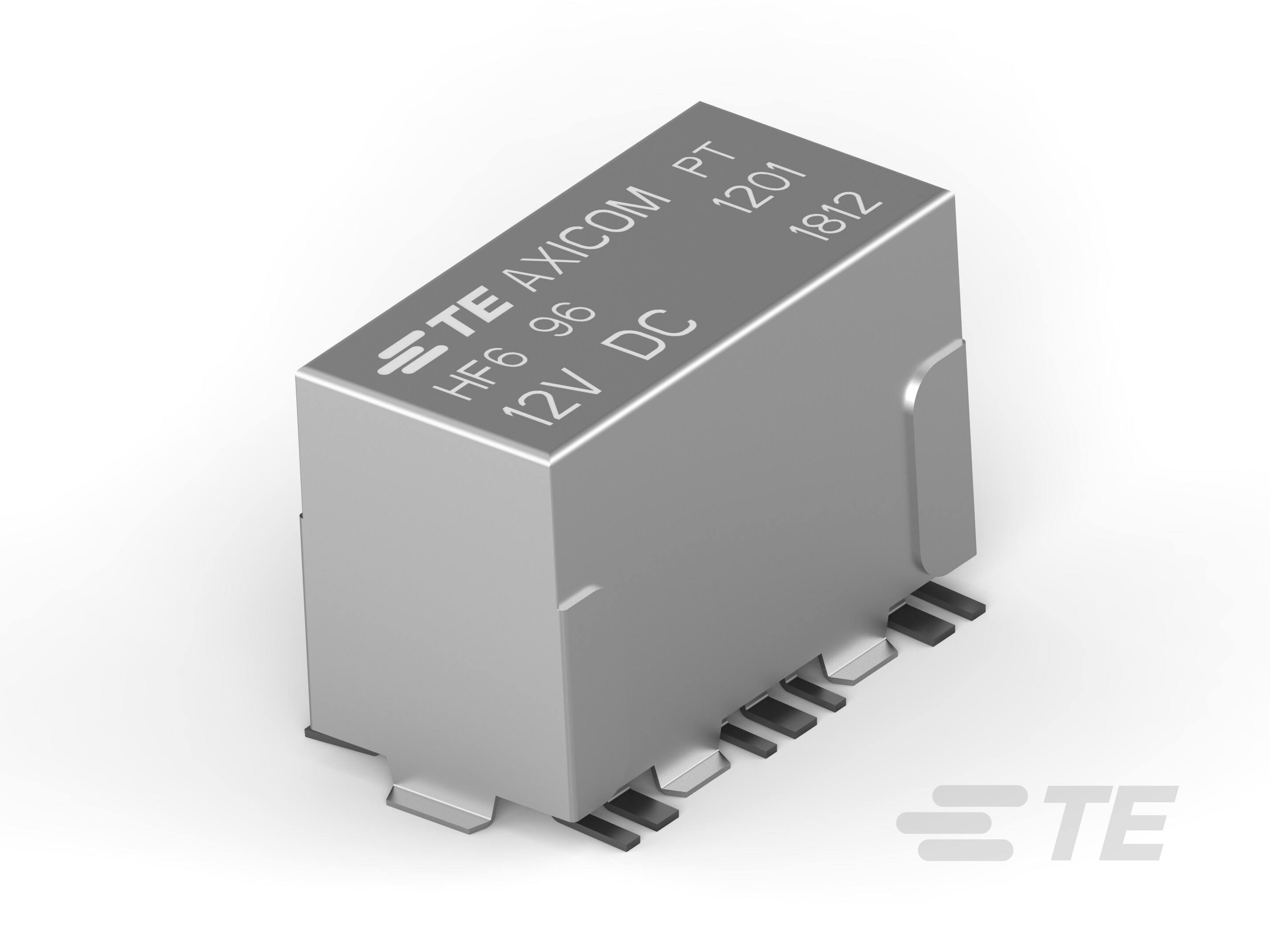

TE Connectivity AMP Connectors 2-1462052-0	Gold (Au) Silver (Ag)	1030 Ohms	2 A	5 ms	11.7 mA	5 ms	220 VDC 250 VAC	Dual Coil Latching	Surface Mount	9 VDC	12 VDC	Gull Wing	SPDT (1 Form C)	-55 C	85 °C
TE Connectivity AMP Connectors 1462052-1	Gold (Au) Silver (Ag)	64 Ohms	2 A	5 ms	46.9 mA	5 ms	220 VDC 250 VAC	Non Latching	Surface Mount	2.25 VDC		Gull Wing	SPDT (1 Form C)	-55 C	85 °C	0.3 VDC

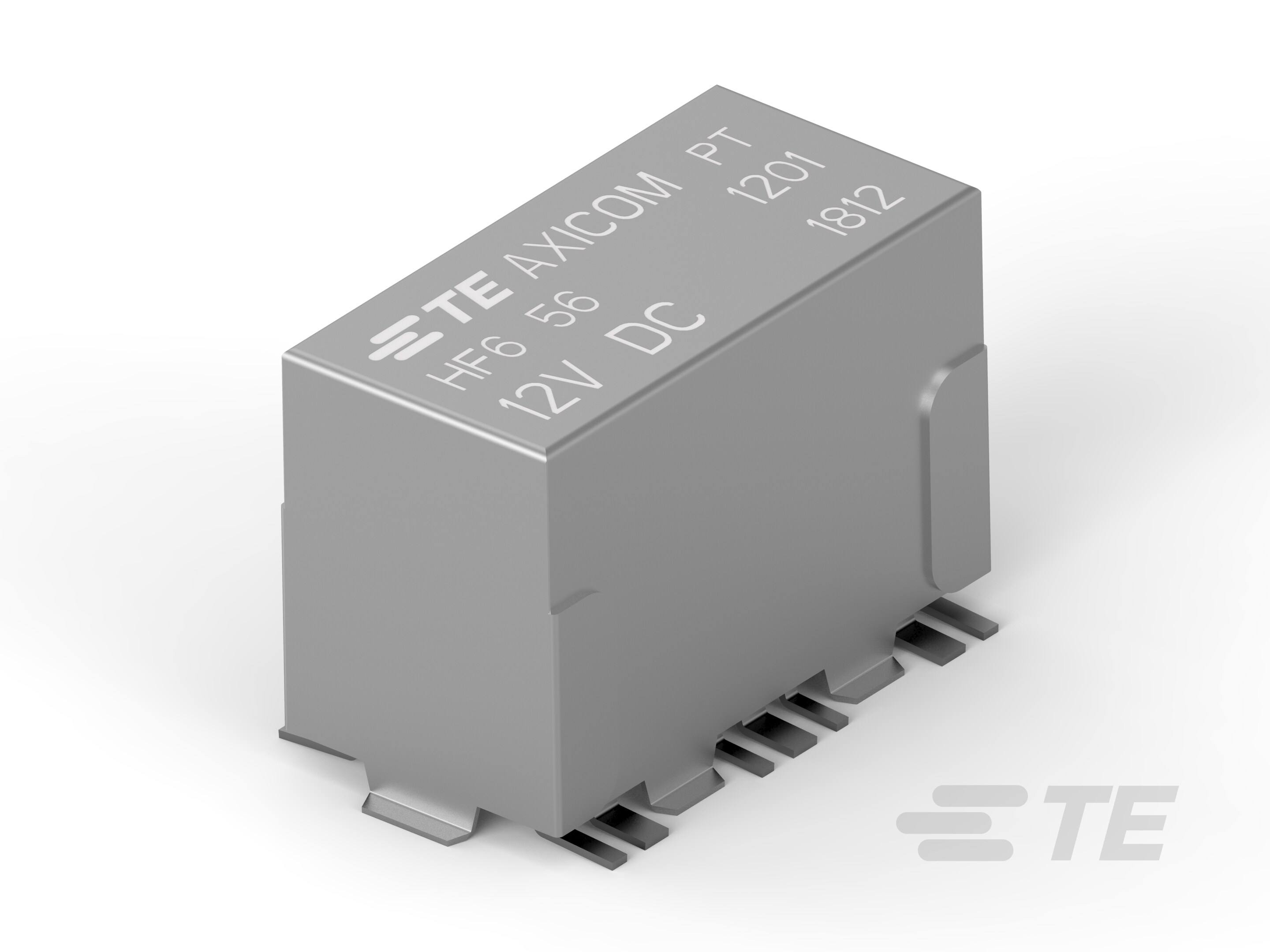

TE Connectivity AMP Connectors 1462052-6	Gold (Au) Silver (Ag)	1030 Ohms	2 A	5 ms	11.7 mA	5 ms	220 VDC 250 VAC	Non Latching	Surface Mount	9 VDC	12 VDC	Gull Wing	SPDT (1 Form C)	-55 C	85 °C	1.2 VDC

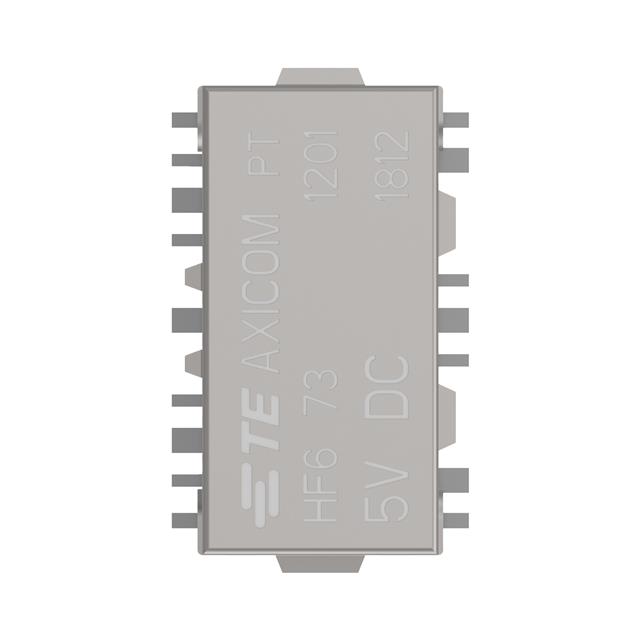

TE Connectivity AMP Connectors 1-1462052-0	Gold (Au) Silver (Ag)	357 Ohms	2 A	5 ms	14 mA	5 ms	220 VDC 250 VAC	Latching Single Coil	Surface Mount	3.75 VDC	5 VDC	Gull Wing	SPDT (1 Form C)	-55 C	85 °C		70 mW

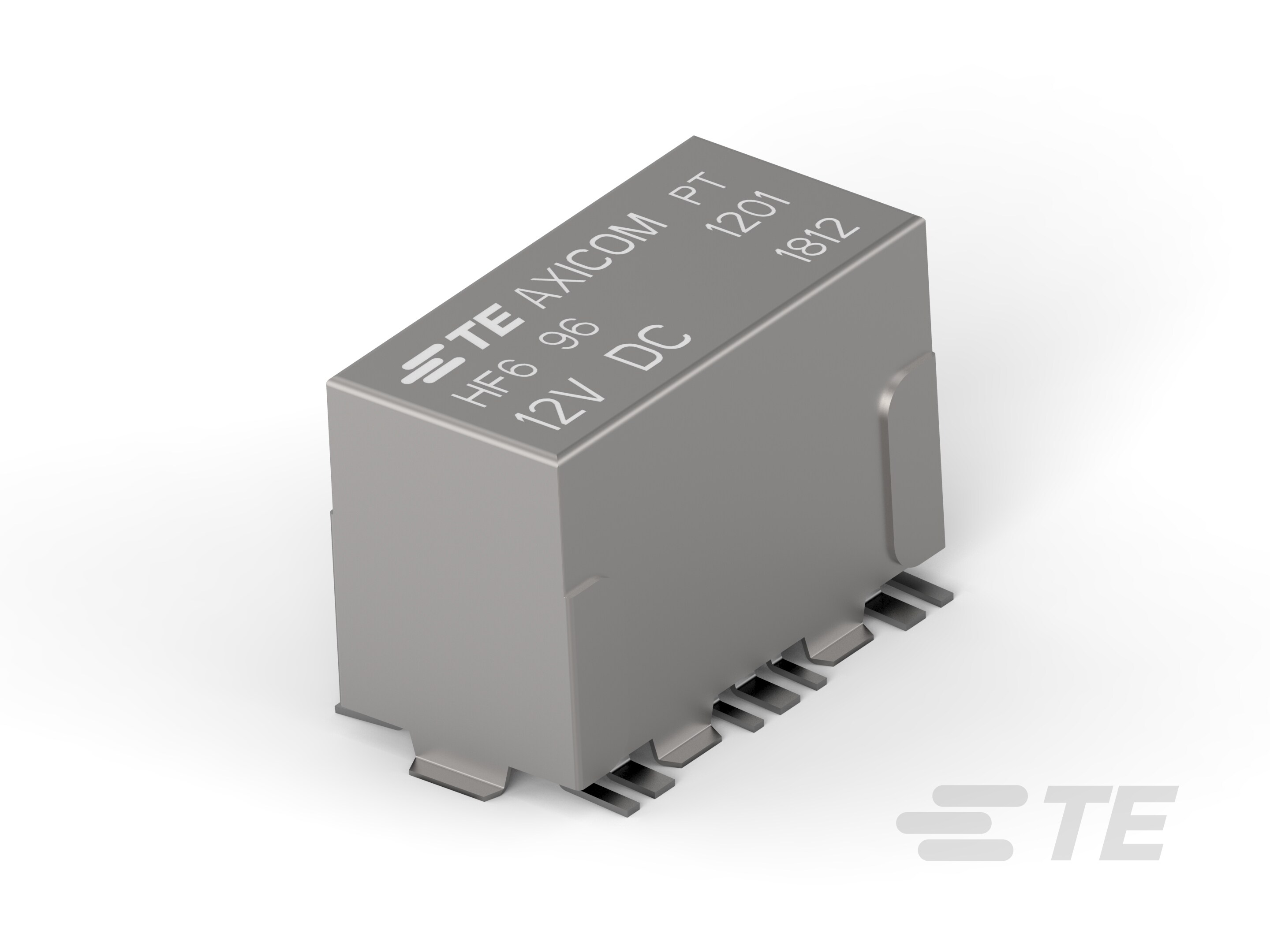

TE Connectivity AMP Connectors 1-1462052-7			2 A	5 ms	28.1 mA	5 ms	220 VDC 250 VAC	Dual Coil Latching	Surface Mount	3.75 VDC	5 VDC	Gull Wing	SPDT (1 Form C)	-55 C	85 °C
TE Connectivity AMP Connectors 1462052-3			2 A	5 ms	28.1 mA	5 ms	220 VDC 250 VAC	Non Latching	Surface Mount	3.75 VDC	5 VDC	Gull Wing	SPDT (1 Form C)	-55 C	85 °C	0.5 VDC
