KEA Series

Catalog

AC POWER ENTRY MODULES KEA PWR ENTRY MODUL 10A

Part	Connector Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Fuse Holder, Drawer	Filter Type	Current Rating - Appliance Inlet	Panel Thickness	Panel Thickness	Approval Agency	Material Flammability Rating	Mounting Type	Connector Type	Ingress Protection	Features	Termination	Termination	Termination	Voltage Rating - Appliance Inlet
SCHURTER Inc. 4301.0234	IEC 320-C14	27.5 mm	31.5 mm	Fuse Holder	Unfiltered - Commercial	10 A	8 mm	0.315 in	CCC CSA ENEC UL	UL94 V-0	Panel Mount Snap-In	Receptacle Male Blades - Module	IP40	Voltage Selector	0.189 "	4.8 mm	Quick Connect	250 VAC
SCHURTER Inc. 4301.0201	IEC 320-C14	27.5 mm	31.5 mm	Fuse Holder	Unfiltered - Commercial	10 A			CCC CSA ENEC UL	UL94 V-0	Flange Panel Mount	Receptacle Male Blades - Module	IP40	Voltage Selector	0.189 "	4.8 mm	Quick Connect	250 VAC
SCHURTER Inc. 4301.0002	IEC 320-C14	27.5 mm	31.5 mm	Fuse Holder	Unfiltered - Commercial	10 A	1.5 mm	0.059 in	CCC CSA ENEC UL	UL94 V-0	Panel Mount Snap-In	Receptacle Male Blades - Module	IP40	Voltage Selector	0.189 "	4.8 mm	Quick Connect	250 VAC

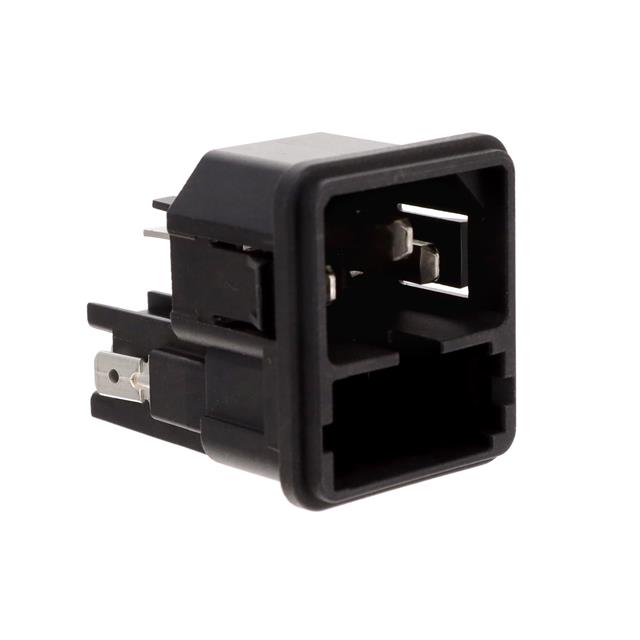

SCHURTER Inc. 4301.2003	IEC 320-C14	27.5 mm	31.5 mm	Fuse Holder	Unfiltered - Commercial	10 A	2 mm	0.079 in	CCC CSA ENEC UL	UL94 V-0	Panel Mount Snap-In	Receptacle Male Blades - Module	IP40		0.189 "	4.8 mm	Quick Connect	250 VAC

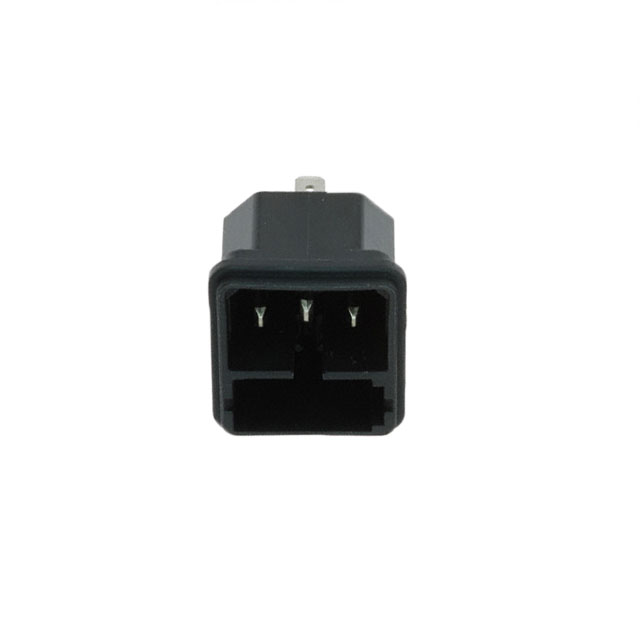

SCHURTER Inc. 4301.0502	IEC 320-C14	27.5 mm	31.5 mm	Fuse Holder	Unfiltered - Commercial	10 A	1.5 mm	0.059 in	CCC CSA ENEC UL	UL94 V-0	Panel Mount Snap-In	Receptacle Male Blades - Module	IP40		0.189 "	4.8 mm	Quick Connect	250 VAC
