UF400 Series
Manufacturer: Mechatronics Fan Group
Beta
⌘K

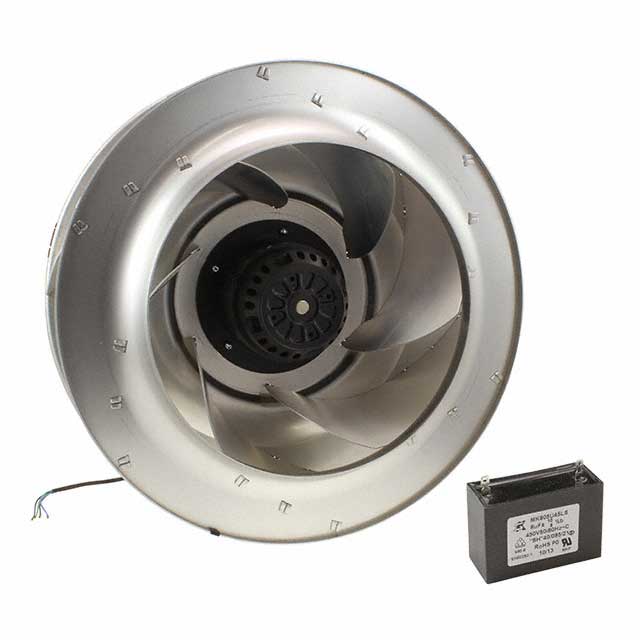

IMPELLER 400X162MM 230VAC
| Part | Material - Frame | Material - Blade [custom] | Current Rating (Amps) | Size / Dimension [diameter] | Size / Dimension | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Rated | Features | Static Pressure | Static Pressure | RPM | Width [x] | Weight | Weight | Power (Watts) | Approval Agency | Fan Type | Noise | Air Flow | Air Flow | Bearing Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mechatronics Fan Group | Aluminum | Aluminum | 1.26 A | 400 mm | Round | 4 Wire Leads | 50 °C | -20 ░C | 230 VAC | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | 1340.2 Pa | 5.38 in H2O | 1250 RPM | 162.4 mm | 12 lbs | 5.4 kg | 287 W | CE cUL TUV UL | Motorized Impellers | 73 dB(A) | 1900 CFM | 53.2 m³/min | Ball |
