M2019SS Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Electrical Life	Actuator Material	Voltage Rating - DC	Bushing Thread	Illumination	Actuator Type	Mounting Type	Voltage Rating - AC	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Termination Style	Features	Current Rating (Amps)	Switch Function	Actuator Length [x]
NKK Switches M2019SS1W02	25000 Steps	Brass Chrome Plated	30 V	1/4-40	Non-Illuminated	Standard Round	Panel Mount	125 V	SPDT	85 °C	-30 ░C	6.5 mm	Quick Connect - 0.062" (1.5mm)	Epoxy Sealed Terminals	3 A 6 A	On-Off-Mom
NKK Switches M2019SS2G13	50000 Cycles	Brass Chrome Plated	28 V	Unthreaded	Non-Illuminated	Standard Round	Through Hole	28 V	SPDT	85 °C	-30 ░C	6.5 mm	PC Pin	Epoxy Sealed Terminals	0.4 VA	On-Off-Mom

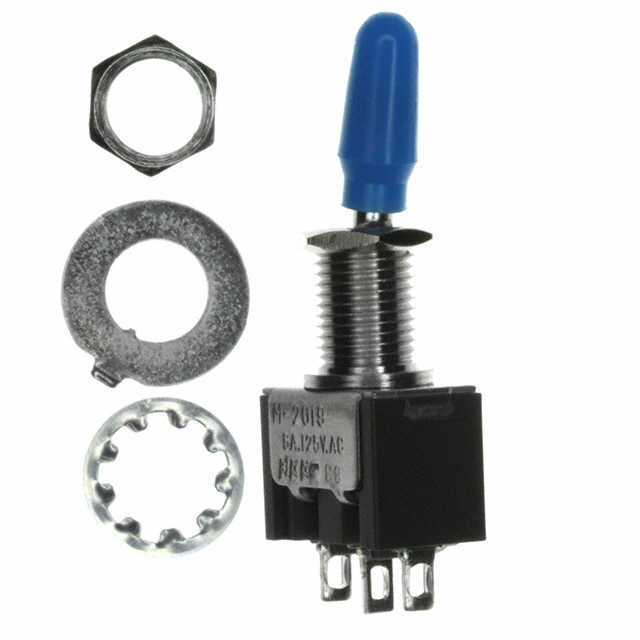

NKK Switches M2019SS1W01-BG	25000 Steps	Brass Chrome Plated	30 V	1/4-40	Non-Illuminated	Standard Round with Cap	Panel Mount	125 V	SPDT	85 °C	-30 ░C	6.5 mm	Solder Lug	Blue Cap	3 A 6 A	On-Off-Mom	13.5 mm

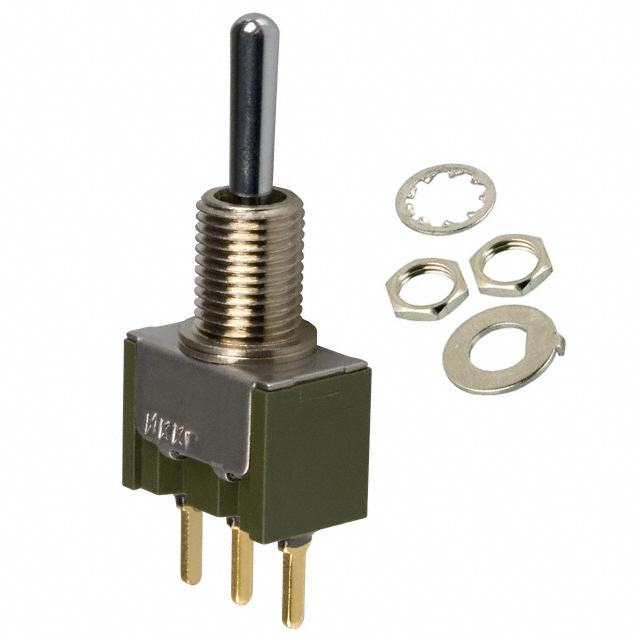

NKK Switches M2019SS1G03	50000 Cycles	Brass Chrome Plated	28 V	1/4-40	Non-Illuminated	Standard Round	Panel Mount	28 V	SPDT	85 °C	-30 ░C	6.5 mm	PC Pin	Epoxy Sealed Terminals	0.4 VA	On-Off-Mom

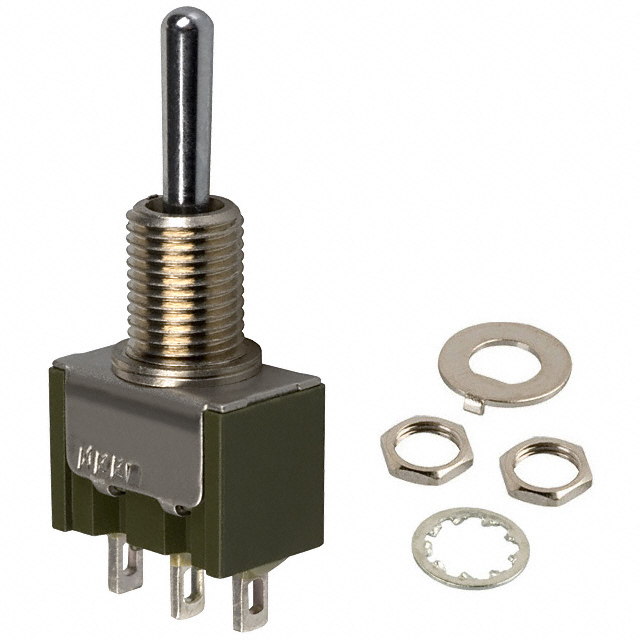

NKK Switches M2019SS1W01	25000 Steps	Brass Chrome Plated	30 V	1/4-40	Non-Illuminated	Standard Round	Panel Mount	125 V	SPDT	85 °C	-30 ░C	6.5 mm	Solder Lug	Epoxy Sealed Terminals	3 A 6 A	On-Off-Mom

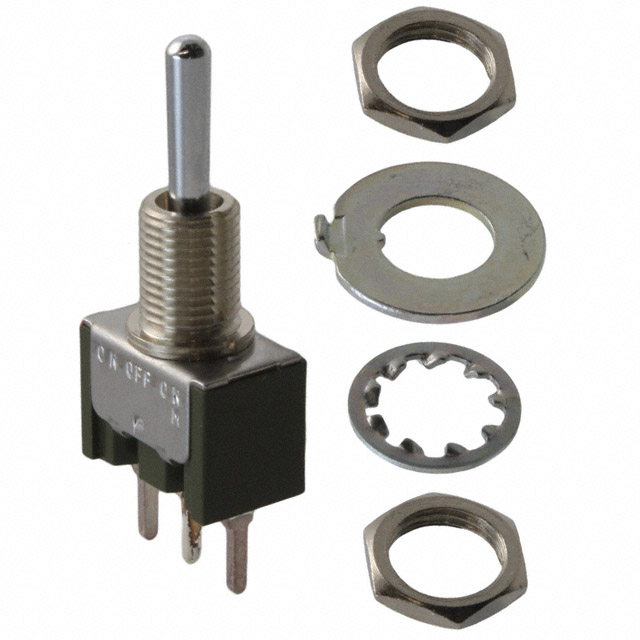

NKK Switches M2019SS1W03	25000 Steps	Brass Chrome Plated	30 V	1/4-40	Non-Illuminated	Standard Round	Panel Mount	125 V	SPDT	85 °C	-30 ░C	6.5 mm	PC Pin	Epoxy Sealed Terminals	3 A 6 A	On-Off-Mom
NKK Switches M2019SS1W01-BA	25000 Steps	Brass Chrome Plated	30 V	1/4-40	Non-Illuminated	Standard Round with Cap	Panel Mount	125 V	SPDT	85 °C	-30 ░C	6.5 mm	Solder Lug	Black Cap	4 A 6 A	On-Off-Mom
NKK Switches M2019SS1W03-BC	25000 Steps	Brass Chrome Plated	30 V	1/4-40	Non-Illuminated	Standard Round with Cap	Panel Mount	125 V	SPDT	85 °C	-30 ░C	6.5 mm	PC Pin	Red Cap	3 A 6 A	On-Off-Mom	13.5 mm
